All Products

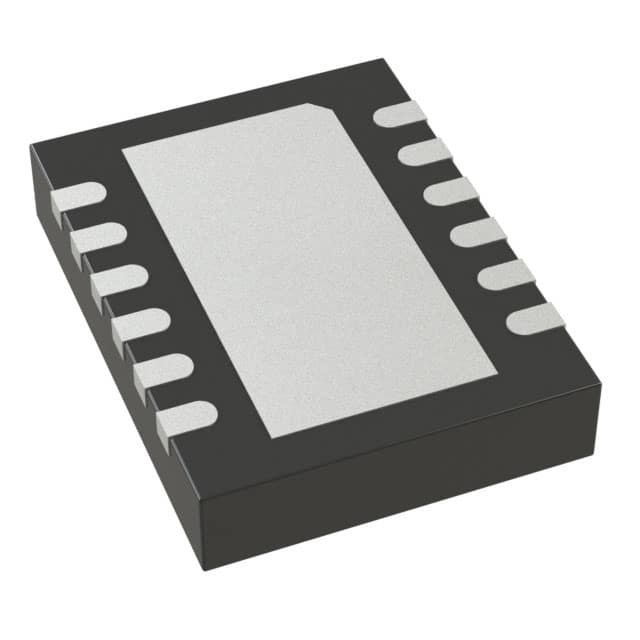

LTC3113EDHD#PBF IC REG BCK BST ADJ 3A 16DFN Analog Devices Inc.

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
Function | Step-Up/Step-Down | Output Configuration | Positive |
---|---|---|---|
Topology | Buck-Boost | Output Type | Adjustable |
Number Of Outputs | 1 | Voltage - Input (Min) | 1.8V |
Voltage - Input (Max) | 5.5V | Voltage - Output (Min/Fixed) | 1.8V |
Voltage - Output (Max) | 5.5V | Current - Output | 3A |
Frequency - Switching | 300kHz ~ 2MHz | Synchronous Rectifier | Yes |
Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
Package / Case | 16-WFDFN Exposed Pad | Supplier Device Package | 16-DFN (5x4) |
You can tick the products you need and communicate with us in the message board.
Part Number | Description | |
---|---|---|
LTC3113EDHD#PBF | IC REG BCK BST ADJ 3A 16DFN | |
LTC3115IDHD-1#PBF | IC REG BCK BST ADJ 1A/2A 16DFN | |
LTC3112IDHD#TRPBF | IC REG BCK BST ADJ 2.5A 16DFN | |
LT3506AEDHD#PBF | IC REG BUCK ADJ 1.6A DL 16DFN | |
LT3506IDHD#PBF | IC REG BUCK ADJ 1.6A DL 16DFN | |
LT3506AEDHD#TRPBF | IC REG BUCK ADJ 1.6A DL 16DFN | |
LTC3113IDHD#TRPBF | IC REG BCK BST ADJ 3A 16DFN | |
LTC3113EDHD#TRPBF | IC REG BCK BST ADJ 3A 16DFN | |
LTC3115EDHD-1#TRPBF | IC REG BCK BST ADJ 1A/2A 16DFN | |
LTC3115IDHD-1#TRPBF | IC REG BCK BST ADJ 1A/2A 16DFN | |
LTC3113IDHD#PBF | IC REG BCK BST ADJ 3A 16DFN | |
LT3506EDHD#PBF | IC REG BUCK ADJ 1.6A DL 16DFN | |
LTC3112EDHD#TRPBF | IC REG BCK BST ADJ 2.5A 16DFN | |
LTC3112IDHD#PBF | IC REG BCK BST ADJ 2.5A 16DFN | |
LTC3112EDHD#PBF | IC REG BCK BST ADJ 2.5A 16DFN | |
LTC3115IDHD-2#PBF | IC REG BCK BST ADJ 0.8A/2A 16DFN | |
LTC3112HDHD#PBF | IC REG BCK BST ADJ 2.5A 16DFN | |
LT3506AIDHD#PBF | IC REG BUCK ADJ 1.6A DL 16DFN | |
LTC3115IDHD-1#WPBF | 40V, 2A SYNC BUCK-BOOST DC/DC CO | |
LTC3115EDHD-1#PBF | IC REG BCK BST ADJ 1A/2A 16DFN | |
LTC3115EDHD-2#PBF | IC REG BCK BST ADJ 0.8A/2A 16DFN | |
LTC3112MPDHD#PBF | IC REG BCK BST ADJ 2.5A 16DFN | |
LT3506EDHD#TRPBF | IC REG BUCK ADJ 1.6A DL 16DFN | |
LT3506AIDHD#TRPBF | IC REG BUCK ADJ 1.6A DL 16DFN | |
LT3506IDHD#TRPBF | IC REG BUCK ADJ 1.6A DL 16DFN | |
LTC3112HDHD#TRPBF | IC REG BCK BST ADJ 2.5A 16DFN | |
LTC3115EDHD-2#TRPBF | IC REG BCK BST ADJ 0.8A/2A 16DFN | |
LTC3115IDHD-2#TRPBF | IC REG BCK BST ADJ 0.8A/2A 16DFN | |
LTC3115IDHD-1#WTRPBF | 40V, 2A SYNC BUCK-BOOST DC/DC CO | |
LTC3112MPDHD#TRPBF | IC REG BCK BST ADJ 2.5A 16DFN |
Product Description
Product Details
DescripTion
The LTC®3115-1 is a high voltage monolithic synchronous buck-boost DC/DC converter.Its wide2.7Vto40Vinput and output voltage ranges make it well suited to a wide variety of automotive and industrial applications. A proprietary low noise switching algorithm optimizes efficiency with input voltages that are above, below or even equal to the output voltage and ensures seamless transitions betweenoperational modes.
FeaTures
● Wide VIN Range: 2.7V to 40V● Wide VOUT Range: 2.7V to 40V
● 1A Output Current for VIN ≥ 3.6V, VOUT = 5V
● 2A Output Current in Step-Down Operation for VIN ≥ 6V
● Programmable Frequency: 100kHz to 2MHz
● Synchronizable Up to 2MHz with an External Clock
● Up to 95% Efficiency
● 30µA No-Load Quiescent Current in Burst Mode® Operation
● Ultralow Noise Buck-Boost PWM
● Internal Soft-Start
● 3µA Supply Current in Shutdown
● Programmable Input Undervoltage Lockout
● Small 4mm × 5mm × 0.75mm DFN Package
● Thermally Enhanced 20-Lead TSSOP Package
applicaTions
● 24V/28V Industrial Applications● Automotive Power Systems
● Telecom, Servers and Networking Equipment
● FireWire Regulator
● Multiple Power Source Supplies
Specifications
Attribute | Attribute Value |
---|---|
Manufacturer | Analog Devices / Linear Technology |
Product Category | DC Switching Regulators |
Series | - |
Packaging | Tube Alternate Packaging |
Package-Case | 16-WFDFN Exposed Pad |
Operating-Temperature | -40°C ~ 125°C (TJ) |
Mounting-Type | Surface Mount |
Output-Type | Adjustable |
Function | Step-Up/Step-Down |
Supplier-Device-Package | 16-DFN (5x4) |
Number-of-Outputs | 1 Output |
Topology | Buck-Boost |
Frequency-Switching | 300kHz ~ 2MHz |
Current-Output | 3A |
Output-Configuration | Positive |
Output Voltage | 1.8V |
Voltage-Output-Max | 5.5V |
Synchronous-Rectifier | Yes |
Voltage-Input-Min | 1.8V |
Voltage-Input-Max | 5.5V |
Descriptions
LTC3113 - 3A Low Noise Buck-Boost DC/DC Converter
Recommended Products
