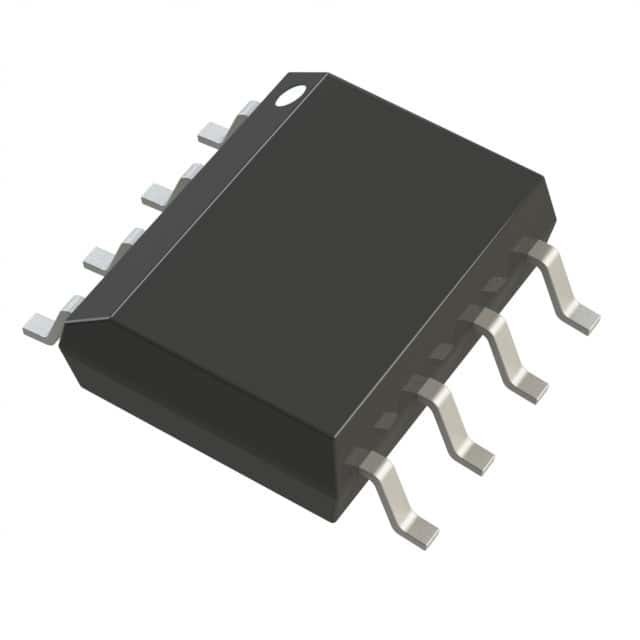

ADM660ARZ-REEL IC REG CHARGE PUMP INV 8SOIC Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | ADM660ARZ-REEL |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Ratiometric | Output Configuration | Positive Or Negative |
|---|---|---|---|
| Topology | Charge Pump | Output Type | Fixed |
| Number Of Outputs | 1 | Voltage - Input (Min) | 1.5V |
| Voltage - Input (Max) | 7V | Voltage - Output (Min/Fixed) | -Vin, 2Vin |
| Voltage - Output (Max) | - | Current - Output | 100mA |
| Frequency - Switching | 25kHz, 120kHz | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Supplier Device Package | 8-SOIC |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| ADM660ARZ-REEL | IC REG CHARGE PUMP INV 8SOIC | |
| ADM660ARZ-REEL7 | IC REG CHARGE PUMP INV 8SOIC | |
| ADM8660ARZ-REEL | IC REG CHARGE PUMP INV 8SOIC | |
| ADM8660ARZ | IC REG CHARGE PUMP INV 8SOIC | |
| ADP1111ARZ-3.3 | IC REG BUCK BST 3.3V 400MA 8SOIC | |
| ADM660ARZ | IC REG CHARGE PUMP INV 8SOIC | |
| ADP1111ARZ | IC REG BUCK BST ADJ 400MA 8SOIC | |
| ADP1111ARZ-5 | IC REG BUCK BST 5V 400MA 8SOIC | |
| ADP1111ARZ-REEL | IC REG BUCK BST ADJ 400MA 8SOIC | |
| ADM660AR-REEL | IC MULTI CONFIG ADJ .1A 8SOIC | |
| ADM660AR-REEL7 | IC MULTI CONFIG ADJ .1A 8SOIC | |
| ADM8660AR | IC MULTI CONFIG ADJ .1A 8SOIC | |
| ADP1111AR-12 | IC MULTI CONFIG 12V .2A 8SOIC | |
| ADP1111AR-3.3 | IC MULTI CONFIG 3.3V .2A 8SOIC | |
| ADP1111AR-5 | IC MULTI CONFIG 5V .2A 8SOIC | |
| ADP1111AR-5-REEL | IC MULTI CONFIG 5V .2A 8SOIC | |
| ADP3050AR | IC REG STEP DWN ADJ VLT 1A 8SOIC | |
| ADP3050AR-3.3 | IC REG BUCK 3.3V 1A 8SOIC | |
| ADP3050AR-REEL7 | IC REG STEP DWN ADJ VLT 1A 8SOIC | |
| ADP1111ARZ-12-REEL | IC MULTI CONFIG 12V .2A 8SOIC | |
| ADP1111ARZ-12 | IC MULTI CONFIG 12V .2A 8SOIC | |
| ADP3050ARZ-5 | IC REG MULTI CONFG 5V 1A 8SOIC | |
| ADP3050ARZ-R7 | IC REG MULTI CONFG ADJ 1A 8SOIC | |
| ADP3050ARZ-3.3 | IC REG MULTI CONFG 3.3V 1A 8SOIC | |
| ADP3050ARZ-3.3-RL7 | IC REG MULT CONFIG 3.3V 1A 8SOIC | |
| ADP3050ARZ-5-REEL7 | IC REG MULTI CONFIG 5V 1A 8SOIC | |
| ADP3050AR-3.3-RL7 | IC REG BUCK 3.3V 1A 8SOIC | |
| ADP3050ARZ-RL | IC REG MULTI CONFIG ADJ 1A 8SOIC | |
| ADP3050ARZ-3.3-RL | IC REG MULT CONFIG 3.3V 1A 8SOIC | |
| ADP3050ARZ-5-REEL | IC REG MULTI CONFIG 5V 1A 8SOIC | |
| ADP1111ARZ-5-REEL | IC REG BCK BST INV 5V 0.2A 8SOIC |
Product Description
Product Details
GENERAL DESCRIPTION
The ADM660/ADM8660 is a charge-pump voltage converter that can be used to either invert the input supply voltage giving VOUT = –VIN or double it (ADM660 only) giving VOUT = 2 VIN.Input voltages ranging from +1.5 V to +7 V can be inverted into a negative –1.5 V to –7 V output supply. This inverting scheme is ideal for generating a negative rail in single power supply systems.
FEATURES
ADM660: Inverts or Doubles Input Supply VoltageADM8660: Inverts Input Supply Voltage
100 mA Output Current
Shutdown Function (ADM8660)
2.2 F or 10 F Capacitors
0.3 V Drop at 30 mA Load
+1.5 V to +7 V Supply
Low Power CMOS: 600 A Quiescent Current
Selectable Charge Pump Frequency (25 kHz/120 kHz)
Pin Compatible Upgrade for MAX660, MAX665, ICL7660
Available in 16-Lead TSSOP Package
APPLICATIONS
Handheld Instruments
Portable Computers
Remote Data Acquisition
Op Amp Power Supplies
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | DC Switching Regulators |
| Series | ADM660 |
| Type | Charge Pumps |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.019048 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Function | Ratiometric |
| Supplier-Device-Package | 8-SOIC |
| Number-of-Outputs | 1 Output |
| Topology | Charge Pump |
| Frequency-Switching | 25kHz, 120kHz |
| Current-Output | 100mA |
| Output-Configuration | Positive or Negative |
| Output Voltage | -Vin, 2Vin |
| Voltage-Output-Max | - |
| Synchronous-Rectifier | No |
| Voltage-Input-Min | 1.5V |
| Voltage-Input-Max | 7V |
| Shutdown | No Shutdown |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | - 1.5 V to - 7 V 5 V to 14 V |
| Operating-Supply-Current | 4.5 mA |
| Input-Voltage | 1.5 V to 7 V |
| Output-Current | 100 mA |
| Switching-Frequency | 120 kHz |
| Package-Case | SOIC-8 |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| TC7660HCOA Power Circuits |
SWITCHED CAPACITOR REGULATOR, 120 kHz SWITCHING FREQ-MAX, PDSO8, SOIC-8 | Microchip Technology Inc | ADM660ARZ-REEL vs TC7660HCOA |
| ADM660ARZ Power Circuits |
CMOS Switched-Capacitor Voltage Converter | Analog Devices Inc | ADM660ARZ-REEL vs ADM660ARZ |
| TC7660HEOA Power Circuits |
SWITCHED CAPACITOR REGULATOR, 120 kHz SWITCHING FREQ-MAX, PDSO8, SOIC-8 | Microchip Technology Inc | ADM660ARZ-REEL vs TC7660HEOA |
| ADM660AR-REEL Power Circuits |
SWITCHED CAPACITOR CONVERTER, 120 kHz SWITCHING FREQ-MAX, PDSO8, MS-012AA, SOIC-8 | Rochester Electronics LLC | ADM660ARZ-REEL vs ADM660AR-REEL |
| ADM660AR Power Circuits |
IC SWITCHED CAPACITOR CONVERTER, 120 kHz SWITCHING FREQ-MAX, PDSO8, MS-012AA, SOIC-8, Switching Regulator or Controller | Analog Devices Inc | ADM660ARZ-REEL vs ADM660AR |
| ADM660ARZ-REEL Power Circuits |
CMOS Switched-Capacitor Voltage Converter | Analog Devices Inc | ADM660ARZ-REEL vs ADM660ARZ-REEL |
Descriptions
Charge Pump Switching Regulator IC Positive or Negative Fixed -Vin, 2Vin 1 Output 100mA 8-SOIC (0.154", 3.90mm Width)
Charge Pump INV/STPUP -1.5V to -7V/5V to 14V 100mA 8-Pin SOIC N T/R
Voltage Regulators - Switching Regulators CHARGE PUMPED INVERTER I.C.
