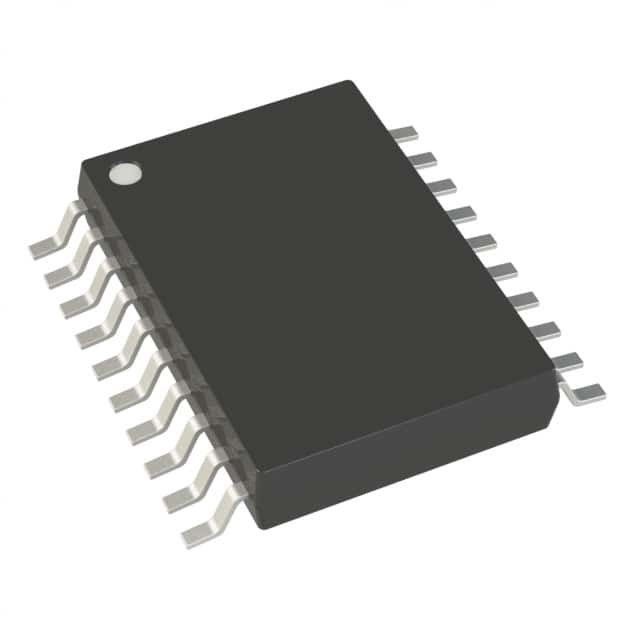

LT3579EFE#PBF IC REG MULT CONFG ADJ 6A 20TSSOP Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | LT3579EFE#PBF |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Up, Step-Up/Step-Down | Output Configuration | Positive Or Negative |
|---|---|---|---|
| Topology | Boost, Charge Pump, Cuk, Flyback, SEPIC | Output Type | Adjustable |
| Number Of Outputs | 1 | Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 16V | Voltage - Output (Min/Fixed) | 1.215V |
| Voltage - Output (Max) | 42V (Switch) | Current - Output | 6A (Switch) |
| Frequency - Switching | 200kHz ~ 2.5MHz | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | Supplier Device Package | 20-TSSOP-EP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LT3579EFE#PBF | IC REG MULT CONFG ADJ 6A 20TSSOP | |
| LT8471EFE#PBF | IC REG MULT CONFG ADJ DL 20TSSOP | |
| LT8471IFE#PBF | IC REG MULT CONFG ADJ DL 20TSSOP | |
| LT8494EFE#PBF | IC REG MULT CONFG ADJ 2A 20TSSOP | |
| LT3579EFE-1#PBF | IC REG MULT CONFG ADJ 6A 20TSSOP | |
| LT3579IFE#PBF | IC REG MULT CONFG ADJ 6A 20TSSOP | |
| LT8471HFE#PBF | IC REG MULT CONFG ADJ DL 20TSSOP | |
| LTC3612EFE#TRPBF | IC REG BUCK ADJ 3A 20TSSOP | |
| LT3579EFE#TRPBF | IC REG MULT CONFG ADJ 6A 20TSSOP | |
| LT8471EFE#TRPBF | IC REG MULT CONFG ADJ DL 20TSSOP | |
| LT8495EFE#PBF | IC REG MULTI CONFG ADJ 20TSSOP | |
| LT8494IFE#PBF | IC REG MULT CONFG ADJ 2A 20TSSOP | |
| LT8471IFE#TRPBF | IC REG MULT CONFG ADJ DL 20TSSOP | |
| LTC3612IFE#PBF | IC REG BUCK ADJ 3A 20TSSOP | |
| LTC3612EFE#PBF | IC REG BUCK ADJ 3A 20TSSOP | |
| LT8495IFE#PBF | IC REG MULTI CONFG ADJ 20TSSOP | |
| LT8494HFE#PBF | IC REG MULT CONFG ADJ 2A 20TSSOP | |
| LT8495HFE#PBF | IC REG MULTI CONFG ADJ 20TSSOP | |
| LT8494EFE#TRPBF | IC REG MULT CONFG ADJ 2A 20TSSOP | |
| LT8495EFE#TRPBF | IC REG MULTI CONFG ADJ 20TSSOP | |
| LT8494IFE#TRPBF | IC REG MULT CONFG ADJ 2A 20TSSOP | |
| LT8495IFE#TRPBF | IC REG MULTI CONFG ADJ 20TSSOP | |
| LT8494HFE#TRPBF | IC REG MULT CONFG ADJ 2A 20TSSOP | |
| LT3579EFE-1#TRPBF | IC REG MULT CONFG ADJ 6A 20TSSOP | |
| LT8495HFE#TRPBF | IC REG MULTI CONFG ADJ 20TSSOP | |
| LTC3612IFE#TRPBF | IC REG BUCK ADJ 3A 20TSSOP | |
| LT3579IFE#TRPBF | IC REG MULT CONFG ADJ 6A 20TSSOP | |
| LT3579IFE-1#TRPBF | IC REG MULT CONFG ADJ 6A 20TSSOP | |
| LTC3612HFE#TRPBF | IC REG BUCK ADJ 3A 20TSSOP | |
| LT8471HFE#TRPBF | IC REG MULT CONFG ADJ DL 20TSSOP | |
| LT3579IFE-1#PBF | IC REG MULT CONFG ADJ 6A 20TSSOP | |
| LTC3612HFE#PBF | IC REG BUCK ADJ 3A 20TSSOP | |
| LTC3612MPFE#TRPBF | IC REG BUCK ADJ 3A 20TSSOP | |
| LTC3612MPFE#PBF | IC REG BUCK ADJ 3A 20TSSOP |
Product Description
Product Details
DESCRIPTION
The LT®3579 is a PWM DC/DC converter with built-in fault protection features to aid in protecting against output shorts, input/output overvoltage, and overtemperature conditions. The part consists of a 42V master switch, and a 42V slave switch that can be tied together for a total current limit of 6A.
FEATURES
■ 6A, 42V Combined Power Switch■ Output Short Circuit Protection
■ Wide Input Range: 2.5V to 16V Operating, 40V Maximum Transient
■ LT3579-1: Dual-Phase Capable
■ Master/Slave (3.4A/2.6A) Switch Design
■ User Configurable Undervoltage Lockout
■ Easily Configurable as a Boost, SEPIC, Inverting, or Flyback Converter
■ Low VCESAT Switch: 250mV at 5.5A (Typical)
■ Can Be Synchronized to External Clock
■ Can Synchronize other Switching Regulators
■ High Gain SHDN Pin Accepts Slowly Varying Input Signals
■ 20-Lead TSSOP and 20-Pin 4mm × 5mm QFN Packages
APPLICATIONS
■ Local Power Supply■ Vacuum Fluorescent Display (VFD) Bias Supplies
■ TFT-LCD Bias Supplies
■ Automotive Engine Control Unit (ECU) Power
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices / Linear Technology |
| Product Category | DC Switching Regulators |
| Series | - |
| Packaging | Tube Alternate Packaging |
| Package-Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Operating-Temperature | -40°C ~ 125°C (TJ) |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Function | Step-Up, Step-Up/Step-Down |
| Supplier-Device-Package | 20-TSSOP-EP |
| Number-of-Outputs | 1 Output |
| Topology | Boost, Charge Pump, Cuk, Flyback, SEPIC |
| Frequency-Switching | 200kHz ~ 2.5MHz |
| Current-Output | 6A (Switch) |
| Output-Configuration | Positive or Negative |
| Output Voltage | 1.215V |
| Voltage-Output-Max | 42V (Switch) |
| Synchronous-Rectifier | No |
| Voltage-Input-Min | 2.5V |
| Voltage-Input-Max | 16V |
Descriptions
Boost, Charge Pump, Cuk, Flyback, SEPIC Switching Regulator IC Positive or Negative Adjustable 1.215V 1 Output 6A (Switch) 20-TSSOP (0.173", 4.40mm Width) Exposed Pad
LT3579 - 6A Boost/Inverting DC/DC Converter with Fault Protection
