LT3495BEDDB#TRMPBF IC REG BST SEPIC ADJ 550MA 10DFN Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | LT3495BEDDB#TRMPBF |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Up, Step-Up/Step-Down | Output Configuration | Positive |
|---|---|---|---|
| Topology | Boost, SEPIC | Output Type | Adjustable |
| Number Of Outputs | 1 | Voltage - Input (Min) | 2.5V |
| Voltage - Input (Max) | 16V | Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | 40V (Switch) | Current - Output | 550mA (Switch) |
| Frequency - Switching | - | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 125°C (TJ) | Mounting Type | Surface Mount |

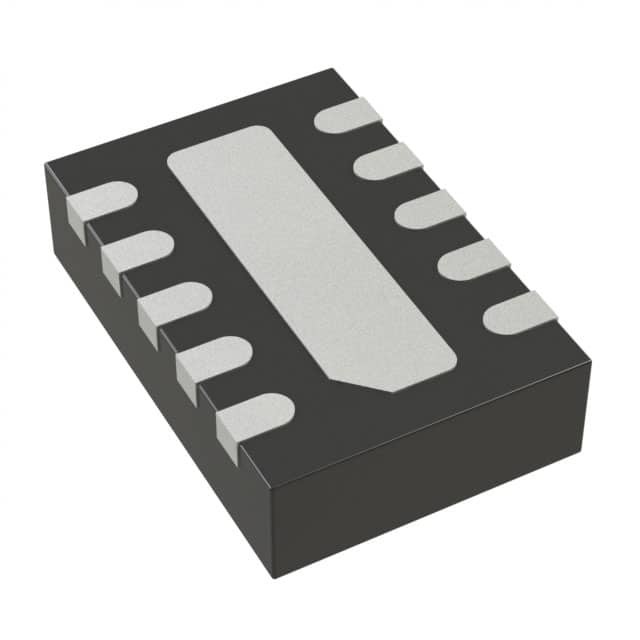

| Package / Case | 10-WFDFN Exposed Pad | Supplier Device Package | 10-DFN (3x2) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LT3495BEDDB#TRMPBF | IC REG BST SEPIC ADJ 550MA 10DFN | |
| LT3495BEDDB-1#TRMPBF | IC REG BST SEPIC ADJ 275MA 10DFN | |
| LT3970IDDB#TRMPBF | IC REG BUCK ADJ 535MA 10DFN | |
| LT8618IDDB-3.3#TRMPBF | HIGH EFFICIENCY 60V/100MA SYNCHR | |
| LT8618EDDB#TRPBF | HIGH EFFICIENCY 60V/100MA SYNCHR | |
| LT3495BEDDB-1#TRPBF | IC REG BST SEPIC ADJ 275MA 10DFN | |
| LT8618IDDB#TRMPBF | HIGH EFFICIENCY 60V/100MA SYNCHR | |
| LT8618JDDB#TRMPBF | IC REG BUCK ADJ 100MA 10DFN | |
| LT3970IDDB-5#TRPBF | IC REG BUCK 5V 535MA 10DFN | |
| LT8618EDDB-3.3#TRPBF | HIGH EFFICIENCY 60V/100MA SYNCHR | |
| LT8618EDDB-3.3#TRMPBF | HIGH EFFICIENCY 60V/100MA SYNCHR | |
| LT8618EDDB#TRMPBF | HIGH EFFICIENCY 60V/100MA SYNCHR | |
| LT3495EDDB-1#TRMPBF | IC REG BST SEPIC ADJ 275MA 10DFN | |
| LT3495EDDB#TRPBF | IC REG BST SEPIC ADJ 550MA 10DFN | |
| LT3495EDDB#TRMPBF | IC REG BST SEPIC ADJ 550MA 10DFN | |
| LT8618JDDB-3.3#TRMPBF | IC REG BUCK 3.3V 100MA 10DFN | |
| LT3970IDDB-3.3#TRMPBF | IC REG BUCK 3.3V 535MA 10DFN | |
| LT3970IDDB-5#TRMPBF | IC REG BUCK 5V 535MA 10DFN | |
| LT8618EDDB#WTRMPBF | HIGH EFFICIENCY 60V/100MA SYNCHR | |
| LT3495BEDDB#TRPBF | IC REG BST SEPIC ADJ 550MA 10DFN | |
| LT3970EDDB-3.3#TRMPBF | IC REG BUCK 3.3V 535MA 10DFN | |
| LT3970EDDB#TRMPBF | IC REG BUCK ADJ 535MA 10DFN | |
| LT3495EDDB-1#TRPBF | IC REG BST SEPIC ADJ 275MA 10DFN | |
| LT8618IDDB#TRPBF | HIGH EFFICIENCY 60V/100MA SYNCHR | |
| LT8618IDDB-3.3#TRPBF | HIGH EFFICIENCY 60V/100MA SYNCHR | |
| LT8618EDDB#WTRPBF | HIGH EFFICIENCY 60V/100MA SYNCHR | |
| LT8618JDDB-3.3#TRPBF | IC REG BUCK 3.3V 100MA 10DFN | |
| LT8618JDDB#TRPBF | IC REG BUCK ADJ 100MA 10DFN | |
| LT3970EDDB-3.3#TRPBF | IC REG BUCK 3.3V 535MA 10DFN | |
| LT3970EDDB-5#TRPBF | IC REG BUCK 5V 535MA 10DFN | |
| LT3970EDDB-3.42#TRPBF | IC REG BUCK 3.42V 535MA 10DFN | |
| LT3970EDDB#TRPBF | IC REG BUCK ADJ 535MA 10DFN | |
| LT3970IDDB#TRPBF | IC REG BUCK ADJ 535MA 10DFN | |
| LT3970IDDB-3.3#TRPBF | IC REG BUCK 3.3V 535MA 10DFN | |
| LT3970EDDB-3.42#TRMPBF | IC REG BUCK 3.42V 535MA 10DFN | |
| LT3970EDDB-5#TRMPBF | IC REG BUCK 5V 535MA 10DFN |
Product Description
Product Details
DESCRIPTION
The LT®3495/LT3495B/LT3495-1/LT3495B-1 are low noise boost converters with integrated power switch, feedback resistor and output disconnect circuitry. The parts control power delivery by varying both the peak inductor current and switch off-time. This novel* control scheme results in low output voltage ripple as well as high efficiency over a wide load range. For the LT3495/LT3495-1, the off-time of the switch is not allowed to exceed a fixed level, guaranteeing the switching frequency stays above the audio band for the entire load range.
FEATURES
■ Low Quiescent Current60µA in Active Mode
0.1µA in Shutdown Mode
■ Low Noise Control Scheme (Switching Frequency
Always Stays Above Audible Range for LT3495/-1)
■ Integrated Power NPN:
650mA Current Limit (LT3495/B)
350mA Current Limit (LT3495-1/B-1)
■ Integrated Output Disconnect
■ Integrated Output Dimming
■ Wide input range: 2.5V to 16V
■ Wide output range: Up to 40V
■ Integrated feedback resistor
■ Tiny 10-Lead 3mm × 2mm DFN Package
APPLICATIONS
■ OLED Power■ Low Noise Power
■ MP3 Player
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices / Linear Technology |
| Product Category | DC Switching Regulators |
| Series | - |
| Packaging | Alternate Packaging |
| Package-Case | 10-WFDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 125°C (TJ) |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Function | Step-Up, Step-Up/Step-Down |
| Supplier-Device-Package | 10-DFN (3x2) |
| Number-of-Outputs | 1 Output |
| Topology | Boost, SEPIC |
| Frequency-Switching | - |
| Current-Output | 550mA (Switch) |
| Output-Configuration | Positive |
| Output Voltage | 2.5V |
| Voltage-Output-Max | 40V (Switch) |
| Synchronous-Rectifier | No |
| Voltage-Input-Min | 2.5V |
| Voltage-Input-Max | 16V |
Descriptions
Boost, SEPIC Switching Regulator IC Positive Adjustable 2.5V 1 Output 550mA (Switch) 10-WFDFN Exposed Pad
LT3495 - 650mA Micropower Low Noise Boost Converter with Output Disconnect
