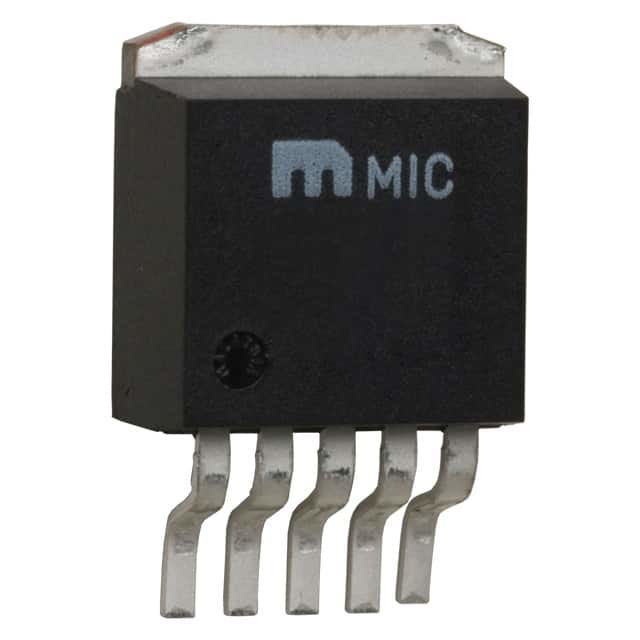

MIC4575WU IC REG BUCK BST ADJ 1.7A TO263-5 Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | MIC4575WU |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Down, Step-Up/Step-Down | Output Configuration | Positive |
|---|---|---|---|
| Topology | Buck, Buck-Boost | Output Type | Adjustable |
| Number Of Outputs | 1 | Voltage - Input (Min) | 4V |
| Voltage - Input (Max) | 24V | Voltage - Output (Min/Fixed) | 1.23V |
| Voltage - Output (Max) | 20V | Current - Output | 1.7A (Switch) |
| Frequency - Switching | 200kHz | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | TO-263-6, D²Pak (5 Leads + Tab), TO-263BA | Supplier Device Package | TO-263-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MIC4575WU | IC REG BUCK BST ADJ 1.7A TO263-5 | |
| LM2575-5.0WU | IC REG BUCK 5V 1A TO263-5 | |
| LM2576-12WU | IC REG BUCK 12V 3A TO263-5 | |
| LM2575-12WU-TR | IC REG BUCK 12V 1A TO263-5 | |
| LM2576-12WU-TR | IC REG BUCK 12V 3A TO263-5 | |
| LM2575-3.3WU-TR | IC REG BUCK 3.3V 1A TO263-5 | |
| MIC4576WU-TR | IC REG BUCK ADJ 3A TO263-5 | |
| LM2575WU | IC REG BUCK ADJ 1A TO263-5 | |
| MIC4576-3.3WU-TR | IC REG BUCK 3.3V 3A TO263-5 | |
| MIC4576-5.0WU-TR | IC REG BUCK 5V 3A TO263-5 | |
| MIC2171WU-TR | IC REG MULTI CONFG ADJ TO263-5 | |
| LM2576WU-TR | IC REG BUCK ADJ 3A TO263-5 | |
| LM2576WU | IC REG BUCK ADJ 3A TO263-5 | |
| MIC4576-5.0WU | IC REG BUCK 5V 3A TO263-5 | |
| LM2576-5.0WU-TR | IC REG BUCK 5V 3A TO263-5 | |
| LM2576-3.3WU-TR | IC REG BUCK 3.3V 3A TO263-5 | |
| LM2576-3.3WU | IC REG BUCK 3.3V 3A TO263-5 | |
| LM2576-5.0WU | IC REG BUCK 5V 3A TO263-5 | |
| MIC4575-5.0WU-TR | IC REG BUCK BST 5V 1.7A TO263-5 | |
| MIC4575WU-TR | IC REG BUCK BST ADJ 1.7A TO263-5 | |
| MIC4575-3.3WU | IC REG BUCK BST 3.3V 1.7A TO263 | |
| MIC4576-3.3WU | IC REG BUCK 3.3V 3A TO263-5 | |
| MIC4576WU | IC REG BUCK ADJ 3A TO263-5 | |
| MIC2171WU | IC REG MULTI CONFG ADJ TO263-5 | |
| MIC4575-5.0WU | IC REG BUCK BST 5V 1.7A TO263-5 | |
| LM2575-5.0WU-TR | IC REG BUCK 5V 1A TO263-5 | |
| LM2575-12WU | IC REG BUCK 12V 1A TO263-5 | |
| LM2575WU-TR | IC REG BUCK ADJ 1A TO263-5 | |
| LM2575-3.3WU | IC REG BUCK 3.3V 1A TO263-5 | |
| MIC4575-3.3WU-TR | IC REG BUCK BST 3.3V 1.7A TO263 | |
| MIC2171BU | IC REG MULTI CONFG ADJ TO263-5 | |
| MIC4575-5.0BU | IC REG BUCK BST 5V 1.7A TO263-5 | |
| MIC4575BU | IC REG BUCK BST ADJ 1.7A TO263-5 | |
| MIC4576BU | IC REG BUCK ADJ 3A TO263-5 | |
| MIC4576BU TR | IC REG BUCK ADJ 3A TO263-5 | |
| LM2575-12BU | IC REG BUCK 12V 1A TO263-5 | |
| LM2575-12BU TR | IC REG BUCK 12V 1A TO263-5 | |
| LM2575-3.3BU | IC REG BUCK 3.3V 1A TO263-5 | |
| LM2575-3.3BU TR | IC REG BUCK 3.3V 1A TO263-5 | |
| LM2575-5.0BU | IC REG BUCK 5V 1A TO263-5 | |
| LM2575-5.0BU TR | IC REG BUCK 5V 1A TO263-5 | |
| LM2575BU | IC REG BUCK ADJ 1A TO263-5 | |
| LM2575BU TR | IC REG BUCK ADJ 1A TO263-5 | |
| LM2576-12BU | IC REG BUCK 12V 3A TO263-5 | |
| LM2576-12BU TR | IC REG BUCK 12V 3A TO263-5 | |
| LM2576-3.3BU | IC REG BUCK 3.3V 3A TO263-5 | |
| LM2576-3.3BU TR | IC REG BUCK 3.3V 3A TO263-5 | |
| LM2576-5.0BU | IC REG BUCK 5V 3A TO263-5 | |
| LM2576-5.0BU TR | IC REG BUCK 5V 3A TO263-5 | |
| LM2576BU | IC REG BUCK ADJ 3A TO263-5 | |
| LM2576BU TR | IC REG BUCK ADJ 3A TO263-5 | |
| MIC2171BU TR | IC REG MULTI CONFG ADJ TO263-5 | |
| MIC4575-3.3BU | IC REG BUCK BST 3.3V 1.7A TO263 | |
| MIC4575-3.3BU TR | IC REG BUCK BST 3.3V 1.7A TO263 | |
| MIC4575-5.0BU TR | IC REG BUCK BST 5V 1.7A TO263-5 | |
| MIC4575BU TR | IC REG BUCK BST ADJ 1.7A TO263-5 |
Product Description
Product Details
General Description
The MIC4575 is a series of easy to use fixed and adjustable BiCMOS step-down (buck) switch-mode voltage regulators. The 200kHz MIC4575 duplicates the pinout and function of the 52kHz LM2575. The higher switching frequency may allow up to a 2:1 reduction in output filter inductor size.The MIC4575 is available in 3.3V, and 5V fixed output versions or a 1.23V to 20V adjustable output version. Both versions are capable of driving a 1A load with excellent line and load regulation.
Features
• Fixed 200kHz operation• 3.3V, 5V, and adjustable output versions
• Voltage over specified line and load conditions:
• Fixed version: ±3% max. output voltage
• Adjustable version: ±2% max. feedback voltage
• Guaranteed 1A switch current
• Wide 4V to 24V input voltage range
• Wide 1.23V to 20V output voltage range
• Requires minimum external components
• < 200µA typical shutdown mode
• 75% efficiency (adjustable version > 75% typical)
• Standard inductors and capacitors are25% of typical LM2575 values
• Thermal shutdown
• Overcurrent protection
• 100% electrical thermal limit burn-in
Applications
• Simple high-efficiency step-down (buck) regulator• Efficient pre-regulator for linear regulators
• On-card switching regulators
• Positive-to-negative converter (inverting buck-boost)
• Battery charger
• Negative boost converter
• Step-down 6V to 3.3V for Intel Pentium® and similar microprocessors
____________________________________________________
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | DC Switching Regulators |
| Series | MIC4575 |
| Type | BiCMOS Buck Switch-Mode Voltage Regulators |
| Packaging | Tube Alternate Packaging |
| Unit-Weight | 0.056438 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | TO-263-6, D2Pak (5 Leads + Tab), TO-263BA |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Function | Step-Down, Step-Up/Step-Down |
| Supplier-Device-Package | TO-263-5 |
| Number-of-Outputs | 1 Output |
| Topology | Buck, Buck-Boost |
| Frequency-Switching | 200kHz |
| Current-Output | 1.7A (Switch) |
| Output-Configuration | Positive |
| Output Voltage | 1.23V |
| Voltage-Output-Max | 20V |
| Synchronous-Rectifier | No |
| Voltage-Input-Min | 4V |
| Voltage-Input-Max | 24V |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | Adj |
| Operating-Supply-Current | 5 mA |
| Input-Voltage-MAX | 24 V |
| Output-Current | 1 A |
| Switching-Frequency | 200 kHz |
| Input-Voltage-MIN | 4 V |
| Load-Regulation | 3 % |
| Package-Case | TO-263-5 |
Descriptions
Conv DC-DC 4V to 24V Step Down Single-Out 1.23V to 20V 1A 6-Pin(5+Tab) TO-263 Tube
Voltage Regulators - Switching Regulators 200kHz 1.0A Step-down Regulator
