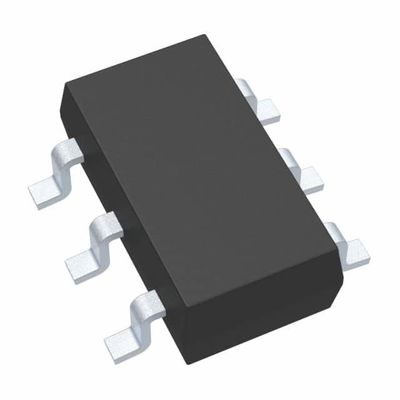

MAX5026EUT+T IC REG BOOST ADJ 260MA SOT23-6 Analog Devices Inc./Maxim Integrated
| Brand Name | Analog Devices Inc./Maxim Integrated |
|---|---|
| Model Number | MAX5026EUT+T |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Up | Output Configuration | Positive |
|---|---|---|---|
| Topology | Boost | Output Type | Adjustable |
| Number Of Outputs | 1 | Voltage - Input (Min) | 3V |
| Voltage - Input (Max) | 11V | Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | 36V | Current - Output | 260mA (Switch) |
| Frequency - Switching | 500kHz | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 | Supplier Device Package | SOT-6 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MAX5026EUT+T | IC REG BOOST ADJ 260MA SOT23-6 | |
| MAX1719EUT+T | IC REG CHARGE PUMP INV 25MA SOT6 | |
| MAX1720EUT+T | IC REG CHARG PUMP INV 25MA SOT23 | |
| MAX1837EUT33+T | IC REG BUCK 3.3V 250MA SOT23-6 | |
| MAX1834EUT+T | IC REG BST ADJ 0.15A SYNC SOT23 | |
| MAX1921EUT30+T | IC REG BUCK 3V 400MA SOT23-6 | |
| MAX16945TGUT/V+T | 30MA INVERTING CHARGE PUMP IN SO | |
| MAX1721EUT+T | IC REG CHARG PUMP INV 25MA SOT23 | |
| MAX1920EUT+T | IC REG BUCK ADJ 400MA SOT23-6 | |
| MAX8569AEUT+T | IC REG BOOST ADJ 750MA SOT23-6 | |
| MAX5025EUT+T | IC REG BOOST ADJ 260MA SOT23-6 | |
| MAX8569BEUT+T | IC REG BOOST 3.3V 750MA SOT23-6 | |
| MAX1697TEUT+T | IC REG CHARG PUMP INV 60MA SOT23 | |
| MAX1697UEUT+T | IC REG CHARG PUMP INV 60MA SOT23 | |
| MAX1697REUT+T | IC REG CHARG PUMP INV 60MA SOT23 | |
| MAX1605EUT+T | IC REG BOOST ADJ 560MA SOT23-6 | |
| MAX1836EUT50+T | IC REG BUCK 5V 125MA SOT23-6 | |
| MAX1836EUT33+T | IC REG BUCK 3.3V 125MA SOT23-6 | |
| MAX1832EUT+T | HIGH-EFFICIENCY STEP-UP CONVERTE | |
| MAX1833EUT+T | HIGH-EFFICIENCY STEP-UP CONVERTE | |
| MAX1835EUT+T | HIGH-EFFICIENCY STEP-UP CONVERTE | |
| MAX1719EUT | IC REG CHARG PUMP INV 25MA SOT23 | |
| MAX1719EUT-T | IC REG CHARG PUMP INV 25MA SOT23 | |
| MAX1720EUT-T | IC REG CHARG PUMP INV 25MA SOT23 | |
| MAX1721EUT-T | IC REG CHARG PUMP INV 25MA SOT23 | |
| MAX1605EUT-T | IC REG BOOST ADJ 350MA SOT23-6 | |
| MAX1697SEUT+T | IC REG CHARG PUMP INV 60MA SOT23 | |
| MAX1697UEUT#TG16 | IC REG CHARG PUMP INV 60MA SOT23 | |
| MAX1832EUT#TG16 | IC REG BOOST ADJ 150MA SOT23-6 | |
| MAX1837EUT50#TG16 | IC REG BUCK 5V 250MA SOT23-6 | |
| MAX1896EUT#TG16 | IC REG BST SEPIC ADJ 550MA SOT23 | |
| MAX1921EUT18+TG104 | IC REG BUCK 1.8V 400MA SOT23-6 | |
| MAX1837EUT33#TG16 | IC REG BUCK 3.3V 250MA SOT23-6 | |
| MAX1835EUT#TG16 | IC REG BOOST 3.3V 150MA SOT23-6 | |
| MAX1697TEUT#TG16 | IC REG CHARG PUMP INV 60MA SOT23 | |
| MAX1697REUT#TG16 | IC REG CHARG PUMP INV 60MA SOT23 | |
| MAX1836EUT50#TG40 | IC REG BUCK 5V 125MA SOT23-6 | |
| MAX5027EUT+T | IC REG BOOST 30V 260MA SOT23-6 | |
| MAX5028EUT+T | IC REG BOOST 30V 260MA SOT23-6 | |
| MAX1836EUT33#TG16 | IC REG BUCK 3.3V 125MA SOT23-6 | |
| MAX1836EUT50#TG16 | IC REG BUCK 5V 125MA SOT23-6 | |
| MAX1834EUT#TG16 | IC REG BOOST ADJ 150MA SOT23-6 | |
| MAX1605EUT#TG16 | IC REG BOOST ADJ 350MA SOT23-6 | |
| MAX1697UEUT-T | IC REG CHARG PUMP INV 60MA SOT23 | |
| MAX5028EUT-T | IC REG BOOST 30V 260MA SOT23-6 | |
| MAX1833EUT#TG16 | IC REG BOOST 3.3V 150MA SOT23-6 | |
| MAX1719EUT+ | IC REG CHARGE PUMP INV 25MA SOT6 | |
| MAX5026EUT/GH9 | IC REG BOOST ADJ 260MA 6SOT | |
| MAX1697REUT#G16 | IC REG CHARGE PUMP SOT23 | |
| MAX1697SEUT#G16 | IC REG CHARGE PUMP SOT23 | |
| MAX1697SEUT#TG16 | IC REG CHARGE PUMP SOT23 | |
| MAX1832EUT#G16 | IC REG BOOST ADJ 150MA SOT23-6 | |
| MAX1833EUT#G16 | IC REG BOOST 3.3V 150MA SOT23-6 | |
| MAX1835EUT#G16 | IC REG BOOST 3.3V 150MA SOT23-6 | |
| MAX1836EUT33#G16 | IC REG BCK ADJ/FIX 125MA SOT23-6 | |
| MAX1836EUT50#G16 | IC REG BCK ADJ/5V 125MA SOT23-6 | |
| MAX1837EUT33#G16 | IC REG BCK ADJ/FIX 250MA SOT23-6 | |
| MAX1837EUT50#G16 | IC REG BCK ADJ/5V 250MA SOT23-6 | |
| MAX1896EUT#G16 | IC REG BST SEPIC ADJ 500MA SOT23 | |
| MAX1697SEUT+ | IC REG | |
| MAX5027EUT+ | IC POWER MANAGEMENT | |
| MAX5028EUT+ | IC POWER MANAGEMENT | |
| MAX16945TGUT+ | IC INTEGRATED CIRCUIT | |
| MAX1921EUT15+T | IC REG BUCK 1.5V 400MA SOT23-6 | |
| MAX8570EUT+TC70 | HIGH-EFFICIENCY LCD BOOST WITH T | |
| MAX1921EUT15+ | IC REG BUCK 1.5V 400MA SOT6 |
Product Description
Product Details
General Description
The MAX5025–MAX5028 constant-frequency, pulsewidth modulating (PWM), low-noise boost converters are intended for low-voltage systems that often need a locally generated high voltage. These devices are capable of generating low-noise, high output voltages required for varactor diode biasing in TV tuners, set-top boxes, and PCI cable modems. The MAX5025– MAX5028 operate from as low as 3V and switch at 500kHz.
Features
♦ Input Voltage Range:3V to 11V (MAX5026/MAX5028)
4.5V to 11V (MAX5025/MAX5027)
♦ Wide Output Voltage Range: VCC to 36V
♦ Output Power: 120mW (max)
♦ User-Adjustable Output Voltage with MAX5025/MAX5026 Using External Feedback Resistors
♦ Fixed 30V Output Voltage: MAX5027/MAX5028
♦ Internal 1.3Ω (typ), 40V Switch
♦ Constant PWM Frequency Provides Easy Filtering in Low-Noise Applications
♦ 500kHz (typ) Switching Frequency
♦ 1µA (max) Shutdown Current
♦ Small, 6-Pin SOT23 Package
Applications
TV Tuner Power SupplyLow-Noise Varactor Diode Biasing
Set-Top Box Tuner Power Supply
PCI Cable Modem
Voice-Over-Cable
LCD Power Supply
Avalanche Photodiode Biasing
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Maxim Integrated |
| Product Category | DC Switching Regulators |
| Series | MAX5026 |
| Type | Voltage Converter |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.001270 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | SOT-23-6 |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Function | Step-Up |
| Supplier-Device-Package | SOT-23-6 |
| Number-of-Outputs | 1 Output |
| Topology | Boost |
| Frequency-Switching | 500kHz |
| Current-Output | 260mA (Switch) |
| Output-Configuration | Positive |
| Output Voltage | 3V |
| Voltage-Output-Max | 36V |
| Synchronous-Rectifier | No |
| Voltage-Input-Min | 3V |
| Voltage-Input-Max | 11V |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 5 V to 36 V |
| Input-Voltage-MAX | 11 V |
| Output-Current | 40 mA |
| Switching-Frequency | 500 kHz |
| Input-Voltage-MIN | 3 V |
| Load-Regulation | 1 % |
| Software Development Kit | MAX5026EVKIT |
| Part-#-Aliases | MAX5026 |
| Package-Case | SOT-23-6 |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| MAX5026EUT-T Power Circuits |
Switching Regulator, Current-mode, 0.6A, 670kHz Switching Freq-Max, BICMOS, PDSO6, SOT-23, 6 PIN | Maxim Integrated Products | MAX5026EUT+T vs MAX5026EUT-T |
Descriptions
Voltage Regulators - Switching Regulators 500kHz 36V Step-Up DC/DC Converter
