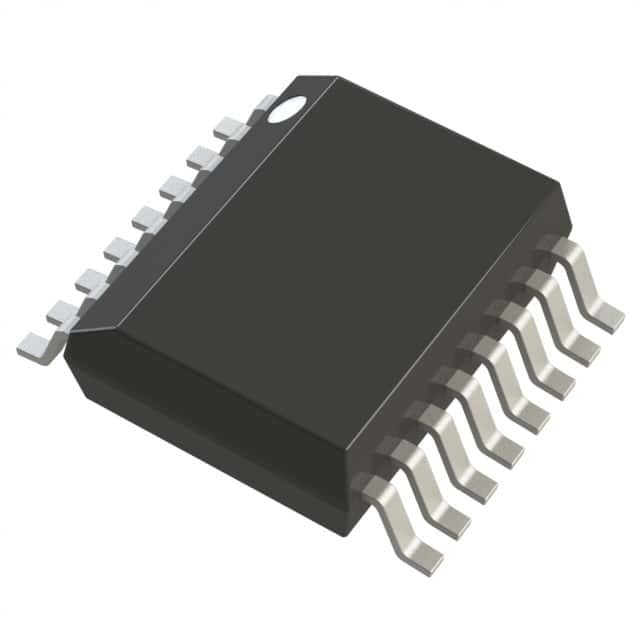

MAX1672EEE+ IC REG BUCK BST ADJ/PROG 16QSOP Analog Devices Inc./Maxim Integrated
| Brand Name | Analog Devices Inc./Maxim Integrated |
|---|---|
| Model Number | MAX1672EEE+ |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Function | Step-Up/Step-Down | Output Configuration | Positive |
|---|---|---|---|
| Topology | Buck, Boost | Output Type | Adjustable (Programmable) |
| Number Of Outputs | 1 | Voltage - Input (Min) | 1.8V |
| Voltage - Input (Max) | 11V | Voltage - Output (Min/Fixed) | 1.25V (3.3V, 5.5V) |
| Voltage - Output (Max) | 5.5V | Current - Output | 300mA |
| Frequency - Switching | - | Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) | Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) | Supplier Device Package | 16-QSOP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MAX1672EEE+ | IC REG BUCK BST ADJ/PROG 16QSOP | |
| MAX1705EEE+ | IC REG BOOST ADJ 1A 16QSOP | |
| MAX1708EEE+ | IC REG BST ADJ/PROG 4.5A 16QSOP | |
| MAX1830EEE+ | IC REG BUCK ADJ/PROG 3A 16QSOP | |
| MAX1831EEE+ | IC REG BUCK ADJ/PROG 3A 16QSOP | |
| MAX864EEE+T | IC REG CHARGE PUMP INV 16QSOP | |
| MAX864EEE+ | IC REG CHARGE PUMP INV 16QSOP | |
| MAX686EEE+ | IC REG BOOST ADJ 600MA 16QSOP | |
| MAX1763EEE+ | IC REG BOOST ADJ/3.3V 2A 16QSOP | |
| MAX685EEE+ | IC REG BOOST ADJ 440MA DL 16QSOP | |
| MAX1684EEE+ | IC REG BUCK ADJ/3.3V 1A 16QSOP | |
| MAX1685EEE+ | IC REG BUCK ADJ/3.3V 1A 16QSOP | |
| MAX1842EEE+ | IC REG BUCK ADJ/PROG 1A 16QSOP | |
| MAX1706EEE+ | IC REG BOOST ADJ 550MA 16QSOP | |
| MAX1742EEE+ | IC REG BUCK ADJ/PROG 1A 16QSOP | |
| MAX1672EEE+T | IC REG BUCK BST ADJ/PROG 16QSOP | |
| MAX8505EEE+T | IC REG BUCK ADJUSTABLE 3A 16QSOP | |
| MAX1677EEE+ | IC REG BOOST ADJ/3.3V DL 16QSOP | |
| MAX1972EEE+ | IC REG BUCK ADJ/PROG DL 16QSOP | |
| MAX1971EEE+ | IC REG BUCK ADJ/PROG DL 16QSOP | |
| MAX618EEE+T | IC REG BOOST ADJ 1.4A 16QSOP | |
| MAX618EEE+ | IC REG BOOST ADJ 1.4A 16QSOP | |
| MAX1970EEE+ | IC REG BUCK ADJ/PROG DL 16QSOP | |
| MAX1701EEE+ | IC REG BOOST ADJ 1.1A 16QSOP | |
| MAX8505EEE+ | IC REG BUCK ADJUSTABLE 3A 16QSOP | |
| MAX1685EEE+T | IC REG BUCK ADJ/3.3V 1A 16QSOP | |
| MAX1705EEE+T | IC REG BOOST ADJ 1A 16QSOP | |
| MAX1708EEE+T | IC REG BST ADJ/PROG 4.5A 16QSOP | |
| MAX16975BAEE/V+T | IC REG BUCK ADJ/5V 1.2A 16QSOP | |
| MAX16975BAEE/V+ | IC REG BUCK ADJ/5V 1.2A 16QSOP | |
| MAX1700EEE+T | IC REG BOOST ADJ 1.1A 16QSOP | |
| MAX1706EEE+T | IC REG BOOST ADJ 550MA 16QSOP | |
| MAX1701EEE+T | IC REG BOOST ADJ 1.1A 16QSOP | |
| MAX1763EEE+T | IC REG BOOST ADJ/3.3V 2A 16QSOP | |
| MAX1700EEE+ | IC REG BOOST ADJ 1.1A 16QSOP | |
| MAX1677EEE+T | IC REG BOOST ADJ/3.3V DL 16QSOP | |
| MAX1972EEE+T | IC REG BUCK ADJ/PROG DL 16QSOP | |
| MAX686EEE+T | IC REG BOOST ADJ 600MA 16QSOP | |
| MAX1831EEE+T | IC REG BUCK ADJ/PROG 3A 16QSOP | |
| MAX1742EEE+T | IC REG BUCK ADJ/PROG 1A 16QSOP | |
| MAX1842EEE+T | IC REG BUCK ADJ/PROG 1A 16QSOP | |
| MAX1684EEE+T | IC REG BUCK ADJ/3.3V 1A 16QSOP | |
| MAX1830EEE+T | IC REG BUCK ADJ/PROG 3A 16QSOP | |
| MAX685EEE+T | IC REG BOOST ADJ 440MA DL 16QSOP | |
| MAX1970EEE+T | IC REG BUCK ADJ/PROG DL 16QSOP | |
| MAX1971EEE+T | IC REG BUCK ADJ/PROG DL 16QSOP | |
| MAX1672EEE | IC REG BUCK BST ADJ/PROG 16QSOP | |
| MAX1677EEE | IC REG BOOST ADJ/3.3V DL 16QSOP | |
| MAX1684EEE | IC REG BUCK ADJ/3.3V 1A 16QSOP | |
| MAX1685EEE | IC REG BUCK ADJ/3.3V 1A 16QSOP | |
| MAX1700EEE | IC REG BOOST ADJ 1.1A 16QSOP | |
| MAX1701EEE | IC REG BOOST ADJ 1.1A 16QSOP | |
| MAX1705EEE | IC REG BOOST ADJ 1A 16QSOP | |
| MAX1706EEE | IC REG BOOST ADJ 550MA 16QSOP | |
| MAX1831EEE | IC REG BUCK ADJ/PROG 3A 16QSOP | |
| MAX1971EEE | IC REG BUCK ADJ/PROG DL 16QSOP | |
| MAX686EEE | IC REG BOOST ADJ 600MA 16QSOP | |
| MAX1672EEE-T | IC REG BUCK BST ADJ/PROG 16QSOP | |
| MAX1763EEE-T | IC REG BOOST ADJ/3.3V 2A 16QSOP | |
| MAX1677EEE-T | IC REG BOOST ADJ/3.3V DL 16QSOP | |
| MAX1685EEE-T | IC REG BUCK ADJ/3.3V 1A 16QSOP | |
| MAX1763EEE | IC REG BOOST ADJ/3.3V 2A 16QSOP | |
| MAX768EEE+ | IC REG CHG PUMP ADJ/5V 16QSOP | |
| MAX768EEE+T | IC REG CHG PUMP ADJ/5V 16QSOP | |
| MAX16901GEE/V+T | IC REG BUCK 1A 16-QSOP | |
| MAX16901GEE/V+ | IC REG BUCK 1A 16-QSOP | |
| MAX16975AEE/V+T | IC REG BUCK ADJ/5V 1.2A 16QSOP | |
| MAX16976AEE/V+T | IC REG BUCK ADJ/5V 600MA 16QSOP | |
| MAX16975AEE/V+ | IC REG BUCK ADJ/5V 1.2A 16QSOP | |
| MAX16976AEE/V+ | IC REG BUCK ADJ/5V 600MA 16QSOP | |
| MAX16975BAEE/V+CG | IC REG BUCK ADJ/5V 1.2A 16QSOP | |
| MAX16975BAEE/V+TCG | IC REG BUCK ADJ/5V 1.2A 16QSOP | |
| MAX16975BAEE+CFY | IC REG BUCK ADJ/5V 1.2A 16QSOP | |
| MAX16975BAEE+TCFY | IC REG BUCK ADJ/5V 1.2A 16QSOP | |
| MAX1742EEE | IC REG BUCK ADJ/PROG 1A 16QSOP | |
| MAX8505EEE+TG38 | IC POWER MANAGEMENT | |
| MAX16975BAEE/V+TW | 28V, 1.2A AUTOMOTIVE STEP-DOWN C | |
| MAX16975BAEE/V+W | 28V, 1.2A AUTOMOTIVE STEP-DOWN C |
Product Description
Product Details
General Description
The MAX1672 integrates a step-up DC-DC converter with a linear regulator to provide step-up/down voltage conversion. This device provides a constant output voltage for inputs that vary above and below the output voltage. It has a 1.8V to 11V input range and a preset 3.3V or 5V output. The output can also be set from 1.25V to 5.5V using two resistors. Typical efficiency is 85%.
Features
♦ Step-Up/Down Voltage Conversion♦ 1.8V to 11V Input Range
♦ 3.3V/5V or Adjustable Output Voltage Range
♦ Output Current:
300mA at 5V (VIN ≥ 2.5V)
150mA at 5V (VIN ≥ 1.8V)
♦ Smaller Inductor than SEPIC and Flybacks
♦ Load Disconnects from Input in Shutdown
♦ Supply Current from Battery:
85µA (No-Load)
0.1µA (Shutdown)
♦ PGI/PGO Low-Battery Comparator
♦ 16-Pin QSOP Package (Same Footprint as 8-pin SO)
♦ No External FETs Required
♦ Thermal and Short-Circuit Protection
Applications
Single-Cell, Lithium-Powered Portable Devices2-Cell to 4-Cell AA Alkaline Hand-Held Equipment
3.3V and Other Low-Voltage Systems
Battery-Powered Devices with AC Input Adapters
Digital Cameras
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Maxim Integrated |
| Product Category | DC Switching Regulators |
| Series | MAX1672 |
| Type | Voltage Converter |
| Packaging | Tube Alternate Packaging |
| Unit-Weight | 0.010159 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 16-SSOP (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable (Programmable) |
| Function | Step-Up/Step-Down |
| Supplier-Device-Package | 16-QSOP |
| Number-of-Outputs | 1 Output |
| Topology | Buck, Boost |
| Frequency-Switching | - |
| Current-Output | 300mA |
| Output-Configuration | Positive |
| Output Voltage | 1.25V (3.3V, 5.5V) |
| Voltage-Output-Max | 5.5V |
| Synchronous-Rectifier | No |
| Voltage-Input-Min | 1.8V |
| Voltage-Input-Max | 11V |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 5 V |
| Input-Voltage-MAX | 11 V |
| Output-Current | 150 mA |
| Input-Voltage-MIN | 1.8 V |
| Load-Regulation | 0.003 % |
| Part-#-Aliases | MAX1672 |
| Package-Case | QSOP-16 |
Descriptions
Buck, Boost Switching Regulator IC Positive Adjustable (Programmable) 1.25V (3.3V, 5.5V) 1 Output 300mA 16-SSOP (0.154", 3.90mm Width)
