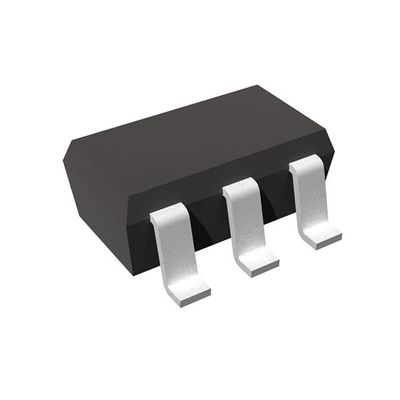

RP402N501F-TR-FE PWM/VFM STEP-UP DCDC CONVERTER W Nisshinbo Micro Devices Inc.

  • RP402N501F-TR-FE PWM/VFM STEP-UP DCDC CONVERTER W Nisshinbo Micro Devices Inc.
Brand Name Nisshinbo Micro Devices Inc.
Model Number RP402N501F-TR-FE
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Function Step-Up Output Configuration Positive
Topology Boost Output Type Fixed
Number Of Outputs 1 Voltage - Input (Min) 0.6V
Voltage - Input (Max) 4.8V Voltage - Output (Min/Fixed) 5V
Voltage - Output (Max) - Current - Output 800mA
Frequency - Switching 1.2MHz Synchronous Rectifier Yes
Operating Temperature -40°C ~ 85°C (TA) Mounting Type Surface Mount
Package / Case SC-74A, SOT-753 Supplier Device Package SOT-23-5
