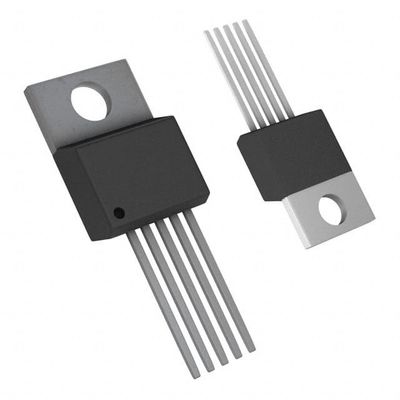

LP38842T-1.5/NOPB IC REG LINEAR 1.5V 1.5A TO220-5 Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | LP38842T-1.5/NOPB |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.5V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.315V @ 1.5A | Current - Output | 1.5A |
| Current - Quiescent (Iq) | 30 µA | Current - Supply (Max) | 40 MA |
| PSRR | 80dB ~ 65dB (120Hz ~ 1kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LP38842T-1.5/NOPB | IC REG LINEAR 1.5V 1.5A TO220-5 | |
| LP38842T-1.2/NOPB | IC REG LINEAR 1.2V 1.5A TO220-5 | |
| LP38843T-0.8/NOPB | IC REG LINEAR 0.8V 3A TO220-5 | |
| LP38843T-1.5/NOPB | IC REG LINEAR 1.5V 3A TO220-5 | |
| LP38843T-1.2/NOPB | IC REG LINEAR 1.2V 3A TO220-5 | |
| LP38841T-1.2/NOPB | IC REG LINEAR 1.2V 800MA TO220-5 | |
| LP38841T-1.2/LF03 | IC REG LINEAR 1.2V 800MA TO220-5 | |
| LP38841T-0.8/NOPB | IC REG LINEAR 0.8V 800MA TO220-5 | |
| LP38841T-1.5/NOPB | IC REG LINEAR 1.5V 800MA TO220-5 | |
| LM9071T/NOPB | IC REG LINEAR 5V 250MA TO220-5 | |
| LP38842T-0.8/NOPB | IC REG LINEAR 0.8V 1.5A TO220-5 | |
| LP38841T-0.8 | IC REG LINEAR 0.8V 800MA TO220-5 | |
| LP38841T-1.2 | IC REG LINEAR 1.2V 800MA TO220-5 | |
| LP38841T-1.5 | IC REG LINEAR 1.5V 800MA TO220-5 | |
| LP38842T-0.8 | IC REG LINEAR 0.8V 1.5A TO220-5 | |
| LP38842T-1.2 | IC REG LINEAR 1.2V 1.5A TO220-5 | |
| LP38842T-1.5 | IC REG LINEAR 1.5V 1.5A TO220-5 | |
| LP38843T-0.8 | IC REG LINEAR 0.8V 3A TO220-5 | |
| LP38843T-1.2 | IC REG LINEAR 1.2V 3A TO220-5 | |
| LP38843T-1.5 | IC REG LINEAR 1.5V 3A TO220-5 |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| Series | LP38842 |
| Product | Ultra Low Dropout Linear Regulator |
| Type | Ultra Low Dropout Voltage |
| Packaging | Tube |
| Unit-Weight | 0.105822 oz |
| Mounting-Style | Through Hole |
| Package-Case | TO-220-5 |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Through Hole |
| Output-Type | Fixed |
| Supplier-Device-Package | TO-220-5 |
| Tolerance | 1.5 V |
| Voltage-Input | Up to 5.5V |
| Number-of-Outputs | 1 Output |
| Current-Output | 1.5A |
| Voltage-Output | 1.5V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.115V @ 1.5A |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 1.5 V |
| Input-Voltage-MAX | 5.5 V |
| Output-Current | 1.5 A |
| Input-Voltage-MIN | 1.615 V |
| Load-Regulation | 0.1 %/A |
| Voltage-Regulation-Accuracy | +/- 1.5 % |
| Package-Case | TO-220-5 |
| Ib-Input-Bias-Current | 30 mA |
| Dropout-Voltage | 0.115 V at 1.5 A |
| Dropout-Voltage-Max | 0.175 V at 1.5 A 0.315 V at 1.5 A |
| Line-Regulation | 0.01 %/A |
| Power Supply Ripple Rejection (PSRR) | 80 dB |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 1.5V 1.5A TO-220-5
LDO Voltage Regulators 1.5A Ultra Low Dropout Linear Regulators 5-TO-220 -40 to 125
