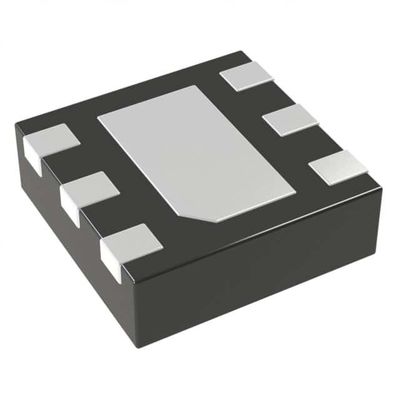

AP7370-33FDC-7 IC REG LINEAR 3.3V 300MA 6DFN Diodes Incorporated
| Brand Name | Diodes Incorporated |
|---|---|
| Model Number | AP7370-33FDC-7 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 18V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 100mA | Current - Output | 300mA |
| Current - Quiescent (Iq) | 2.5 µA | Current - Supply (Max) | 300 µA |
| PSRR | - | Control Features | - |
| Protection Features | Over Current, Over Temperature, Reverse Current, Short Circuit | Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | 6-UDFN Exposed Pad |
| Supplier Device Package | U-DFN2020-6 (Type C) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AP7370-33FDC-7 | IC REG LINEAR 3.3V 300MA 6DFN | |
| AP7387-50FDCR-7 | LDO CMOS LowCurr U-DFN2020-6 T&R | |
| AP7387Q-33FDCW-7 | IC REG LINEAR 3.3V 150MA 6DFN | |
| AP7387Q-36FDCW-7 | IC REG LINEAR 3.6V 150MA 6DFN | |
| AP7387Q-50FDCW-7 | IC REG LINEAR 5V 150MA 6DFN | |
| AP7387-36FDC-7 | LDO CMOS LowCurr U-DFN2020-6 T&R | |
| AP7387-30FDC-7 | LDO CMOS LowCurr U-DFN2020-6 T&R | |
| AP7387-30FDCR-7 | LDO CMOS LowCurr U-DFN2020-6 T&R | |
| AP7387-33FDCR-7 | LDO CMOS LowCurr U-DFN2020-6 T&R | |
| AP7387-36FDCR-7 | LDO CMOS LowCurr U-DFN2020-6 T&R | |
| AP7387Q-30FDCW-7 | IC REG LINEAR 3V 150MA 6DFN | |
| AP7370-12FDC-7 | IC REG LINEAR 1.2V 300MA 6DFN | |
| AP7370-15FDC-7 | IC REG LINEAR 1.5V 300MA 6DFN | |
| AP7370-18FDC-7 | IC REG LINEAR 1.8V 300MA 6DFN | |
| AP7370-28FDC-7 | IC REG LINEAR 2.8V 300MA 6DFN | |
| AP7370-30FDC-7 | IC REG LINEAR 3V 300MA 6DFN | |
| AP7370-36FDC-7 | IC REG LINEAR 3.6V 300MA 6DFN | |
| AP7370-50FDC-7 | IC REG LINEAR 5V 300MA 6DFN | |
| AP7387-33FDC-7 | LDO CMOS LowCurr U-DFN2020-6 T&R | |
| AP7387-50FDC-7 | LDO CMOS LowCurr U-DFN2020-6 T&R |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Linear Voltage Regulators |
| Mfr | Diodes Incorporated |
| Series | - |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Product-Status | Active |
| Output-Configuration | Positive |
| Output-Type | Fixed |
| Number-of-Regulators | 1 |
| Voltage-Input-Max | 18V |
| Voltage-Output-Min-Fixed | 3．3V |
| Voltage-Output-Max | - |
| Voltage-Dropout-Max | 0．6V @ 100mA |
| Current-Output | 300mA |
| Current-Quiescent-Iq | 2．5 µA |
| Current-Supply-Max | 300 µA |
| PSRR | - |
| Control-Features | - |
| Protection-Features | Over Current Over Temperature Reverse Current Short Circuit |
| Operating-Temperature | -40°C ~ 125°C (TJ) |
| Mounting-Type | Surface Mount |
| Package-Case | 6-UDFN Exposed Pad |
| Supplier-Device-Package | U-DFN2020-6 (Type C) |
| Base-Product-Number | AP7370 |
