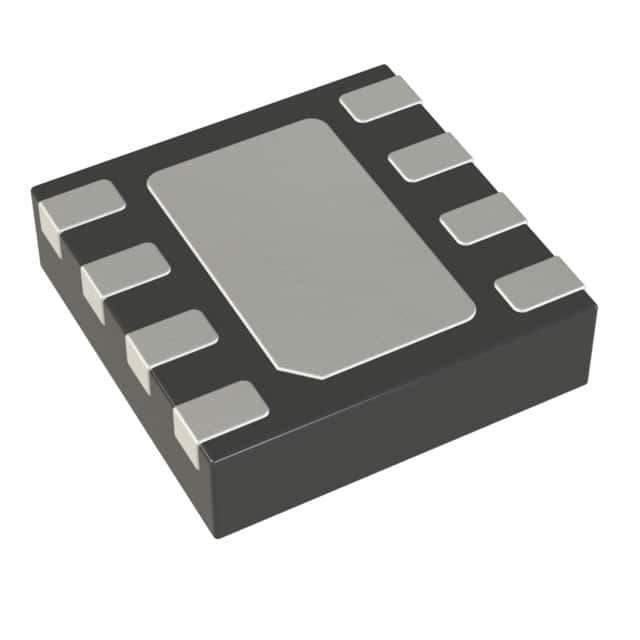

ADP7185ACPZN3.3-R7 IC REG LINEAR -3.3V 500MA 8LFCSP Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | ADP7185ACPZN3.3-R7 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Negative | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | -5.5V |
| Voltage - Output (Min/Fixed) | -3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.36V @ 500mA | Current - Output | 500mA |
| Current - Quiescent (Iq) | 900 µA | Current - Supply (Max) | 7 MA |
| PSRR | 80dB ~ 40dB (1kHz ~ 1MHz) | Control Features | Enable, Power On Reset |
| Protection Features | Over Current | Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | 8-UFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP (2x2) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| ADP7185ACPZN3.3-R7 | IC REG LINEAR -3.3V 500MA 8LFCSP | |
| ADP7185ACPZN1.8-R7 | IC REG LINEAR -1.8V 500MA 8LFCSP | |
| ADP7183ACPZN2.5-R7 | IC REG LINEAR -2.5V 300MA 8LFCSP | |
| ADP7183ACPZN2.0-R7 | IC REG LINEAR -2V 300MA 8LFCSP | |
| ADP7183ACPZN0.5-R7 | IC REG LINEAR -0.5V 300MA 8LFCSP | |
| ADP7183ACPZN-R7 | IC REG LIN NEG ADJ 300MA 8LFCSP | |
| ADP7183ACPZN1.0-R7 | IC REG LINEAR -1V 300MA 8LFCSP | |
| ADP7183ACPZN1.2-R7 | IC REG LINEAR -1.2V 300MA 8LFCSP | |
| ADP7183ACPZN3.3-R7 | IC REG LINEAR -3.3V 300MA 8LFCSP | |
| ADP7185ACPZN2.5-R7 | IC REG LINEAR -2.5V 500MA 8LFCSP | |
| ADP7185ACPZN-R7 | IC REG LIN NEG ADJ 500MA 8LFCSP | |
| ADP7185ACPZN1.0-R7 | IC REG LINEAR -1V 500MA 8LFCSP | |
| ADP7185ACPZN0.5-R7 | IC REG LINEAR -0.5V 500MA 8LFCSP | |
| ADP7185ACPZN2.0-R7 | IC REG LINEAR -2V 500MA 8LFCSP | |
| ADP7185ACPZN1.2-R7 | IC REG LINEAR -1.2V 500MA 8LFCSP | |
| ADP7183ACPZN1.8-R7 | IC REG LINEAR -1.8V 300MA 8LFCSP | |
| ADP7183ACPZN1.5-R7 | IC REG LINEAR -1.5V 300MA 8LFCSP | |
| ADP7183ACPZN3.0-R7 | IC REG LINEAR -3V 300MA 8LFCSP | |
| ADP7185ACPZN1.5-R7 | IC REG LINEAR -1.5V 500MA 8LFCSP | |
| ADP7185ACPZN3.0-R7 | IC REG LINEAR -3V 500MA 8LFCSP |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | Linear Voltage Regulators |
| Mfr | Analog Devices Inc． |
| Series | - |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Product-Status | Active |
| Output-Configuration | Negative |
| Output-Type | Fixed |
| Number-of-Regulators | 1 |
| Voltage-Input-Max | -5．5V |
| Voltage-Output-Min-Fixed | -3．3V |
| Voltage-Output-Max | - |
| Voltage-Dropout-Max | 0．36V @ 500mA |
| Current-Output | 500mA |
| Current-Quiescent-Iq | 900 µA |
| Current-Supply-Max | 7 mA |
| PSRR | 80dB ~ 40dB (1kHz ~ 1MHz) |
| Control-Features | Enable Power On Reset |
| Protection-Features | Over Current |
| Operating-Temperature | -40°C ~ 125°C (TJ) |
| Mounting-Type | Surface Mount |
| Package-Case | 8-UFDFN Exposed Pad CSP |
| Supplier-Device-Package | 8-LFCSP (2x2) |
| Base-Product-Number | ADP7185 |
Descriptions
Linear Voltage Regulator IC Negative Fixed 1 Output 3.3V 500mA 8-LFCSP (2x2)
LDO Regulator Neg -3.3V -0.5A 8-Pin LFCSP EP T/R
