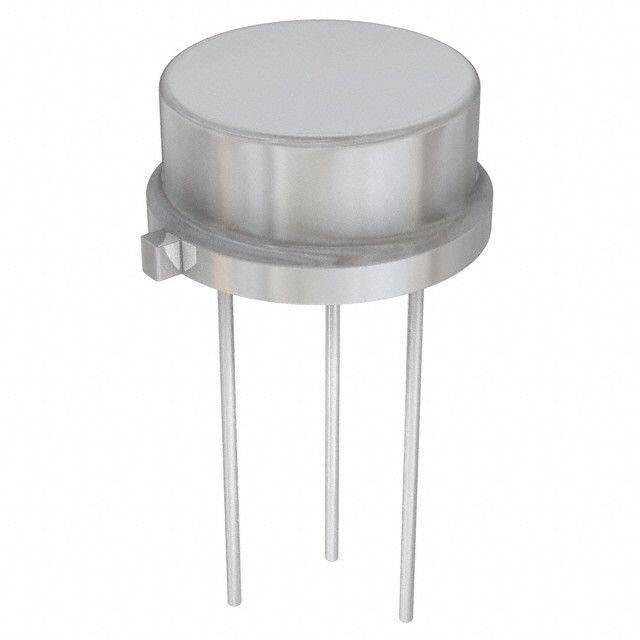

SG117T IC REG LINEAR POS ADJ 1.5A TO39 Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | SG117T |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 37V |
| Voltage - Output (Min/Fixed) | 1.25V | Voltage - Output (Max) | 37V |
| Voltage Dropout (Max) | - | Current - Output | 1.5A |
| Current - Quiescent (Iq) | - | Current - Supply (Max) | - |
| PSRR | 80dB (120Hz) | Control Features | - |
| Protection Features | Over Current | Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Through Hole | Package / Case | TO-205AD, TO-39-3 Metal Can |
| Supplier Device Package | TO-39 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| SG117T | IC REG LINEAR POS ADJ 1.5A TO39 | |
| SG7812AT | IC REG LINEAR 12V 1.5A TO39 | |
| SG7912T-883B | IC REG LINEAR -12V 1.5A TO39 | |
| SG7808AT-DESC | IC REG LINEAR TO39 | |
| SG7808T | IC REG LINEAR TO39 | |
| SG7915T-883B | IC REG LINEAR -15V 1.5A TO39 | |
| SG7806T | IC REG LINEAR TO39 | |
| SGR117AT | IC REG LINEAR POS ADJ 1.5A TO39 | |
| SG109T-883B | IC REG LINEAR 5V 1A TO39 | |
| SG117HVT-DESC | IC REG LINEAR POS ADJ 1.5A TO39 | |
| SG7820AT-883B | IC REG LINEAR TO39 | |
| SG7824T-883B | IC REG LINEAR TO39 | |
| SG7812T-883B | IC REG LINEAR 12V 1.5A TO39 | |
| SG7808T-883B | IC REG LINEAR TO39 | |
| SG7824T | IC REG LINEAR TO39 | |
| SG117HVT-883B | IC REG LINEAR POS ADJ 1.5A TO39 | |
| SG7808AT-883B | IC REG LINEAR TO39 | |
| SG7908T | IC REG LINEAR TO39 | |
| SG7806T-883B | IC REG LINEAR TO39 | |
| SG7808AT | IC REG LINEAR TO39 | |
| SG117AHVT-DESC | IC REG LINEAR POS ADJ 1.5A TO39 |
Product Description
Product Details
DESCRIPTION
The SG117A Series are 3-terminal positive adjustable voltage regulators which offer improved performance over the original 117 design. A major feature of the SG117A is reference voltage tolerance guaranteed within ± 1%, allowing an overall power supply tolerance to be better than 3% using inexpensive 1% resistors. Line and load regulation performance has been improved as well.KEY FEATURES
■ 1% output voltage tolerance
■ 0.01%/V line regulation
■ 0.3% load regulation
■ Min. 1.5A output current
■ Available in hermetic TO-220
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | MSC |
| Product Category | Linear Voltage Regulators |
| Categories | PMIC - Voltage Regulators - Linear |
| Manufacturer | Microsemi Corporation |
| Series | * |
| Packaging | Bulk |
| Part-Status | Active |
| Number-of-Regulators | 1 Regulator |
| Current-Output | 1.5A |
| Operating-Temperature | -55°C ~ 125°C |
| Mounting-Type | Through Hole |
| Package-Case | TO-205AD, TO-39-3 Metal Can |
| Supplier-Device-Package | TO-99 |
| Base-Part-Number | SG117 |
Descriptions
Linear Voltage Regulator IC Positive Adjustable 1 Output Adj to 1.25V 1.5A TO-99
Standard Regulator Pos 1.5A 3-Pin TO-39
