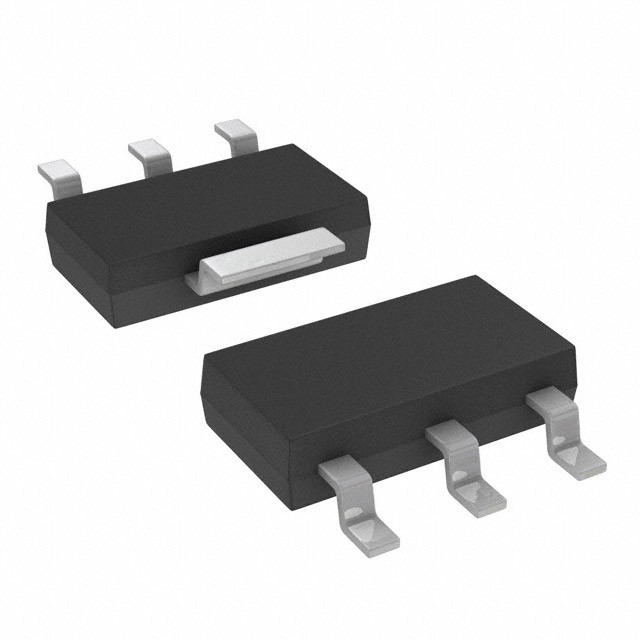

NX1117CADJZ,115 IC REG LINEAR POS ADJ 1A SC73 N✖P USA Inc.
| Brand Name | N✖P USA Inc. |
|---|---|
| Model Number | NX1117CADJZ,115 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 20V |
| Voltage - Output (Min/Fixed) | 1.25V | Voltage - Output (Max) | 18.8V |
| Voltage Dropout (Max) | 1.2V @ 800mA | Current - Output | 1A |
| Current - Quiescent (Iq) | 120 µA | Current - Supply (Max) | - |
| PSRR | 69dB (120Hz) | Control Features | - |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SC-73 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| NX1117CADJZ,115 | IC REG LINEAR POS ADJ 1A SC73 | |
| NX1117C285Z,115 | IC REG LINEAR 2.85V 1A SOT223 | |
| NX1117C20Z,115 | IC REG LINEAR 2V 1A SOT223 | |
| NX1117C19Z,115 | IC REG LINEAR 1.9V 1A SOT223 | |
| NX1117C15Z,115 | IC REG LINEAR 1.5V 1A SOT223 | |
| NX1117C12Z,115 | IC REG LINEAR 1.2V 1A SOT223 | |
| NX1117C50Z,115 | IC REG LINEAR 5V 1A SOT223 | |
| NX1117C33Z,115 | IC REG LINEAR 3.3V 1A SOT223 | |
| NX1117C25Z,115 | IC REG LINEAR 2.5V 1A SOT223 | |
| NX1117CE12Z,115 | IC REG LINEAR 1.2V 1A SOT223 | |
| NX1117CE20Z,115 | IC REG LINEAR 2V 1A SOT223 | |
| NX1117CE19Z,115 | IC REG LINEAR 1.9V 1A SOT223 | |
| NX1117C18Z,115 | IC REG LINEAR 1.8V 1A SOT223 | |
| TDA3664/N1,135 | IC REG LINEAR 5V 100MA SOT223 | |
| NX1117CEADJZ,115 | IC REG LINEAR POS ADJ 1A SC73 | |
| NX1117CE50Z,115 | IC REG LINEAR 5V 1A SOT223 | |
| NX1117CE285Z,115 | IC REG LINEAR 2.85V 1A SOT223 | |
| NX1117CE25Z,115 | IC REG LINEAR 2.5V 1A SOT223 | |
| NX1117CE18Z,115 | IC REG LINEAR 1.8V 1A SOT223 | |
| NX1117CE15Z,115 | IC REG LINEAR 1.5V 1A SOT223 | |
| TDA3663/N1,135 | IC REG LINEAR 3.3V 100MA SOT223 | |
| NX1117CE33Z,115 | IC REG LINEAR 3.3V 1A SOT223 |
Product Description
Product Details
General description
The NX1117C/NX1117CE are two series of low-dropout positive voltage regulators with an output current capability of 1 A. The two series consist of 18 fixed output voltage versions and two adjustable output voltage versions. NX1117C series offers an output voltage accuracy of ±1 % and NX1117CE series of ±1.25 %.The regulators feature output current limiting, Safe Operating Area (SOA) control, and thermal shutdown.
The NX1117C/NX1117CE series are housed in a medium power SOT223 (SC-73) Surface-Mounted Device (SMD) plastic package.
Features and benefits
■ Maximum output current of 1 A■ SOA control
■ Wide operation range to 20 V input
■ Thermal shutdown
■ Output voltage accuracy of ±1 % or ±1.25 %
■ No minimum load requirements for fixed output voltage versions
■ Output current limiting
■ Temperature range -40°C to 125°C
Applications
■ Post regulator for switching DC-to-DC converter■ High-efficiency linear regulators
■ Battery charger
■ USB devices
■ Hard drive controllers
■ Consumer and industrial equipment point of load
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | N✖P Semiconductors |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | |
| Package-Case | TO-261-4, TO-261AA |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | SC-73 |
| Voltage-Input | Up to 20V |
| Current-Output | 1A |
| Voltage-Output | Adj to 1.25V |
| Regulator-Topology | Positive Adjustable |
| Voltage-Dropout-Typical | 1.07V @ 800mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 1A |
Descriptions
Linear Voltage Regulator IC Positive Adjustable 1 Output Adj to 1.25V 1A SOT-223
LDO Regulator Pos 1.25V to 18V 1A 4-Pin(3+Tab) SC-73 T/R
