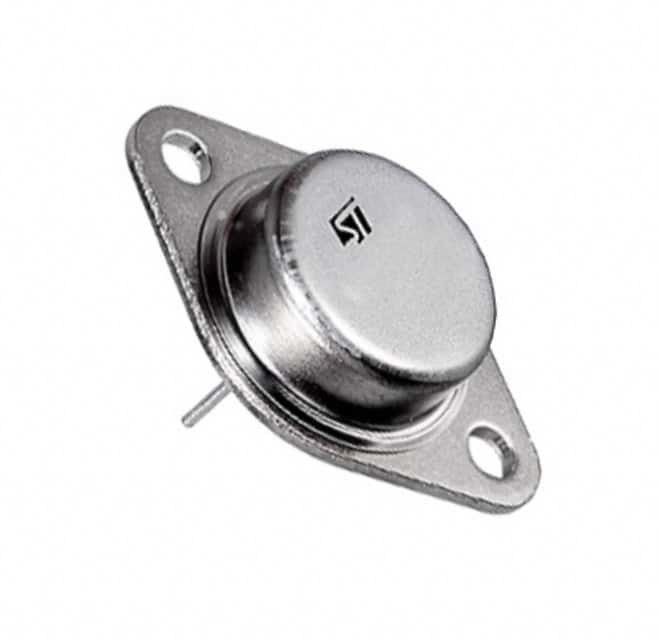

LM217K IC REG LINEAR POS ADJ 1.5A TO3 STMicroelectronics
| Brand Name | STMicroelectronics |
|---|---|
| Model Number | LM217K |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 1.2V | Voltage - Output (Max) | 37V |
| Voltage Dropout (Max) | - | Current - Output | 1.5A |
| Current - Quiescent (Iq) | - | Current - Supply (Max) | - |
| PSRR | 80dB ~ 65dB (120Hz) | Control Features | - |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -25°C ~ 150°C |
| Mounting Type | Through Hole | Package / Case | TO-204AA, TO-3 |
| Supplier Device Package | TO-3 | ||
| Highlight | PMIC Chip,PMIC IC,Power Management Integrated Circuits |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LM217K | IC REG LINEAR POS ADJ 1.5A TO3 | |
| L7805T | IC REG LINEAR 5V 1.5A TO3 | |
| L7805CT | IC REG LINEAR 5V 1.5A TO3 | |
| L7812CT | IC REG LINEAR 12V 1.5A TO3 | |
| L7815CT | IC REG LINEAR 15V 1.5A TO3 | |
| L7824CT | IC REG LINEAR 24V 1.5A TO3 | |
| LM323K | IC REG LINEAR 5V 3A TO3 | |
| LM338K | IC REG LINEAR POS ADJ 5A TO3 | |
| LM350K | IC REG LINEAR POS ADJ 3A TO3 | |
| L7812T | IC REG LINEAR 12V 1.5A TO3 | |
| LM117K | IC REG LINEAR POS ADJ 1.5A TO3 | |
| LM123K | IC REG LINEAR 5V 3A TO3 | |
| LM137K | IC REG LIN NEG ADJ 1.5A TO3 | |
| LM138K | IC REG LINEAR POS ADJ 5A TO3 | |
| LM150K | IC REG LINEAR POS ADJ 3A TO3 | |
| LM237K | IC REG LIN NEG ADJ 1.5A TO3 | |
| LM238K | IC REG LINEAR POS ADJ 5A TO3 | |
| LM250K | IC REG LINEAR POS ADJ 3A TO3 | |
| LM317K | IC REG LINEAR POS ADJ 1.5A TO3 | |
| LM337K | IC REG LIN NEG ADJ 1.5A TO3 | |
| L78S12CT | IC REG LINEAR 12V 2A TO3 | |
| L7915CT | IC REG LINEAR -15V 1.5A TO3 | |
| L7806CT | IC REG LINEAR 6V 1.5A TO3 | |
| L7818CT | IC REG LINEAR 18V 1.5A TO3 |
Product Description
Product Details
Description
The LM117, LM217, LM317 are monolithic integrated circuits in TO-220, TO-220FP, TO-3 and D²PAK packages intended for use as positive adjustable voltage regulators.They are designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 to 37 V range.
Features
■ Output voltage range: 1.2 to 37 V■ Output current in excess of 1.5 A
■ 0.1% Line and load regulation
■ Floating operation for high voltages
■ Complete series of protections: current limiting, thermal shutdown and SOA control
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Bulk |
| Package-Case | TO-204AA, TO-3 |
| Operating-Temperature | -25°C ~ 150°C |
| Mounting-Type | Through Hole |
| Supplier-Device-Package | TO-3 |
| Voltage-Input | - |
| Current-Output | 1.5A |
| Voltage-Output | 1.2 V ~ 37 V |
| Regulator-Topology | Positive Adjustable |
| Voltage-Dropout-Typical | - |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
Descriptions
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.2 V ~ 37 V 1.5A TO-3
Standard Regulator Pos 1.2V to 37V 1.5A 3-Pin(2+Tab) TO-3 Bag
