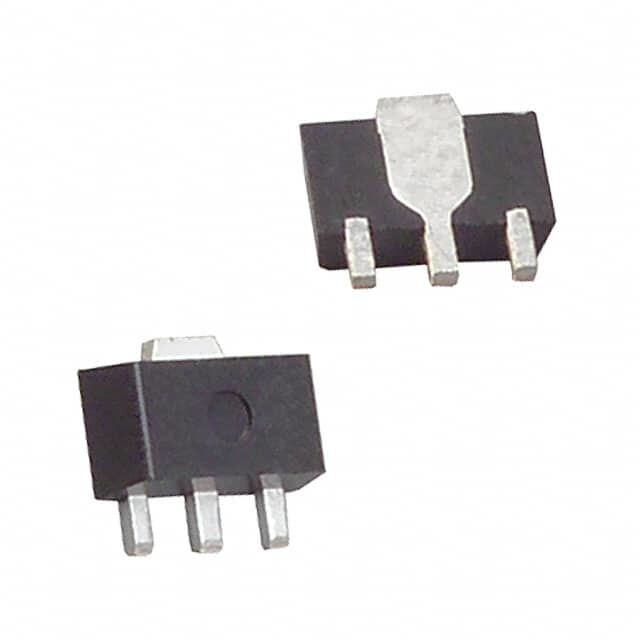

LM317LIPK IC REG LIN POS ADJ 100MA SOT89-3 Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | LM317LIPK |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 38V |
| Voltage - Output (Min/Fixed) | 1.2V | Voltage - Output (Max) | 32V |
| Voltage Dropout (Max) | - | Current - Output | 100mA |
| Current - Quiescent (Iq) | 2.5 MA | Current - Supply (Max) | - |
| PSRR | 80dB ~ 65dB (120Hz) | Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | TO-243AA |
| Supplier Device Package | SOT-89-3 | ||
| Highlight | PMIC Chip,PMIC IC,Power Management Integrated Circuits |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LM317LIPK | IC REG LIN POS ADJ 100MA SOT89-3 | |
| UA78L05ACPK | IC REG LINEAR 5V 100MA SOT89-3 | |
| UA78L12ACPK | IC REG LINEAR 12V 100MA SOT89-3 | |
| UA78L09ACPK | IC REG LINEAR 9V 100MA SOT89-3 | |
| UA78L15ACPK | IC REG LINEAR 15V 100MA SOT89-3 | |
| UA78L10ACPKG3 | IC REG LINEAR 10V 100MA SOT89-3 | |
| UA78L10ACPK | IC REG LINEAR 10V 100MA SOT89-3 | |
| UA78L05CPK | IC REG LINEAR 5V 100MA SOT89-3 | |
| UA78L05AIPK | IC REG LINEAR 5V 100MA SOT89-3 | |
| UA78L05ACPKE6 | IC REG LINEAR 5V 100MA SOT89-3 | |
| UA78L05ACPKG3 | IC REG LINEAR 5V 100MA SOT89-3 | |
| UA78L06ACPK | IC REG LINEAR 6.2V 100MA SOT89-3 | |
| UA78L12ACPKG3 | IC REG LINEAR 12V 100MA SOT89-3 | |
| UA78L06ACPKG3 | IC REG LINEAR 6.2V 100MA SOT89-3 | |
| UA78L05AIPKG3 | IC REG LINEAR 5V 100MA SOT89-3 | |
| UA78L08ACPKG3 | IC REG LINEAR 8V 100MA SOT89-3 | |
| UA78L09ACPKG3 | IC REG LINEAR 9V 100MA SOT89-3 | |
| LM317LCPK | IC REG LIN POS ADJ 100MA SOT89-3 | |
| UA78L09ACPKE6 | IC REG LINEAR 9V 100MA SOT89-3 | |
| UA78L08ACPK | IC REG LINEAR 8V 100MA SOT89-3 | |
| UA78L15ACPKG3 | IC REG LINEAR 15V 100MA SOT89-3 | |
| LM317LCPKG3 | IC REG LIN POS ADJ 100MA SOT89-3 | |
| LM317LIPKG3 | IC REG LIN POS ADJ 100MA SOT89-3 | |
| UA78L05CPKG3 | IC REG LINEAR 5V 100MA SOT89-3 |
Product Description
Product Details
DESCRIPTION
The Contek LM317L is a monolithic integrated circuit, designed for use as positive adjustable voltage regulator. It is designed to supply until 100mA of load current with an output voltage adjustable over a 1.25V to 37V range.
FEATURES
* Output voltage range: 1.25V to 37V* Output current in excess of 100mA
* Line regulation typ. 0.01%
* Load regulation typ. 0.1%
* Thermal overload protection
* Short circuit protection
* Output transistor safe area compensation
* Floating operation for high voltage applications
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| Series | LM317L |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.004603 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | TO-243AA |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Supplier-Device-Package | SOT-89-3 |
| Voltage-Input | 3.7 V ~ 38 V |
| Number-of-Outputs | 1 Output |
| Current-Output | 100mA |
| Voltage-Output | 1.2 V ~ 32 V |
| Regulator-Topology | Positive Adjustable |
| Voltage-Dropout-Typical | - |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Polarity | Positive |
| Output-Voltage | 1.2 V to 32 V |
| Input-Voltage-MAX | 35 V |
| Output-Current | 100 mA |
| Input-Voltage-MIN | 4.2 V |
| Load-Regulation | 0.5 % |
| Package-Case | SOT-89-3 |
| Line-Regulation | 0.02 % / V |
| Power Supply Ripple Rejection (PSRR) | 80 dB |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| LM317LCPKG3 Power Circuits |
3-pin or 8-pin 100-mA adjustable positive regulator 3-SOT-89 0 to 125 | Texas Instruments | LM317LIPK vs LM317LCPKG3 |
Descriptions
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.2 V ~ 32 V 100mA SOT-89-3
Standard Regulator Pos 1.2V to 32V 0.1A 4-Pin(3+Tab) SOT-89 T/R
Linear Voltage Regulators 3Pin 100mA Adj Vltg Reg
