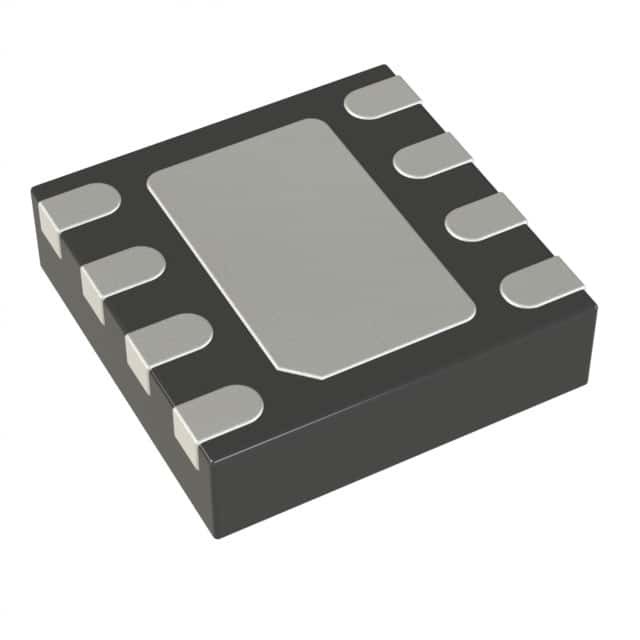

ADP125ACPZ-R7 IC REG LIN POS ADJ 500MA 8LFCSP Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | ADP125ACPZ-R7 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V | Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | 0.23V @ 500mA | Current - Output | 500mA |
| Current - Quiescent (Iq) | 105 µA | Current - Supply (Max) | 280 µA |
| PSRR | 60dB (10kHz ~ 100kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 8-UFDFN Exposed Pad, CSP |
| Supplier Device Package | 8-LFCSP-UD (2x2) | ||
| Highlight | PMIC Chip,PMIC IC,Power Management Integrated Circuits |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| ADP125ACPZ-R7 | IC REG LIN POS ADJ 500MA 8LFCSP | |
| ADP225ACPZ-R7 | IC REG LINEAR POS ADJ 8LFCSP | |
| ADP124ACPZ-2.8-R7 | IC REG LINEAR 2.8V 500MA 8LFCSP | |
| ADP222ACPZ-2725-R7 | IC REG LINEAR 2.5V/2.7V 8LFCSP | |
| ADP222ACPZ-1218-R7 | IC REG LINEAR 1.2V/1.8V 8LFCSP | |
| ADP222ACPZ-3325-R7 | IC REG LINEAR 2.5V/3.3V 8LFCSP | |
| ADP124ACPZ-1.8-R7 | IC REG LINEAR 1.8V 500MA 8LFCSP | |
| ADP124ACPZ-3.0-R7 | IC REG LINEAR 3V 500MA 8LFCSP | |
| ADP222ACPZ-1833-R7 | IC REG LINEAR 1.8V/3.3V 8LFCSP | |
| ADP222ACPZ-1233-R7 | IC REG LINEAR 1.2V/3.3V 8LFCSP | |
| ADP222ACPZ-1825-R7 | IC REG LINEAR 1.8V/2.5V 8LFCSP | |
| ADP124ACPZ-3.3-R7 | IC REG LINEAR 3.3V 500MA 8LFCSP | |
| ADP222ACPZ-2818-R7 | IC REG LINEAR 1.8V/2.8V 8LFCSP | |
| ADP223ACPZ-R7 | IC REG LINEAR POS ADJ 8LFCSP | |
| ADP224ACPZ-2818-R7 | IC REG LINEAR 1.8V/2.8V 8LFCSP | |
| ADP124ACPZ-2.9-R7 | IC REG LINEAR 2.9V 500MA 8LFCSP | |
| ADP222ACPZ-1228-R7 | IC REG LINEAR 1.2V/2.8V 8LFCSP | |
| ADP222ACPZ-1528-R7 | IC REG LINEAR 1.5V/2.8V 8LFCSP | |
| ADP222ACPZ-1533-R7 | IC REG LINEAR 1.5V/3.3V 8LFCSP | |
| ADP222ACPZ-1815-R7 | IC REG LINEAR 1.5V/1.8V 8LFCSP | |
| ADP222ACPZ-1827-R7 | IC REG LINEAR 1.8V/2.7V 8LFCSP | |
| ADP222ACPZ-2827-R7 | IC REG LINEAR 2.7V/2.8V 8LFCSP | |
| ADP222ACPZ-3328-R7 | IC REG LINEAR 2.8V/3.3V 8LFCSP | |
| ADP222ACPZ-3330-R7 | IC REG LINEAR 3V/3.3V 8LFCSP |
Product Description
Product Details
GENERAL DESCRIPTION
The ADP124/ADP125 are low quiescent current, low dropout linear regulators. They are designed to operate from an input voltage between 2.3 V and 5.5 V and to provide up to 500 mA of output current. The low 130 mV dropout voltage at a 500 mA load improves efficiency and allows operation over a wide input voltage range.
FEATURES
Input voltage supply range: 2.3 V to 5.5 V500 mA maximum output current
Fixed and adjustable output voltage versions
1% initial accuracy
Up to 31 fixed-output voltage options available from 1.75 V to 3.3 V
Adjustable-output voltage range from 0.8 V to 5.0 V
Very low dropout voltage: 130 mV
Low quiescent current: 45 µA
Low shutdown current: <1 µA
Excellent PSRR performance: 60 dB at 100 kHz
Excellent load/line transient response
Optimized for small 1.0 μF ceramic capacitors
Current limit and thermal overload protection
Logic controlled enable
Compact 8-lead exposed paddle MSOP and LFCSP packages
APPLICATIONS
Digital camera and audio devicesPortable and battery-powered equipment
Automatic meter reading (AMR) meters
GPS and location management units
Medical instrumentation
Point of load power
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | Linear Voltage Regulators |
| Series | ADP125 |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-UFDFN Exposed Pad, CSP |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | 8-LFCSP-UD (2x2) |
| Voltage-Input | 2.3 V ~ 5.5 V |
| Current-Output | 500mA |
| Voltage-Output | 0.8 V ~ 5 V |
| Regulator-Topology | Positive Adjustable |
| Voltage-Dropout-Typical | 0.13V @ 500mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 550mA |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Input-Voltage-MAX | 5.5 V |
| Output-Current | 500 mA |
| Input-Voltage-MIN | 2.3 V |
| Package-Case | LFCSP-8 |
Descriptions
Linear Voltage Regulator IC Positive Adjustable 1 Output 0.8 V ~ 5 V 500mA 8-LFCSP-UD (2x2)
LDO Regulator Pos 0.8V to 5V 0.5A 8-Pin LFCSP EP T/R
Linear Voltage Regulators 5.5V Input 500mA Low Quiescent Crnt CMOS
