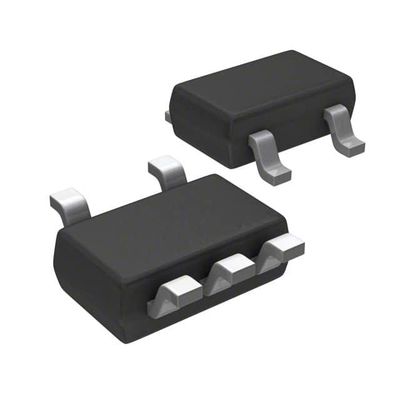

ZXCL330H5TA IC REG LINEAR 3.3V 150MA SC70-5 Diodes Incorporated
| Brand Name | Diodes Incorporated |
|---|---|
| Model Number | ZXCL330H5TA |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.28V @ 100mA | Current - Output | 150mA |
| Current - Quiescent (Iq) | 50 µA | Current - Supply (Max) | 120 µA |
| PSRR | - | Control Features | Enable |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 | ||
| Highlight | PMIC Chip,PMIC IC,Power Management Integrated Circuits |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| ZXCL330H5TA | IC REG LINEAR 3.3V 150MA SC70-5 | |
| AP2125KS-3.3TRG1 | IC REG LINEAR 3.3V 300MA SC70-5 | |
| AP2125KS-1.8TRG1 | IC REG LINEAR 1.8V 300MA SC70-5 | |
| ZXCL5213V28H5TA | IC REG LINEAR 2.8V 150MA SC70-5 | |
| AP2125KS-2.8TRG1 | IC REG LINEAR 2.8V 300MA SC70-5 | |
| ZXCL280H5TA | IC REG LINEAR 2.8V 150MA SC70-5 | |
| ZXCL300H5TA | IC REG LINEAR 3V 150MA SC70-5 | |
| ZXCL260H5TA | IC REG LINEAR 2.6V 150MA SC70-5 | |
| ZXCL250H5TA | IC REG LINEAR 2.5V 100MA SC70-5 | |
| ZXCL400H5TA | IC REG LINEAR 4V 150MA SC70-5 | |
| ZXCL5213V33H5TA | IC REG LINEAR 3.3V 150MA SC70-5 | |
| ZXCL5213V26H5TA | IC REG LINEAR 2.6V 150MA SC70-5 | |
| ZXCL5213V40H5TA | IC REG LINEAR 4V 150MA SC70-5 | |
| AP2125KS-2.5TRG1 | IC REG LINEAR 2.5V 300MA SC70-5 | |
| AP2125KS-3.0TRG1 | IC REG LINEAR 3V 300MA SC70-5 | |
| AP2125KS-4.2TRG1 | IC REG LINEAR 4.2V 300MA SC70-5 | |
| PT7M8218B33CEX | IC REG LINEAR 3.3V 300MA SC70-5 | |
| PT7M8218B33CE | IC REG LINEAR 3.3V 300MA SC70-5 | |
| ZXCL5213V30H5TA | IC REG LINEAR 3V 150MA SC70-5 | |
| PAM3101DUB120 | IC REG LINEAR 1.2V 300MA SC70-5 | |
| PAM3101DUB150 | IC REG LINEAR 1.5V 300MA SC70-5 | |
| PAM3101DUB180 | IC REG LINEAR 1.8V 300MA SC70-5 | |
| PAM3101DUB280 | IC REG LINEAR 2.8V 300MA SC70-5 | |
| PAM3101DUB330 | IC REG LINEAR 3.3V 300MA SC70-5 | |
| ZXCL5213V25H5TA | IC REG LINEAR 2.5V 100MA SC70-5 |
Product Description
Product Details
Description
The ZXCL series have been designed with space sensitive systems in mind. They are available in the ultra small SC70-5 package, which is half the size of SOT23 based regulators.
Features
• Low 85mV dropout at 50mA load• 50A ground pin current with full 150mA load
• 2.5, 2.6, 2.8, 3, & 3.3 volts output
• Very low noise, without bypass capacitor
• 5-pin SC70 and SOT23 package
• No-load stable
Applications
• Cellular and Cordless phones• PDA
• Hand held instruments
• Camera, Camcorder, Personal stereo
• PC cards
• Portable and battery-powered equipment
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Linear Voltage Regulators |
| Series | ZXCL330 |
| Packaging | Cut Tape (CT) Alternate Packaging |
| Unit-Weight | 0.000705 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 5-TSSOP, SC-70-5, SOT-353 |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | SC-70-5 |
| Voltage-Input | Up to 5.5V |
| Number-of-Outputs | 1 Output |
| Current-Output | 150mA |
| Voltage-Output | 3.3V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.14V @ 100mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 160mA |
| Pd-Power-Dissipation | 0.3 W |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 3.3 V |
| Input-Voltage-MAX | 5.5 V |
| Output-Current | 100 mA |
| Input-Voltage-MIN | + 2 V |
| Load-Regulation | 0.04 % / mA |
| Voltage-Regulation-Accuracy | 3 % |
| Package-Case | SC-70-5 |
| Quiescent-Current | 50 uA |
| Dropout-Voltage | 0.14 V at 100 mA |
| Dropout-Voltage-Max | 280 mV at 100 mA |
| Line-Regulation | 0.1 % / V |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 150mA SC-70-5
LDO Regulator Pos 3.3V 0.15A 5-Pin SC-70 T/R
LDO Voltage Regulators 3.3V 150mA Sgl LDO
