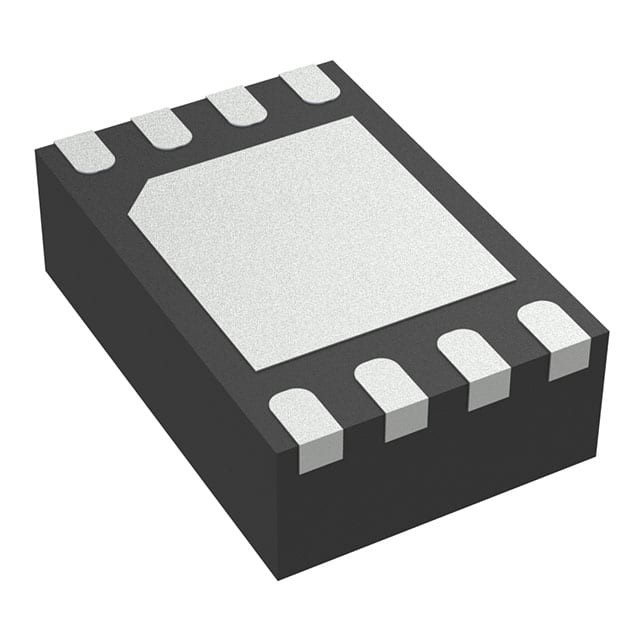

SPX3819R2-L/TR IC REG LINEAR POS ADJ 500MA 8DFN MaxLinear, Inc.
| Brand Name | MaxLinear, Inc. |
|---|---|
| Model Number | SPX3819R2-L/TR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 1.235V | Voltage - Output (Max) | 15.3V |
| Voltage Dropout (Max) | 0.7V @ 500mA | Current - Output | 500mA |
| Current - Quiescent (Iq) | 8 µA | Current - Supply (Max) | 30 MA |
| PSRR | - | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x3) | ||
| Highlight | PMIC Chip,PMIC IC,Power Management Integrated Circuits |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| SPX3819R2-L/TR | IC REG LINEAR POS ADJ 500MA 8DFN | |
| SPX3819R2-L-1-2/TR | IC REG LINEAR 1.2V 500MA 8DFN | |
| SP6205ER-L/TR | IC REG LINEAR POS ADJ 500MA 8DFN | |
| SP6201ER-L/TR | IC REG LINEAR POS ADJ 200MA 8DFN | |
| SP6201ER-L-1-8/TR | IC REG LINEAR 1.8V 200MA 8DFN | |
| SP6201ER-L-3-3/TR | IC REG LINEAR 3.3V 200MA 8DFN | |
| SP6203ER-L/TR | IC REG LINEAR POS ADJ 300MA 8DFN | |
| SP6203ER-L-1-8/TR | IC REG LINEAR 1.8V 300MA 8DFN | |
| SP6205ER-L-1-8/TR | IC REG LINEAR 1.8V 500MA 8DFN | |
| SP6205ER-L-2-5/TR | IC REG LINEAR 2.5V 500MA 8DFN | |
| SPX3819R2-L-1-8/TR | IC REG LINEAR 1.8V 500MA 8DFN | |
| SP6205ER-L-2-5 | IC REG LINEAR 2.5V 500MA 8DFN | |
| SP6205ER-L | IC REG LINEAR POS ADJ 500MA 8DFN | |
| SPX3819R2-L | IC REG LINEAR POS ADJ 500MA 8DFN | |
| SP6203ER-L/MTR | IC REG LINEAR POS ADJ 500MA 8DFN | |
| SP6203ER-L-1-8/MTR | IC REG LINEAR 1.8V 300MA 8DFN | |
| SP6205ER-L/MTR | IC REG LINEAR POS ADJ 500MA 8DFN | |
| SP6205ER-L-2-5/MTR | IC REG LINEAR 2.5V 500MA 8DFN | |
| SPX3819R2-L/MTR | IC REG LINEAR POS ADJ 500MA 8DFN | |
| SP6201ER-L | IC REG LINEAR POS ADJ 200MA 8DFN | |
| SP6201ER-L-1-8 | IC REG LINEAR 1.8V 200MA 8DFN | |
| SP6201ER-L-3-3 | IC REG LINEAR 3.3V 200MA 8DFN | |
| SP6203ER-L | IC REG LINEAR POS ADJ 500MA 8DFN | |
| SP6203ER-L-1-8 | IC REG LINEAR 1.8V 300MA 8DFN | |
| SPX3819R2-L-1-2 | IC REG LINEAR 1.2V 500MA 8DFN | |
| SPX3819R2-L-1-8 | IC REG LINEAR 1.8V 500MA 8DFN |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | MaxLinear |
| Product Category | Linear Voltage Regulators |
| Series | SPX3819 |
| Product | LDO Regulators |
| Type | Low-Noise LDO Voltage Regulator |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.001319 oz |
| Mounting-Style | SMD/SMT |
| Tradename | SIPEX |
| Package-Case | 8-VFDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Supplier-Device-Package | 8-DFN (2x3) |
| Tolerance | 2 % |
| Voltage-Input | 2.5 V ~ 16 V |
| Number-of-Outputs | 1 Output |
| Current-Output | 500mA |
| Voltage-Output | Adjustable |
| Regulator-Topology | Positive Adjustable |
| Voltage-Dropout-Typical | 0.34V @ 500mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Output-Voltage | Adj |
| Input-Voltage-MAX | 16 V |
| Output-Current | 500 mA |
| Input-Voltage-MIN | 2.5 V |
| Load-Regulation | 0.05 % |
| Voltage-Regulation-Accuracy | 1 % |
| Package-Case | DFN-8 |
| Dropout-Voltage-Max | 700 mV |
| Line-Regulation | 0.04 %/V |
| Power Supply Ripple Rejection (PSRR) | 70 dB |
Descriptions
Linear Voltage Regulator IC Positive Adjustable 1 Output Adjustable 500mA 8-DFN (2x3)
LDO Regulator Pos 0.5A 8-Pin DFN EP T/R
LDO Voltage Regulators 500mA LOW NOISE LDO
