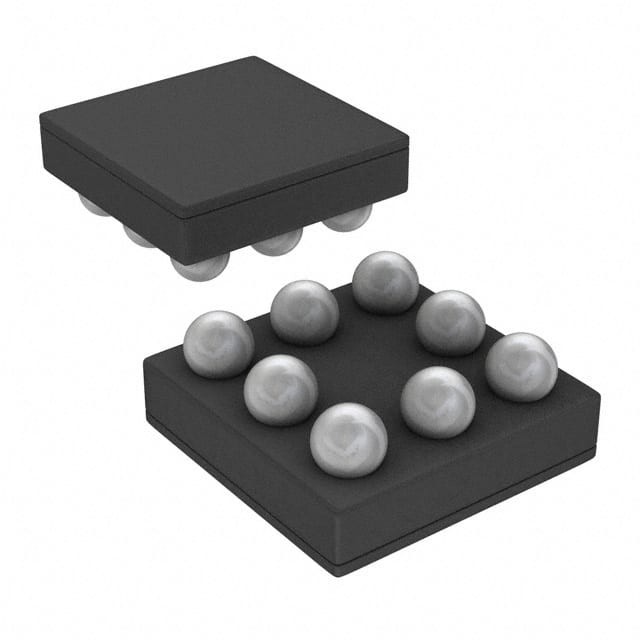

LP3986TLX285285/NOPB IC REG LINEAR 2.85V 150MA 8DSBGA Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | LP3986TLX285285/NOPB |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 2 | Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.85V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA | Current - Output | 150mA |
| Current - Quiescent (Iq) | 130 µA | Current - Supply (Max) | 320 µA |
| PSRR | 60dB ~ 50dB (1kHz ~ 10kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 8-WFBGA, DSBGA |
| Supplier Device Package | 8-DSBGA (1.56x1.56) | ||
| Highlight | PMIC Chip,PMIC IC,Power Management Integrated Circuits |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LP3986TLX285285/NOPB | IC REG LINEAR 2.85V 150MA 8DSBGA | |
| LP3986TL-3030/NOPB | IC REG LINEAR 3V 150MA 8DSBGA | |
| LP3986TL-2828/NOPB | IC REG LINEAR 2.8V 150MA 8DSBGA | |
| LP3986TL-2525/NOPB | IC REG LINEAR 2.5V 150MA 8DSBGA | |
| LP3986TL-2518/NOPB | IC REG LIN 2.5/1.8V 150MA 8DSBGA | |
| LP3986TL-2528/NOPB | IC REG LIN 2.5/2.8V 150MA 8DSBGA | |
| LP3986TL-285285/NOPB | IC REG LINEAR 2.85V 150MA 8DSBGA | |
| LP3986TL-2929/NOPB | IC REG LINEAR 2.9V 150MA 8DSBGA | |
| LP3986TL-3131/NOPB | IC REG LINEAR 3.1V 150MA 8DSBGA | |
| LP3986TL-3133/NOPB | IC REG LIN 3.1/3.3V 150MA 8DSBGA | |
| LP3986TL-3333/NOPB | IC REG LINEAR 3.3V 150MA 8DSBGA | |
| LP3986TL-3028/NOPB | IC REG LIN 3V/2.8V 150MA 8DSBGA | |
| LP3986TL-2626/NOPB | IC REG LINEAR 2.6V 150MA 8DSBGA | |
| LP3986TL-2818/NOPB | IC REG LIN 2.8/1.8V 150MA 8DSBGA | |
| LP3986TLX-2528/NOPB | IC REG LIN 2.5/2.8V 150MA 8DSBGA | |
| LP3986TLX-2828/NOPB | IC REG LINEAR 2.8V 150MA 8DSBGA | |
| LP3986TLX-2929/NOPB | IC REG LINEAR 2.9V 150MA 8DSBGA | |
| LP3986TLX-3030/NOPB | IC REG LINEAR 3V 150MA 8DSBGA | |
| LP3986TLX-3131/NOPB | IC REG LINEAR 3.1V 150MA 8DSBGA | |
| LP3986TLX-3133/NOPB | IC REG LIN 3.1/3.3V 150MA 8DSBGA | |
| LP3986TLX-3333/NOPB | IC REG LINEAR 3.3V 150MA 8DSBGA | |
| LP3986TLX-2518/NOPB | IC REG LIN 2.5/1.8V 150MA 8DSBGA | |
| LP3986TLX-2525/NOPB | IC REG LINEAR 2.5V 150MA 8DSBGA | |
| LP3986TLX-2626/NOPB | IC REG LINEAR 2.6V 150MA 8DSBGA | |
| LP3986TLX-2818/NOPB | IC REG LIN 2.8/1.8V 150MA 8DSBGA | |
| LP3986TLX-3028/NOPB | IC REG LIN 3V/2.8V 150MA 8DSBGA |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| Series | LP3986 |
| Packaging | Tape & Reel (TR) Alternate Packaging |
| Unit-Weight | 0.000081 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-WFBGA, DSBGA |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | 8-DSBGA |
| Voltage-Input | 2.7 V ~ 6 V |
| Number-of-Outputs | 2 Output |
| Current-Output | 150mA |
| Voltage-Output | 2.85V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.06V @ 150mA |
| Number-of-Regulators | 2 Regulators |
| Current-Limit-Min | 300mA |
| Pd-Power-Dissipation | 250 mW |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 2.85 V |
| Input-Voltage-MAX | 6 V |
| Output-Current | 0.5 A (Typ) |
| Input-Voltage-MIN | 2.7 V |
| Voltage-Regulation-Accuracy | +/- 2.5 % |
| Package-Case | DSBGA-8 |
| Ib-Input-Bias-Current | 75 uA |
| Quiescent-Current | 130 uA |
| Dropout-Voltage | 0.0004 V at 1 mA |
| Dropout-Voltage-Max | 0.002 V at 1 mA |
Descriptions
Linear Voltage Regulator IC Positive Fixed 2 Output 2.85V 150mA 8-DSBGA
LDO Regulator Pos 2.85V 0.15A/0.15A 8-Pin DSBGA T/R
LDO Voltage Regulators Dual Micropower 150 mA Ultra Low-Dropout CMOS Voltage Regulators in micro SMD Package 8-DSBGA
