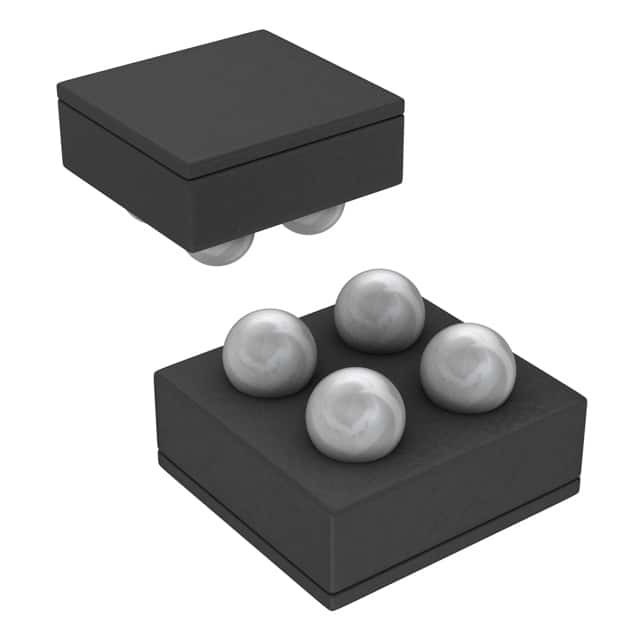

LP5990TMX-3.6/NOPB IC REG LINEAR 3.6V 200MA 4DSBGA Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | LP5990TMX-3.6/NOPB |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.6V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 200mA | Current - Output | 200mA |
| Current - Quiescent (Iq) | 75 µA | Current - Supply (Max) | - |
| PSRR | 55dB (10kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 4-WFBGA, DSBGA |
| Supplier Device Package | 4-DSBGA | ||
| Highlight | PMIC Chip,PMIC IC,Power Management Integrated Circuits |
||
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LP5990TMX-3.6/NOPB | IC REG LINEAR 3.6V 200MA 4DSBGA | |
| LP5904TME-2.85/NOPB | IC REG LINEAR 2.85V 200MA 4DSBGA | |
| LP5990TM-3.0/NOPB | IC REG LINEAR 3V 200MA 4DSBGA | |
| LP5990TMX-2.8/NOPB | IC REG LINEAR 2.8V 200MA 4DSBGA | |
| LP5990TMX-1.2/NOPB | IC REG LINEAR 1.2V 200MA 4DSBGA | |
| LP5990TMX-1.8/NOPB | IC REG LINEAR 1.8V 200MA 4DSBGA | |
| LP5990TMX-3.3/NOPB | IC REG LINEAR 3.3V 200MA 4DSBGA | |
| LP5990TM-2.8/NOPB | IC REG LINEAR 2.8V 200MA 4DSBGA | |
| LP5904TME-2.8/NOPB | IC REG LINEAR 2.8V 200MA 4DSBGA | |
| LP5990TM-1.2/NOPB | IC REG LINEAR 1.2V 200MA 4DSBGA | |
| LP5990TM-1.8/NOPB | IC REG LINEAR 1.8V 200MA 4DSBGA | |
| LP5990TM-3.6/NOPB | IC REG LINEAR 3.6V 200MA 4DSBGA | |
| LP5904TME-3.1/NOPB | IC REG LINEAR 3.1V 200MA 4DSBGA | |
| LP5904TME-1.2/NOPB | IC REG LINEAR 1.2V 200MA 4DSBGA | |
| LP5904TMX-2.8/NOPB | IC REG LINEAR 2.8V 200MA 4DSBGA | |
| LP5904TMX-2.85/NOPB | IC REG LINEAR 2.85V 200MA 4DSBGA | |
| LP5904TMX-3.1/NOPB | IC REG LINEAR 3.1V 200MA 4DSBGA | |
| LP5904TMX-1.2/NOPB | IC REG LINEAR 1.2V 200MA 4DSBGA | |
| LP5990TM-3.3/NOPB | IC REG LINEAR 3.3V 200MA 4DSBGA | |
| LP5990TM-1.3/NOPB | IC REG LINEAR 1.3V 200MA 4DSBGA | |
| LP5990UM-1.8/NOPB | IC REG LINEAR 1.8V 200MA 4DSBGA | |
| LP5990UM-2.5/NOPB | IC REG LINEAR 2.5V 200MA 4DSBGA | |
| LP5990TMX-3.0/NOPB | IC REG LINEAR 3V 200MA 4DSBGA | |
| LP5990TMX-1.3/NOPB | IC REG LINEAR 1.3V 200MA 4DSBGA | |
| LP5990UMX-1.8/NOPB | IC REG LINEAR 1.8V 200MA 4DSBGA | |
| LP5990UMX-2.5/NOPB | IC REG LINEAR 2.5V 200MA 4DSBGA |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| Series | LP5990 |
| Packaging | Tape & Reel (TR) Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 4-WFBGA, DSBGA |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | 4-DSBGA |
| Voltage-Input | Up to 5.5V |
| Number-of-Outputs | 1 Output |
| Current-Output | 200mA |
| Voltage-Output | 3.6V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.16V @ 200mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 3.6 V |
| Input-Voltage-MAX | 5.5 V |
| Output-Current | 0.2 A |
| Input-Voltage-MIN | 2.2 V |
| Load-Regulation | 5 mV |
| Voltage-Regulation-Accuracy | +/- 1 % |
| Package-Case | DSBGA-4 |
| Ib-Input-Bias-Current | 30 uA |
| Quiescent-Current | 75 uA |
| Dropout-Voltage | 0.16 V at 200 mA |
| Dropout-Voltage-Max | 0.25 V at 200 mA |
| Line-Regulation | 1 mV |
Descriptions
LDO Regulator Pos 3.6V 0.2A 4-Pin DSBGA T/R
LDO Voltage Regulators Micropower 200mA Low Dropout Voltage Regulator 4-DSBGA -40 to 125
