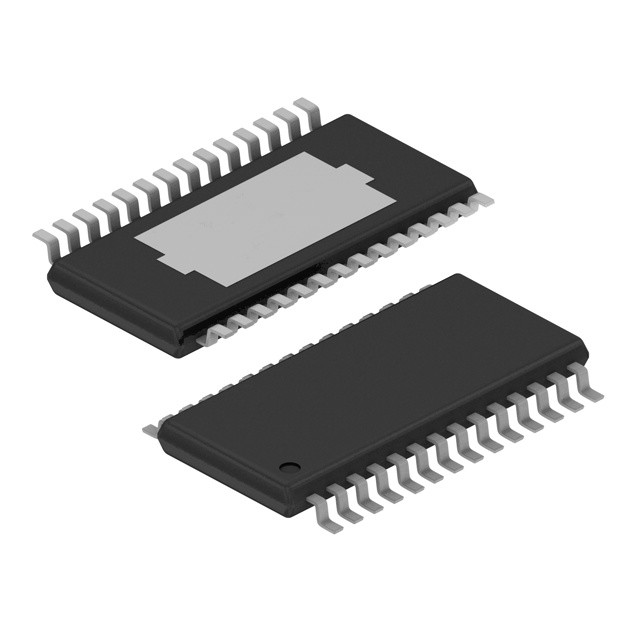

TPS767D301PWPR IC REG LIN POS ADJ 1A 28HTSSOP Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | TPS767D301PWPR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable (Fixed) |
|---|---|---|---|
| Number Of Regulators | 2 | Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 3.3V, 1.5 V ~ 5.5 V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.58V @ 1A | Current - Output | 1A |
| Current - Quiescent (Iq) | 125 µA | Current - Supply (Max) | - |
| PSRR | 60dB (1kHz) | Control Features | Enable, Reset |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 28-PowerTSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 28-HTSSOP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| TPS767D301PWPR | IC REG LIN POS ADJ 1A 28HTSSOP | |
| TPS767D301QPWPRQ1 | IC REG LIN POS ADJ 1A 28HTSSOP | |
| TPS767D318PWPR | IC REG LIN 1.8V/3.3V 1A 28HTSSOP | |
| TPS767D301PWP | IC REG LIN POS ADJ 1A 28HTSSOP | |
| TPS767D318PWP | IC REG LIN 1.8V/3.3V 1A 28HTSSOP | |
| TPS767D325PWP | IC REG LIN 2.5V/3.3V 1A 28HTSSOP | |
| TPS73HD325PWPR | IC REG LIN 2.5/3.3V 28HTSSOP | |
| TPS73HD301PWP | IC REG LIN POS ADJ 28HTSSOP | |
| TPS73HD318PWP | IC REG LIN 1.8/3.3V 28HTSSOP | |
| TPS73HD325PWP | IC REG LIN 2.5/3.3V 28HTSSOP | |
| TPS7B6850QPWPRQ1 | IC REG LINEAR 5V 500MA 28HTSSOP | |
| TPS73HD301PWPR | IC REG LIN POS ADJ 28HTSSOP | |
| TPS767D318QPWPRQ1 | IC REG LIN 1.8V/3.3V 1A 28HTSSOP | |
| TPS767D301MPWPREP | IC REG LIN POS ADJ 1A 28HTSSOP | |
| TPS7B6833QPWPRQ1 | IC REG LIN 3.3V 500MA 28HTSSOP | |
| TPS73HD318PWPR | IC REG LIN 1.8/3.3V 28HTSSOP | |
| TPS767D325PWPR | IC REG LIN 2.5V/3.3V 1A 28HTSSOP | |
| TPS767D325QPWPRQ1 | IC REG LIN 2.5V/3.3V 1A 28HTSSOP | |
| TPS767D325QPWPREP | IC REG LIN 2.5V/3.3V 1A 28HTSSOP | |
| TPS73HD325PWPG4 | IC REG LIN 2.5/3.3V 28HTSSOP | |
| TPS767D301PWPG4 | IC REG LIN POS ADJ 1A 28HTSSOP | |
| TPS767D301PWPRG4 | IC REG LIN POS ADJ 1A 28HTSSOP | |
| TPS767D318PWPG4 | IC REG LIN 1.8V/3.3V 1A 28HTSSOP | |
| TPS767D318PWPRG4 | IC REG LIN 1.8V/3.3V 1A 28HTSSOP | |
| TPS767D325PWPRG4 | IC REG LDO 2.5V/3.3V 1A 28HTSSOP | |
| TPS767D325PWPG4 | IC REG LIN 2.5V/3.3V 1A 28HTSSOP |
