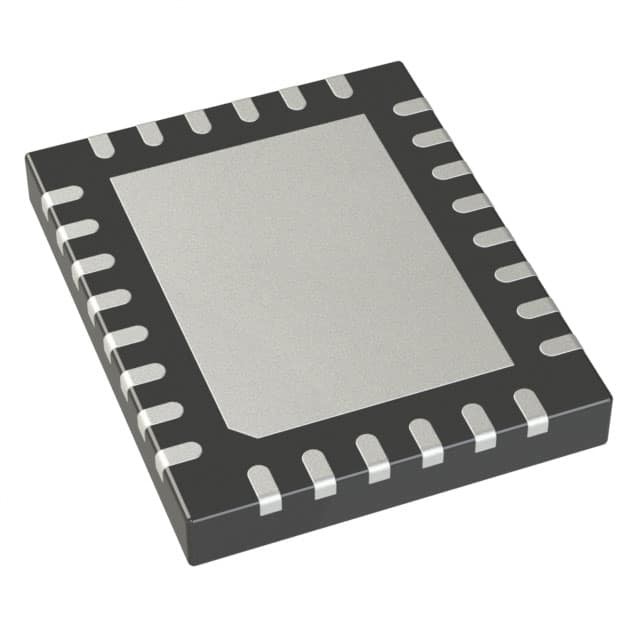

LT3070EUFD#TRPBF IC REG LIN POS PROG 5A 28QFN Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | LT3070EUFD#TRPBF |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Programmable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 3V |
| Voltage - Output (Min/Fixed) | 0.8V | Voltage - Output (Max) | 1.8V |
| Voltage Dropout (Max) | 0.15V @ 5A | Current - Output | 5A |
| Current - Quiescent (Iq) | 1.5 MA | Current - Supply (Max) | 10 MA |
| PSRR | 66dB (120Hz) | Control Features | Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-QFN (4x5) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LT3070EUFD#TRPBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3071EUFD#TRPBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3070EUFD#PBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3030EUFD#PBF | IC REG LINEAR POS ADJ 28QFN | |
| LT3070EUFD-1#PBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3070IUFD#PBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3071IUFD#PBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3071EUFD#PBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3070MPUFD-1#PBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3070IUFD#TRPBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3030IUFD#PBF | IC REG LINEAR POS ADJ 28QFN | |
| LT3030HUFD#PBF | IC REG LINEAR POS ADJ 28QFN | |
| LT3071MPUFD#PBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3070MPUFD#PBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3070IUFD-1#PBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3030EUFD#TRPBF | IC REG LINEAR POS ADJ 28QFN | |
| LT3030IUFD#TRPBF | IC REG LINEAR POS ADJ 28QFN | |
| LT3030HUFD#TRPBF | IC REG LINEAR POS ADJ 28QFN | |
| LT3070EUFD-1#TRPBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3071IUFD#TRPBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3070IUFD-1#TRPBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3070MPUFD#TRPBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3071MPUFD#TRPBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3070MPUFD-1#TRPBF | IC REG LIN POS PROG 5A 28QFN | |
| LT3070IUFD | IC REG LIN POS PROG 5A 28QFN | |
| LT3070MPUFD | IC REG LIN POS PROG 5A 28QFN |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices / Linear Technology |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Tape & Reel (TR) Alternate Packaging |
| Package-Case | 28-WFQFN Exposed Pad |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | 28-QFN (4x5) |
| Voltage-Input | 0.95 V ~ 3 V |
| Current-Output | 5A |
| Voltage-Output | 0.8 V ~ 1.8 V |
| Regulator-Topology | Positive Adjustable |
| Voltage-Dropout-Typical | 0.085V @ 5A |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 5.1A |
Descriptions
Linear Voltage Regulator IC 1 Output 5A 28-QFN (4x5)
LT3070 - 5A, Low Noise, Programmable Output, 85mV Dropout Linear Regulator
