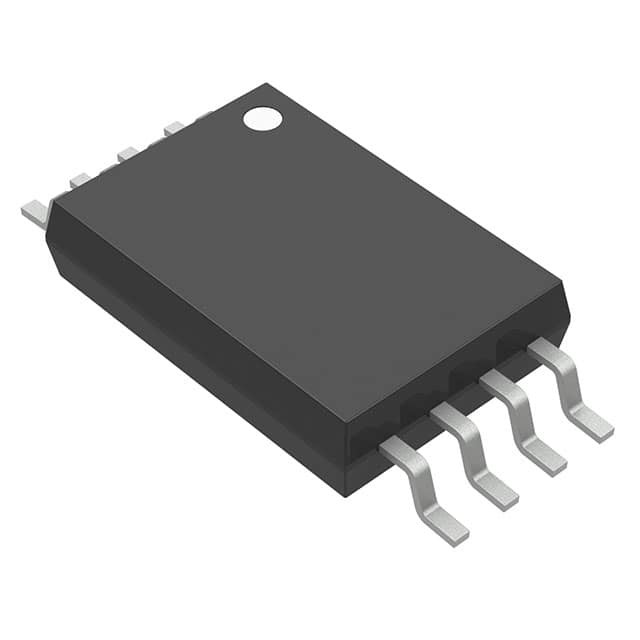

LM317LCPW IC REG LIN POS ADJ 100MA 8TSSOP Texas Instruments
| Brand Name | Texas Instruments |
|---|---|
| Model Number | LM317LCPW |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 38V |
| Voltage - Output (Min/Fixed) | 1.2V | Voltage - Output (Max) | 32V |
| Voltage Dropout (Max) | - | Current - Output | 100mA |
| Current - Quiescent (Iq) | 2.5 MA | Current - Supply (Max) | - |
| PSRR | 80dB ~ 65dB (120Hz) | Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LM317LCPW | IC REG LIN POS ADJ 100MA 8TSSOP | |
| LM317LCPWR | IC REG LIN POS ADJ 100MA 8TSSOP | |
| LM317LIPW | IC REG LIN POS ADJ 100MA 8TSSOP | |
| TL317CPWR | IC REG LIN POS ADJ 100MA 8TSSOP | |
| LM317LIPWR | IC REG LIN POS ADJ 100MA 8TSSOP | |
| TPS7201QPWR | IC REG LIN POS ADJ 250MA 8TSSOP | |
| TPS7225QPWR | IC REG LINEAR 2.5V 250MA 8TSSOP | |
| TPS7230QPWR | IC REG LINEAR 3V 250MA 8TSSOP | |
| TPS7233QPWR | IC REG LINEAR 3.3V 250MA 8TSSOP | |
| TPS7250QPWR | IC REG LINEAR 5V 250MA 8TSSOP | |
| TPS7201QPW | IC REG LIN POS ADJ 250MA 8TSSOP | |
| UCC388PW | IC 200MA LDO LINEAR REG 8-TSSOP | |
| UCC386PW | IC 200MA LDO LINEAR REG 8-TSSOP | |
| UCC387PW | IC 200MA LDO LINEAR REG 8-TSSOP | |
| LM317LCPWE4 | IC REG LIN POS ADJ 100MA 8TSSOP | |
| LM317LCPWRE4 | IC REG LIN POS ADJ 100MA 8TSSOP | |
| TPS7201QPWG4 | IC REG LIN POS ADJ 250MA 8TSSOP | |
| TPS7233QPW | IC REG LINEAR 3.3V 250MA 8TSSOP | |
| TPS7233QPWG4 | IC REG LINEAR 3.3V 250MA 8TSSOP | |
| TPS7248QPW | IC REG LINEAR 4.85V 250MA 8TSSOP | |
| TL317CPW | IC REG LIN POS ADJ 100MA 8TSSOP | |
| TL317CPWE4 | IC REG LIN POS ADJ 100MA 8TSSOP | |
| TL317CPWRE4 | IC REG LIN POS ADJ 100MA 8TSSOP | |
| LM317LCPWRG4 | IC REG LIN POS ADJ 100MA 8TSSOP | |
| TL317CPWG4 | IC REG LIN POS ADJ 100MA 8TSSOP | |
| TL317CPWRG4 | IC REG LIN POS ADJ 100MA 8TSSOP | |
| TPS7250QPW | IC REG LINEAR 5V 250MA 8TSSOP |
Product Description
Product Details
DESCRIPTION
The Contek LM317L is a monolithic integrated circuit, designed for use as positive adjustable voltage regulator. It is designed to supply until 100mA of load current with an output voltage adjustable over a 1.25V to 37V range.
FEATURES
* Output voltage range: 1.25V to 37V* Output current in excess of 100mA
* Line regulation typ. 0.01%
* Load regulation typ. 0.1%
* Thermal overload protection
* Short circuit protection
* Output transistor safe area compensation
* Floating operation for high voltage applications
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Texas Instruments |
| Product Category | Linear Voltage Regulators |
| Series | LM317L |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.001376 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-TSSOP (0.173", 4.40mm Width) |
| Operating-Temperature | 0°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Supplier-Device-Package | 8-TSSOP |
| Voltage-Input | 3.7 V ~ 38 V |
| Number-of-Outputs | 1 Output |
| Current-Output | 100mA |
| Voltage-Output | 1.2 V ~ 32 V |
| Regulator-Topology | Positive Adjustable |
| Voltage-Dropout-Typical | - |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | 0 C |
| Polarity | Positive |
| Output-Voltage | 1.2 V to 32 V |
| Input-Voltage-MAX | 35 V |
| Output-Current | 100 mA |
| Input-Voltage-MIN | 4.2 V |
| Load-Regulation | 0.5 % |
| Package-Case | TSSOP-8 |
| Line-Regulation | 0.02 % / V |
| Power Supply Ripple Rejection (PSRR) | 80 dB |
Descriptions
Standard Regulator Pos 1.2V to 32V 0.1A 8-Pin TSSOP Tube
Linear Voltage Regulators 3-Trm 100mA Adj Pos Voltage Regulator
