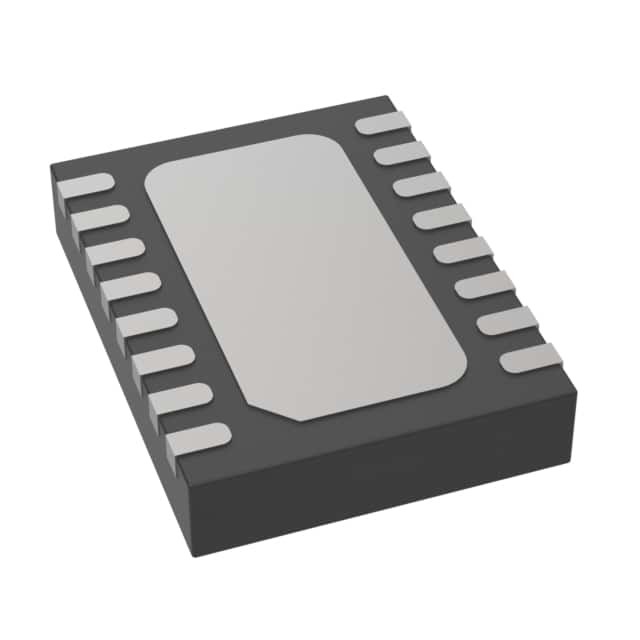

LT3055EDE#TRPBF IC REG LIN POS ADJ 500MA 16DFN Analog Devices Inc.
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | LT3055EDE#TRPBF |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 0.6V | Voltage - Output (Max) | 40V |
| Voltage Dropout (Max) | 0.59V @ 500mA | Current - Output | 500mA |
| Current - Quiescent (Iq) | 130 µA | Current - Supply (Max) | 25 MA |
| PSRR | 85dB (120Hz) | Control Features | Current Limit, Enable, Power Good, Soft Start |
| Protection Features | Over Current, Over Temperature, Reverse Polarity | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 16-WFDFN Exposed Pad |
| Supplier Device Package | 16-DFN (4x3) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LT3055EDE#TRPBF | IC REG LIN POS ADJ 500MA 16DFN | |
| LT3029EDE#PBF | IC REG LINEAR POS ADJ 16DFN | |
| LT3029IDE#PBF | IC REG LINEAR POS ADJ 16DFN | |
| LT3055EDE#PBF | IC REG LIN POS ADJ 500MA 16DFN | |
| LT3055IDE#PBF | IC REG LIN POS ADJ 500MA 16DFN | |
| LT3029HDE#PBF | IC REG LINEAR POS ADJ 16DFN | |
| LT3055EDE-5#PBF | IC REG LINEAR 5V 500MA 16DFN | |
| LT3055EDE-3.3#PBF | IC REG LINEAR 3.3V 500MA 16DFN | |
| LT3055IDE-3.3#PBF | IC REG LINEAR 3.3V 500MA 16DFN | |
| LT3055IDE-5#PBF | IC REG LINEAR 5V 500MA 16DFN | |
| LT3029EDE#TRPBF | IC REG LINEAR POS ADJ 16DFN | |
| LT3055EDE-3.3#TRPBF | IC REG LINEAR 3.3V 500MA 16DFN | |
| LT3055EDE-5#TRPBF | IC REG LINEAR 5V 500MA 16DFN | |
| LT3055IDE#TRPBF | IC REG LIN POS ADJ 500MA 16DFN | |
| LT3055IDE-3.3#TRPBF | IC REG LINEAR 3.3V 500MA 16DFN | |
| LT3055IDE-5#TRPBF | IC REG LINEAR 5V 500MA 16DFN | |
| LT3029IDE#TRPBF | IC REG LINEAR POS ADJ 16DFN | |
| LT3029HDE#TRPBF | IC REG LINEAR POS ADJ 16DFN | |
| LT3029EDE | IC REG LIN POS ADJ 500MA 16DFN | |
| LT3029HDE | IC REG LIN POS ADJ 500MA 16DFN | |
| LT3029IDE | IC REG LIN POS ADJ 500MA 16DFN | |
| LT3055EDE | IC REG LIN POS ADJ 500MA 16DFN | |
| LT3055EDE-3.3 | IC REG LINEAR 3.3V 500MA 16DFN | |
| LT3055EDE-5 | IC REG LINEAR 5V 500MA 16DFN | |
| LT3055IDE | IC REG LIN POS ADJ 500MA 16DFN | |
| LT3055IDE-3.3 | IC REG LINEAR 3.3V 500MA 16DFN | |
| LT3055IDE-5 | IC REG LINEAR 5V 500MA 16DFN |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices / Linear Technology |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Tape & Reel (TR) Alternate Packaging |
| Package-Case | 16-WFDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | 16-DFN (4x3) |
| Voltage-Input | 2 V ~ 45 V |
| Current-Output | 500mA |
| Voltage-Output | 0.6 V ~ 40 V |
| Regulator-Topology | Positive Adjustable |
| Voltage-Dropout-Typical | 0.35V @ 500mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 520mA |
Descriptions
Linear Voltage Regulator IC Positive Adjustable 1 Output 0.6 V ~ 40 V 500mA 16-DFN (4x3)
LT3055 Series - 500mA, Linear Regulator with Precision Current Limit and Diagnostics
