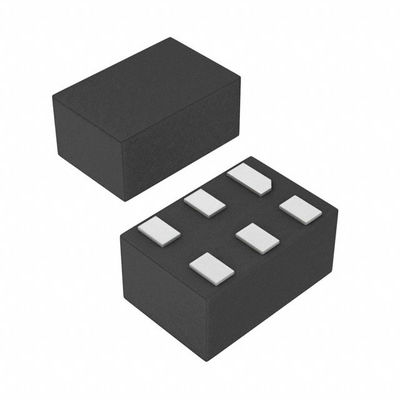

MAX8842ELT+T IC REG LIN POS ADJ 150MA 6UDFN Analog Devices Inc./Maxim Integrated
| Brand Name | Analog Devices Inc./Maxim Integrated |
|---|---|
| Model Number | MAX8842ELT+T |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.225V | Voltage - Output (Max) | 4.5V |
| Voltage Dropout (Max) | - | Current - Output | 150mA |
| Current - Quiescent (Iq) | 90 µA | Current - Supply (Max) | - |
| PSRR | 72dB ~ 46dB (1kHz ~ 100kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Package / Case | 6-WFDFN |
| Supplier Device Package | 6-uDFN (1.5x1) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MAX8842ELT+T | IC REG LIN POS ADJ 150MA 6UDFN | |
| MAX8840ELT18+T | IC REG LINEAR 1.8V 150MA 6UDFN | |
| MAX8840ELT19+T | IC REG LINEAR 1.9V 150MA 6UDFN | |
| MAX8840ELT30+T | IC REG LINEAR 3V 150MA 6UDFN | |
| MAX8840ELT15+T | IC REG LINEAR 1.5V 150MA 6UDFN | |
| MAX8840ELT33+T | IC REG LINEAR 3.3V 150MA 6UDFN | |
| MAX8840ELT28+T | IC REG LINEAR 2.8V 150MA 6UDFN | |
| MAX8841ELT18+T | IC REG LINEAR 1.8V 150MA 6UDFN | |
| MAX8840ELT40+T | IC REG LINEAR 4V 150MA 6UDFN | |
| MAX8840ELT29+T | IC REG LINEAR 2.85V 150MA 6UDFN | |
| MAX8840ELT25+T | IC REG LINEAR 2.5V 150MA 6UDFN | |
| MAX8840ELTXY+T | IC REG LIN POS ADJ 150MA 6UDFN | |
| MAX8840ELT21+T | IC REG LINEAR 2.1V 150MA 6UDFN | |
| MAX8840ELT16+T | IC REG LINEAR 1.6V 150MA 6UDFN | |
| MAX8840ELT45+TG65 | IC REG LINEAR 4.5V 150MA 6UDFN | |
| MAX8840ELT45+T | IC REG LINEAR 4.5V 150MA 6UDFN | |
| MAX8840ELT26+T | IC REG LINEAR 2.6V 150MA 6UDFN | |
| MAX8840ELT27+TG65 | IC REG LINEAR 2.7V 150MA 6UDFN | |
| MAX8841ELT28+T | IC REG LINEAR 2.8V 150MA 6UDFN | |
| MAX8840ELT26+ | IC REG LINEAR 2.6V 150MA 6UDFN | |
| MAX8840ELT27+G65 | IC REG LINEAR 2.7V 150MA 6UDFN | |
| MAX8841ELT28+ | IC REG LINEAR 2.8V 150MA 6UDFN | |
| MAX8840ELT25+ | IC REG LINEAR 2.5V 150MA 6UDFN | |
| MAX8841ELT29+T | IC REG LINEAR 2.85V 150MA 6UDFN | |
| MAX8841ELT33+T | IC REG LINEAR 3.3V 150MA 6UDFN | |
| MAX8841ELT15+T | IC REG LINEAR 1.5V 150MA 6UDFN | |
| MAX8841ELT25+T | IC REG LINEAR 2.5V 150MA 6UDFN | |
| MAX8840ELT27+T | IC REG LINEAR 2.7V 150MA 6UDFN |
Product Description
Product Details
General Description
The MAX8840/MAX8841/MAX8842 ultra-low-noise, low-dropout (LDO) linear regulators are designed to deliver up to 150mA continuous output current. These regulators achieve a low 120mV dropout for 120mA load current. The MAX8840 uses an advanced architecture to achieve ultra-low output voltage noise of 11µVRMS and PSRR of 54dB at 100kHz.
Features
♦ Space-Saving 1.0mm x 1.5mm x 0.8mm µDFN♦ 11µVRMS Output Noise at 100Hz to 100kHz Bandwidth (MAX8840)
♦ 78dB PSRR at 1kHz (MAX8840)
♦ 120mV Dropout at 120mA Load
♦ Stable with 1µF Ceramic Capacitor for Any Load
♦ Guaranteed 150mA Output
♦ Only Need Input and Output Capacitors (MAX8841)
♦ Output Voltages: 1.5V, 1.8V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 3V, 3.3V, 4.5V (MAX8840/MAX8841) and Adjustable (MAX8842)
♦ Low 40µA Ground Current
♦ Excellent Load/Line Transient
♦ Overcurrent and Thermal Protection
Applications
Cellular and Cordless PhonesPDA and Palmtop Computers
Base Stations
Bluetooth Portable Radios and Accessories
Wireless LANs
Digital Cameras
Personal Stereos
Portable and Battery-Powered Equipment
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Maxim Integrated |
| Product Category | Linear Voltage Regulators |
| Series | MAX8842 |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 6-WFDFN |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Supplier-Device-Package | 6-uDFN (1.5x1.0) |
| Voltage-Input | 2 V ~ 6 V |
| Number-of-Outputs | 1 Output |
| Current-Output | 150mA |
| Voltage-Output | 1.5 V ~ 4.5 V |
| Regulator-Topology | Positive Adjustable |
| Voltage-Dropout-Typical | 0.12V @ 120mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 150mA |
| Pd-Power-Dissipation | 1.68 W |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 1.225 V to 5 V |
| Input-Voltage-MAX | 6 V |
| Output-Current | 150 mA |
| Input-Voltage-MIN | + 2 V |
| Load-Regulation | 0.003 % / mA |
| Voltage-Regulation-Accuracy | 2 % |
| Part-#-Aliases | MAX8842 |
| Package-Case | UDFN-6 |
| Ib-Input-Bias-Current | 220 uA |
| Reference-Voltage | 1.225 V |
| Dropout-Voltage | 0.12 V at 120 mA |
| Line-Regulation | 0.001 % / V |
Descriptions
Linear Voltage Regulator IC Positive Adjustable 1 Output 1.5 V ~ 4.5 V 150mA 6-uDFN (1.5x1.0)
LDO Voltage Regulators PSRR 150mA Linear Regulator
