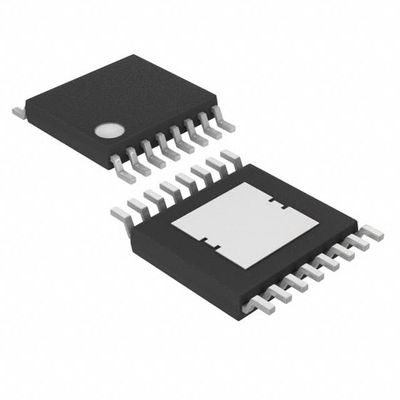

MAX8869EUE18+T IC REG LIN POS ADJ 1A 16TSSOP Analog Devices Inc./Maxim Integrated
| Brand Name | Analog Devices Inc./Maxim Integrated |
|---|---|
| Model Number | MAX8869EUE18+T |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable (Fixed) |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.8V (1.8V) | Voltage - Output (Max) | 5V |
| Voltage Dropout (Max) | - | Current - Output | 1A |
| Current - Quiescent (Iq) | 2 MA | Current - Supply (Max) | 2.5 MA |
| PSRR | 54dB (100kHz) | Control Features | Enable, Reset, Soft Start |
| Protection Features | Over Current, Over Temperature, Short Circuit | Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Package / Case | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 16-TSSOP-EP |
