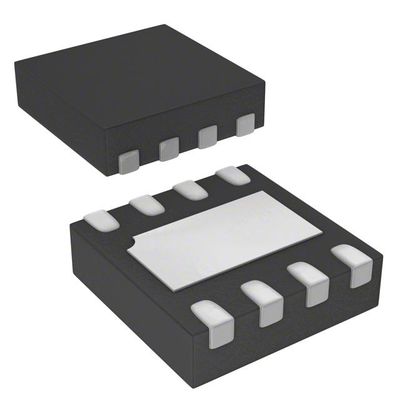

AP7361-FGE-7 IC REG LINEAR POS ADJ 1A 8UDFN Diodes Incorporated
| Brand Name | Diodes Incorporated |
|---|---|
| Model Number | AP7361-FGE-7 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1V | Voltage - Output (Max) | 5.5V |
| Voltage Dropout (Max) | 0.7V @ 1A | Current - Output | 1A |
| Current - Quiescent (Iq) | 90 µA | Current - Supply (Max) | - |
| PSRR | 65dB ~ 45dB (1kHz ~ 10kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 8-UDFN Exposed Pad |
| Supplier Device Package | U-DFN3030-8 (Type E) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| AP7361-FGE-7 | IC REG LINEAR POS ADJ 1A 8UDFN | |
| AP7361-33FGE-7 | IC REG LINEAR 3.3V 1A 8UDFN | |
| AP7361C-33FGE-7 | IC REG LINEAR 3.3V 1A 8UDFN | |
| AP7361E-12FGE-7 | LDO CMOS HICURR U-DFN3030-8 T&R | |
| AP7361E-25FGE-7 | LDO CMOS HICURR U-DFN3030-8 T&R | |
| AP7361C-25FGE-7 | IC REG LINEAR 2.5V 1A 8UDFN | |
| AP7361E-28FGE-7 | LDO CMOS HICURR U-DFN3030-8 T&R | |
| AP7361-18FGE-7 | IC REG LINEAR 1.8V 1A 8UDFN | |
| AP7361E-18FGE-7 | LDO CMOS HICURR U-DFN3030-8 T&R | |
| AP7361E-15FGE-7 | LDO CMOS HICURR U-DFN3030-8 T&R | |
| AP7361E-10FGE-7 | LDO CMOS HICURR U-DFN3030-8 T&R | |
| AP7361EA-FGE-7 | LDO CMOS HICURR U-DFN3030-8 T&R | |
| AP7361-15FGE-7 | IC REG LINEAR 1.5V 1A 8UDFN | |
| AP7361C-FGE-7 | IC REG LINEAR POS ADJ 1A 8UDFN | |
| AP7361E-FGE-7 | IC REG LINEAR POS ADJ 1A 8UDFN | |
| AP7361E-33FGE-7 | LDO CMOS HICURR U-DFN3030-8 T&R | |
| AP7361EA-18FGE-7 | LDO CMOS HICURR U-DFN3030-8 T&R | |
| AP7361EA-33FGE-7 | LDO CMOS HICURR U-DFN3030-8 T&R | |
| AP7361EA-10FGE-7 | LDO CMOS HICURR U-DFN3030-8 T&R | |
| AP7361-10FGE-7 | IC REG LINEAR 1V 1A 8UDFN | |
| AP7361-12FGE-7 | IC REG LINEAR 1.2V 1A 8UDFN | |
| AP7361-25FGE-7 | IC REG LINEAR 2.5V 1A 8UDFN | |
| AP7361-28FGE-7 | IC REG LINEAR 2.8V 1A 8UDFN | |
| AP7361C-10FGE-7 | IC REG LINEAR 1V 1A 8UDFN | |
| AP7361C-12FGE-7 | IC REG LINEAR 1.2V 1A 8UDFN | |
| AP7361C-15FGE-7 | IC REG LINEAR 1.5V 1A 8UDFN | |
| AP7361C-18FGE-7 | IC REG LINEAR 1.8V 1A 8UDFN | |
| AP7361C-28FGE-7 | IC REG LINEAR 2.8V 1A 8UDFN |
Product Description
Product Details
Description
The AP7361 is a 1A, adjustable and fixed output voltage, ultra-low dropout linear regulator with enable. The device includes pass element, error amplifier, band-gap reference, current limit and thermal shutdown circuitry. The device is turned on when the EN pin is set to logic high level.
Features
◆ Wide input voltage range: 2.2V - 6V
◆ 150mV Very Low Dropout at 300mA Load
◆ 500mV Very Low Dropout at 1A Load
◆ Low Quiescent Current (IQ): 70µA Typical
◆ Adjustable Output Voltage Range: 1V to 5.0V
◆ Fixed Output Options: 1V to 3.3V
◆ Very-Fast Transient Response
◆ High PSRR
◆ Accurate Voltage Regulation
◆ Current Limiting and Short Circuit Protection
◆ Thermal Shutdown Protection
◆ Stable with Ceramic Output Capacitor 2.2µF
◆ Ambient Temperature Range -40°C to +85°C
◆ U-DFN3030-8, SOT89-5, SOT223/SOT223R, TO252/TO252R and SO-8EP
◆ Available in “Green” Molding Compound (No Br, Sb)
◆ Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
◆ Halogen and Antimony Free. “Green” Device (Note 3)
Applications
◆ Servers and Laptops
◆ FPGA and DSP Core or I/O Power
◆ TV, and Home Electrical Appliances
◆ Battery-Powered Devices
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Diodes Incorporated |
| Product Category | Linear Voltage Regulators |
| Series | AP7361 |
| Product | LDO Regulators |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 8-UDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Output-Type | Adjustable |
| Supplier-Device-Package | U-DFN3030-8 |
| Voltage-Input | 2.2 V ~ 6 V |
| Number-of-Outputs | 1 Output |
| Current-Output | 1A |
| Voltage-Output | 0.8 V ~ 5.5 V |
| Regulator-Topology | Positive Adjustable |
| Voltage-Dropout-Typical | 0.5V @ 1A |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 1.1A |
| Pd-Power-Dissipation | 1700 mW |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 1 V to 5 V |
| Input-Voltage-MAX | 6 V |
| Output-Current | 1 A |
| Input-Voltage-MIN | 2.2 V |
| Load-Regulation | 0.5 % |
| Voltage-Regulation-Accuracy | 2 % |
| Package-Case | UDFN-3030-8 |
| Dropout-Voltage-Max | 700 mV |
| Line-Regulation | 0.01 %/V |
| Power Supply Ripple Rejection (PSRR) | 65 dB |
Descriptions
Linear Voltage Regulator IC Positive Adjustable 1 Output 0.8 V ~ 5.5 V 1A U-DFN3030-8 (Type E)
LDO Regulator Pos 1V to 5V 1A 8-Pin DFN EP T/R
LDO Voltage Regulators 1V to 5.0V ADJ 1A 150mV 300mA 70uA
