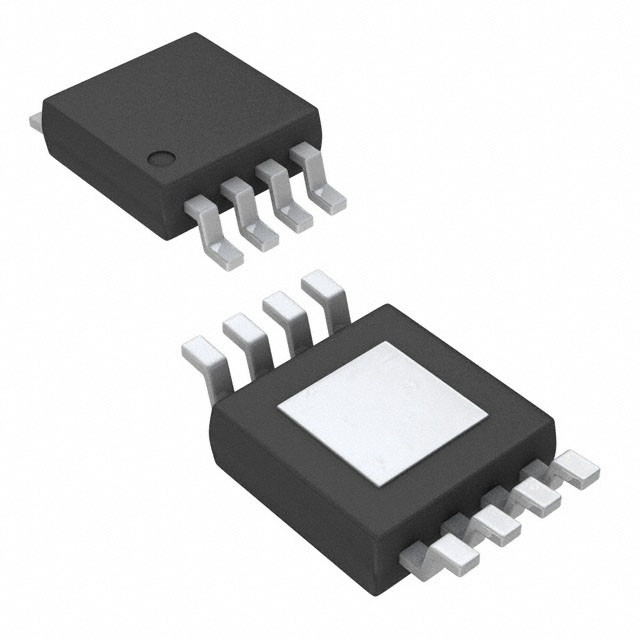

RT9069-50GSP IC REG LINEAR 5V 200MA 8SOP Richtek USA Inc.
| Brand Name | Richtek USA Inc. |
|---|---|
| Model Number | RT9069-50GSP |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 5V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.36V @ 10mA | Current - Output | 200mA |
| Current - Quiescent (Iq) | 3.5 µA | Current - Supply (Max) | 5 µA |
| PSRR | - | Control Features | Enable |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOP-EP |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| RT9069-50GSP | IC REG LINEAR 5V 200MA 8SOP | |
| RT9069-25GSP | IC REG LINEAR 2.5V 200MA 8SOP | |
| RTQ2516GSP-QT | IC REG LIN ADJ 2A PSOP-8 | |
| RT9059GSP | IC REG LINEAR POS ADJ 3A 8SOP | |
| RT9069-90GSP | IC REG LINEAR 9V 200MA 8SOP | |
| RT9018B-18GSP | IC REG LIN POS ADJ 3A 8SOP | |
| RT9025-18GSP | IC REG LIN POS ADJ 2A 8SOP | |
| RT9025-25GSP | IC REG LIN POS ADJ 2A 8SOP | |
| RT9018A-10GSP | IC REG LIN POS ADJ 3A 8SOP | |
| RT9018A-1KGSP | IC REG LIN POS ADJ 3A 8SOP | |
| RT9018B-10GSP | IC REG LIN POS ADJ 3A 8SOP | |
| RT9018B-12GSP | IC REG LIN POS ADJ 3A 8SOP | |
| RT9018B-15GSP | IC REG LIN POS ADJ 3A 8SOP | |
| RT9018B-1KGSP | IC REG LIN POS ADJ 3A 8SOP | |
| RT9018B-25GSP | IC REG LIN POS ADJ 3A 8SOP | |
| RT9025-12GSP | IC REG LIN POS ADJ 2A 8SOP | |
| RT9025-12ZSP | IC REG LIN POS ADJ 2A 8SOP | |
| RT9025-18ZSP | IC REG LIN POS ADJ 2A 8SOP | |
| RT9025-1KGSP | IC REG LIN POS ADJ 2A 8SOP | |
| RT9025-1KZSP | IC REG LIN POS ADJ 2A 8SOP | |
| RT9025-25ZSP | IC REG LIN POS ADJ 2A 8SOP | |
| RT9018A-12GSP | IC REG LIN POS ADJ 3A 8SOP | |
| RT9018A-15GSP | IC REG LIN POS ADJ 3A 8SOP | |
| RT9018A-18GSP | IC REG LINEAR POS ADJ 3A 8SOP | |
| RT9018A-25GSP | IC REG LIN POS ADJ 3A 8SOP | |
| RT9042-25GSP | IC REG LIN POS ADJ 3A 8SOP | |
| RT9069-33GSP | IC REG LINEAR 3.3V 200MA 8SOP | |
| RT9069-C0GSP | IC REG LINEAR 12V 200MA 8SOP | |
| RT9074-33GSP | IC REG LINEAR 3.3V 100MA 8SOP | |
| RT9187GSP | IC REG LINEAR POS ADJ 1A 8SOP |
Product Description
Product Details
General Description
The RT9001 series are CMOS low dropout regulators optimized for ultra-fast transient response. The devices are capable of supplying 600mA of output current with a dropout voltage of 580mV respectively.
Features
• Low Quiescent Current (Typically 220μA)• Guaranteed 600mA Output Current
• Low Dropout Voltage : 580mV at 600mA
• Wide Operating Voltage Ranges : 3V to 5.5V
• Ultra-Fast Transient Response
• Tight Load and Line Regulation
• Current Limiting Protection
• Thermal Shutdown Protection
• Only low-ESR Ceramic Capacitor Required for Stability
• Custom Voltage Available
• RoHS Compliant and 100% Lead (Pb)-Free
Applications
• CD/DVD-ROM, CD/RW• Wireless LAN Card/Keyboard/Mouse
• Battery-Powered Equipment
• XDSL Router
• PCMCIA Card
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Richtek |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Alternate Packaging |
| Package-Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | 8-SOP-EP |
| Voltage-Input | Up to 36V |
| Current-Output | 200mA |
| Voltage-Output | 5V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.2V @ 10mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 200mA |
