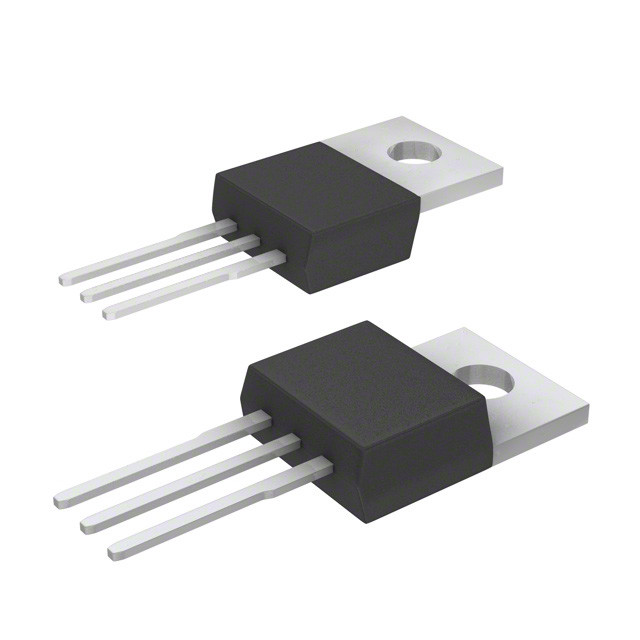

TC1262-3.3VAB IC REG LINEAR 3.3V 500MA TO220-3 Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | TC1262-3.3VAB |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.65V @ 500mA | Current - Output | 500mA |
| Current - Quiescent (Iq) | 130 µA | Current - Supply (Max) | - |
| PSRR | 64dB (1kHz) | Control Features | - |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Package / Case | TO-220-3 |
| Supplier Device Package | TO-220-3 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| TC1262-3.3VAB | IC REG LINEAR 3.3V 500MA TO220-3 | |
| MCP1826S-1202E/AB | IC REG LINEAR 1.2V 1A TO220-3 | |
| MCP1825S-3302E/AB | IC REG LINEAR 3.3V 500MA TO220-3 | |
| MCP1826S-3002E/AB | IC REG LINEAR 3V 1A TO220-3 | |
| MCP1826S-5002E/AB | IC REG LINEAR 5V 1A TO220-3 | |
| MCP1826S-1802E/AB | IC REG LINEAR 1.8V 1A TO220-3 | |
| MCP1827S-3302E/AB | IC REG LINEAR 3.3V 1.5A TO220-3 | |
| MCP1825S-3002E/AB | IC REG LINEAR 3V 500MA TO220-3 | |
| MCP1825S-2502E/AB | IC REG LINEAR 2.5V 500MA TO220-3 | |
| MCP1826S-2502E/AB | IC REG LINEAR 2.5V 1A TO220-3 | |
| MCP1827S-2502E/AB | IC REG LINEAR 2.5V 1.5A TO220-3 | |
| MCP1827S-3002E/AB | IC REG LINEAR 3V 1.5A TO220-3 | |
| MCP1827S-5002E/AB | IC REG LINEAR 5V 1.5A TO220-3 | |
| TC1262-3.0VAB | IC REG LINEAR 3V 500MA TO220-3 | |
| TC1264-3.3VAB | IC REG LINEAR 3.3V 800MA TO220-3 | |
| MCP1825S-0802E/AB | IC REG LINEAR 0.8V 500MA TO220-3 | |
| MCP1826S-0802E/AB | IC REG LINEAR 0.8V 1A TO220-3 | |
| MCP1826S-3302E/AB | IC REG LINEAR 3.3V 1A TO220-3 | |
| MCP1825S-5002E/AB | IC REG LINEAR 5V 500MA TO220-3 | |
| MCP1827S-1202E/AB | IC REG LINEAR 1.2V 1.5A TO220-3 | |
| MCP1827S-1802E/AB | IC REG LINEAR 1.8V 1.5A TO220-3 | |
| MCP1825S-1202E/AB | IC REG LINEAR 1.2V 500MA TO220-3 | |
| MCP1825S-1802E/AB | IC REG LINEAR 1.8V 500MA TO220-3 | |
| TC1264-3.0VAB | IC REG LINEAR 3V 800MA TO220-3 | |
| TC1262-2.5VAB | IC REG LINEAR 2.5V 500MA TO220-3 | |
| TC1262-2.8VAB | IC REG LINEAR 2.8V 500MA TO220-3 | |
| TC1262-5.0VAB | IC REG LINEAR 5V 500MA TO220-3 | |
| TC1264-1.8VAB | IC REG LINEAR 1.8V 800MA TO220-3 | |
| TC1264-2.5VAB | IC REG LINEAR 2.5V 800MA TO220-3 | |
| MCP1827S-0802E/AB | IC REG LINEAR 0.8V 1.5A TO220-3 |
Product Description
Product Details
General Description
The TC1262 is a fixed output, high accuracy (typically ±0.5%) CMOS low dropout regulator. Designed specifically for battery-operated systems, the TC1262’s CMOS construction eliminates wasted ground current, significantly extending battery life. Total supply current is typically 80µA at full load (20 to 60 times lower than in bipolar regulators).
Features
• Very Low Dropout Voltage• 500mA Output Current
• High Output Voltage Accuracy
• Standard or Custom Output Voltages
• Over Current and Over Temperature Protection
Applications
• Battery Operated Systems• Portable Computers
• Medical Instruments
• Instrumentation
• Cellular/GSM/PHS Phones
• Linear Post-Regulators for SMPS
• Pagers
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Tube |
| Unit-Weight | 0.211644 oz |
| Mounting-Style | Through Hole |
| Package-Case | TO-220-3 |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Through Hole |
| Output-Type | Fixed |
| Supplier-Device-Package | TO-220-3 |
| Voltage-Input | Up to 6V |
| Number-of-Outputs | 1 Output |
| Current-Output | 500mA |
| Voltage-Output | 3.3V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.35V @ 500mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 3.3 V |
| Input-Voltage-MAX | 6 V |
| Output-Current | 500 mA |
| Input-Voltage-MIN | + 2.7 V |
| Load-Regulation | 0.002 % / mA |
| Voltage-Regulation-Accuracy | 0.5 % |
| Package-Case | TO-220-3 |
| Ib-Input-Bias-Current | 80 uA |
| Dropout-Voltage | 0.02 V at 100 uA |
| Dropout-Voltage-Max | 650 mV |
| Line-Regulation | 0.003 % / V |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 500mA TO-220-3
LDO Regulator Pos 3.3V 0.5A Automotive 3-Pin(3+Tab) TO-220 Tube
LDO Voltage Regulators 500mA Fixed Out Adj
