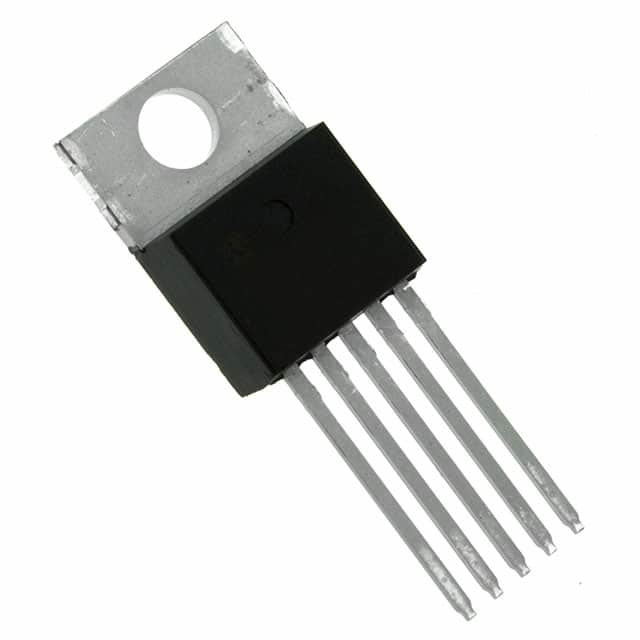

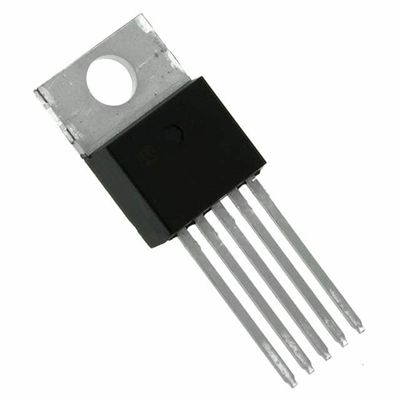

MCP1826-3302E/AT IC REG LINEAR 3.3V 1A TO220-5 Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | MCP1826-3302E/AT |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.4V @ 1A | Current - Output | 1A |
| Current - Quiescent (Iq) | 220 µA | Current - Supply (Max) | - |
| PSRR | 60dB (100Hz) | Control Features | Enable, Power Good |
| Protection Features | Over Temperature, Short Circuit, Under Voltage Lockout (UVLO) | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Through Hole | Package / Case | TO-220-5 |
| Supplier Device Package | TO-220-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MCP1826-3302E/AT | IC REG LINEAR 3.3V 1A TO220-5 | |
| MCP1826-ADJE/AT | IC REG LINEAR POS ADJ 1A TO220-5 | |
| MCP1825-ADJE/AT | IC REG LIN POS ADJ 500MA TO220-5 | |
| MCP1826-2502E/AT | IC REG LINEAR 2.5V 1A TO220-5 | |
| MCP1827-3302E/AT | IC REG LINEAR 3.3V 1.5A TO220-5 | |
| MCP1827-3002E/AT | IC REG LINEAR 3V 1.5A TO220-5 | |
| MCP1826-1802E/AT | IC REG LINEAR 1.8V 1A TO220-5 | |
| MCP1826-0802E/AT | IC REG LINEAR 0.8V 1A TO220-5 | |
| MCP1826-1202E/AT | IC REG LINEAR 1.2V 1A TO220-5 | |
| MCP1825-0802E/AT | IC REG LINEAR 0.8V 500MA TO220-5 | |
| MCP1825-1202E/AT | IC REG LINEAR 1.2V 500MA TO220-5 | |
| MCP1825-3002E/AT | IC REG LINEAR 3V 500MA TO220-5 | |
| MCP1825-1802E/AT | IC REG LINEAR 1.8V 500MA TO220-5 | |
| MCP1827-5002E/AT | IC REG LINEAR 5V 1.5A TO220-5 | |
| MCP1826-5002E/AT | IC REG LINEAR 5V 1A TO220-5 | |
| MCP1825-3302E/AT | IC REG LINEAR 3.3V 500MA TO220-5 | |
| MCP1827-ADJE/AT | IC REG LIN POS ADJ 1.5A TO220-5 | |
| MCP1827-1802E/AT | IC REG LINEAR 1.8V 1.5A TO220-5 | |
| TC1263-2.8VAT | IC REG LINEAR 2.8V 500MA TO220-5 | |
| TC1263-2.5VAT | IC REG LINEAR 2.5V 500MA TO220-5 | |
| TC1263-5.0VAT | IC REG LINEAR 5V 500MA TO220-5 | |
| TC1263-3.3VAT | IC REG LINEAR 3.3V 500MA TO220-5 | |
| TC1263-3.0VAT | IC REG LINEAR 3V 500MA TO220-5 | |
| MCP1825-2502E/AT | IC REG LINEAR 2.5V 500MA TO220-5 | |
| MCP1825-5002E/AT | IC REG LINEAR 5V 500MA TO220-5 | |
| TC1265-1.8VAT | IC REG LINEAR 1.8V 800MA TO220-5 | |
| TC1265-3.0VAT | IC REG LINEAR 3V 800MA TO220-5 | |
| TC1265-3.3VAT | IC REG LINEAR 3.3V 800MA TO220-5 | |
| MCP1826-3002E/AT | IC REG LINEAR 3V 1A TO220-5 | |
| TC1265-2.5VAT | IC REG LINEAR 2.5V 800MA TO220-5 | |
| MCP1827-0802E/AT | IC REG LINEAR 0.8V 1.5A TO220-5 | |
| MCP1827-2502E/AT | IC REG LINEAR 2.5V 1.5A TO220-5 | |
| MCP1827-1202E/AT | IC REG LINEAR 1.2V 1.5A TO220-5 |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Tube |
| Unit-Weight | 0.105822 oz |
| Mounting-Style | Through Hole |
| Package-Case | TO-220-5 |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Through Hole |
| Output-Type | Fixed |
| Supplier-Device-Package | TO-220-5 |
| Voltage-Input | Up to 6V |
| Number-of-Outputs | 1 Output |
| Current-Output | 1A |
| Voltage-Output | 3.3V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.25V @ 1A |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 3.3 V |
| Input-Voltage-MAX | 6 V |
| Output-Current | 1 A |
| Input-Voltage-MIN | + 2.3 V |
| Load-Regulation | 0.5 % |
| Voltage-Regulation-Accuracy | 2 % |
| Package-Case | TO-220-5 |
| Ib-Input-Bias-Current | 120 uA |
| Quiescent-Current | 220 uA |
| Dropout-Voltage | 0.25 V at 1 A |
| Dropout-Voltage-Max | 400 mV at 1 A |
| Line-Regulation | 0.05 % / V |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 1A TO-220-5
LDO Regulator Pos 3.3V 1A Automotive 5-Pin(5+Tab) TO-220 Tube
LDO Voltage Regulators 1A CMOS LDO Vout 3.3V ETR
