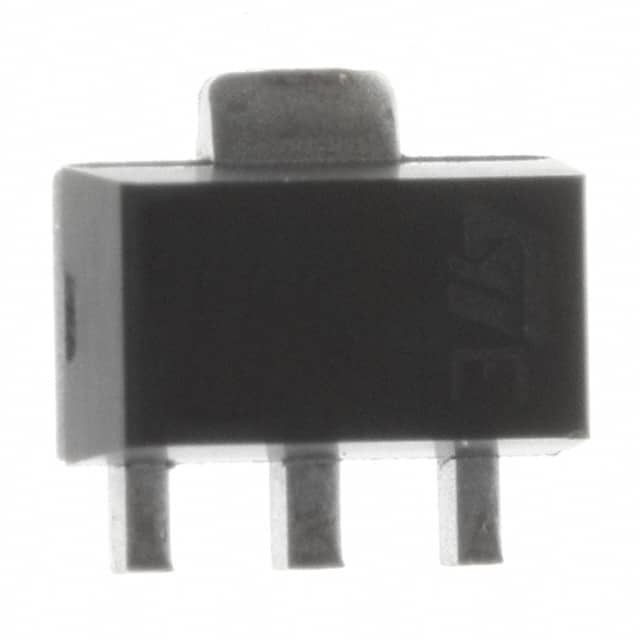

L78L05ACUTR IC REG LINEAR 5V 100MA SOT89-3 STMicroelectronics
| Brand Name | STMicroelectronics |
|---|---|
| Model Number | L78L05ACUTR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 30V |
| Voltage - Output (Min/Fixed) | 5V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - | Current - Output | 100mA |
| Current - Quiescent (Iq) | 5.5 MA | Current - Supply (Max) | 6 MA |
| PSRR | 49dB (120Hz) | Control Features | - |
| Protection Features | Over Current, Over Temperature, Short Circuit | Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | TO-243AA |
| Supplier Device Package | SOT-89-3 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| L78L05ACUTR | IC REG LINEAR 5V 100MA SOT89-3 | |
| L78L05ABUTR | IC REG LINEAR 5V 100MA SOT89-3 | |
| L78L33ACUTR | IC REG LINEAR 3.3V 100MA SOT89-3 | |
| L78L12ACUTR | IC REG LINEAR 12V 100MA SOT89-3 | |
| L78L33ABUTR | IC REG LINEAR 3.3V 100MA SOT89-3 | |
| L78L08ABUTR | IC REG LINEAR 8V 100MA SOT89-3 | |
| L79L05ABUTR | IC REG LINEAR -5V 100MA SOT89-3 | |
| L79L15ACUTR | IC REG LINEAR -15V 100MA SOT89-3 | |
| L79L05ACUTR | IC REG LINEAR -5V 100MA SOT89-3 | |
| L79L12ACUTR | IC REG LINEAR -12V 100MA SOT89-3 | |
| L78L06ABUTR | IC REG LINEAR 6V 100MA SOT89-3 | |
| L78L18ACUTR | IC REG LINEAR 18V 100MA SOT89-3 | |
| L78L10ACUTR | IC REG LINEAR 10V 100MA SOT89-3 | |
| L78L08ACUTR | IC REG LINEAR 8V 100MA SOT89-3 | |
| L78L09ACUTR | IC REG LINEAR 9V 100MA SOT89-3 | |
| L78L06ACUTR | IC REG LINEAR 6V 100MA SOT89-3 | |
| L78L15ACUTR | IC REG LINEAR 15V 100MA SOT89-3 | |
| L78L09ABUTR | IC REG LINEAR 9V 100MA SOT89-3 | |
| L78L15ABUTR | IC REG LINEAR 15V 100MA SOT89-3 | |
| L78L12ABUTR | IC REG LINEAR 12V 100MA SOT89-3 | |
| LD2981CU50TR | IC REG LINEAR 5V 100MA SOT89-3 | |
| LD2981ABU33TR | IC REG LINEAR 3.3V 100MA SOT89-3 | |
| LD2981ABU50TR | IC REG LINEAR 5V 100MA SOT89-3 | |
| LD2981CU33TR | IC REG LINEAR 3.3V 100MA SOT89-3 | |
| L78L24ACUTR | IC REG LINEAR 24V 100MA SOT89-3 | |
| LD2981ABU18TR | IC REG LDO 1.8V 0.1A SOT-89 | |
| LD2980CU18TR | IC REG LINEAR 1.8V 50MA SOT89-3 | |
| LD2980CU50TR | IC REG LINEAR 5V 50MA SOT89-3 | |
| L78L24ABUTR | IC REG LINEAR 24V 100MA SOT89-3 | |
| L79L06ABUTR | IC REG LINEAR -6V 100MA SOT89-3 | |
| LD2981CU18TR | IC REG LINEAR 1.8V 100MA SOT89-3 | |
| L79L06ACUTR | IC REG LINEAR -6V 100MA SOT89-3 | |
| L79L09ACUTR | IC REG LINEAR -9V 100MA SOT89-3 | |
| LD2980ABU33TR | IC REG LINEAR 3.3V 50MA SOT89-3 |
Product Description
Product Details
L78L05ACUTR Description
This three-terminal positive regulator employs internal current limiting and thermal shutdown, making it essentially indestructible. If adequate heat-sink is provided, it can deliver up to 100 mA output current. It is intended as fixed voltage regulator in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, it can be used with power pass elements to make high-current voltage regulators.
L78L05ACUTR Features
Solder Tabs
Vacuum Caps
Embossed Tape Packaging
Output current up to 100 mA
Thermal overload protection
Short-circuit protection
L78L05ACUTR Applications
Power Management
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Linear Voltage Regulators |
| Series | L78L05AC |
| Packaging | Alternate Packaging |
| Unit-Weight | 0.004603 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | TO-243AA |
| Operating-Temperature | 0°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | SOT-89-3 |
| Voltage-Input | Up to 30V |
| Number-of-Outputs | 1 Output |
| Current-Output | 100mA |
| Voltage-Output | 5V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 1.7V @ 40mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 150 C |
| Operating temperature range | 0 C |
| Polarity | Positive |
| Output-Voltage | 5 V |
| Input-Voltage-MAX | 30 V |
| Output-Current | 100 mA |
| Input-Voltage-MIN | 7 V |
| Load-Regulation | 60 mV |
| Package-Case | SOT-89 |
| Line-Regulation | 150 mV |
| Power Supply Ripple Rejection (PSRR) | 49 dB |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| MC78L05ACHX Power Circuits |
3-Terminal 0.1A Positive Voltage Regulator, 4000-REEL | ON Semiconductor | L78L05ACUTR vs MC78L05ACHX |
| L78L05ACD13TR Power Circuits |
0.1A positive voltage regulators | STMicroelectronics | L78L05ACUTR vs L78L05ACD13TR |
| LM78L05ACM/NOPB Power Circuits |
100-mA Fixed Output Linear Regulator 8-SOIC 0 to 125 | Texas Instruments | L78L05ACUTR vs LM78L05ACM/NOPB |
| LM78L05ACZ Power Circuits |
3-Terminal 0.1A Positive Voltage Regulator, 10000-BLKBG | ON Semiconductor | L78L05ACUTR vs LM78L05ACZ |
| L78L05ACZ Power Circuits |
0.1A positive voltage regulators | STMicroelectronics | L78L05ACUTR vs L78L05ACZ |
| L78L05ABUTR Power Circuits |
0.1A positive voltage regulators | STMicroelectronics | L78L05ACUTR vs L78L05ABUTR |
| L78L05ABD13TR Power Circuits |
0.1A positive voltage regulators | STMicroelectronics | L78L05ACUTR vs L78L05ABD13TR |
| MC78L05ACDR2G Power Circuits |
Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 5.0 V; TJ = 0°C to +125°C, SOIC-8 Narrow Body, 2500-REEL | ON Semiconductor | L78L05ACUTR vs MC78L05ACDR2G |
| LM78L05ACMX/NOPB Power Circuits |
100-mA Fixed Output Linear Regulator 8-SOIC 0 to 125 | Texas Instruments | L78L05ACUTR vs LM78L05ACMX/NOPB |
| MC78L05ABDR2G Power Circuits |
Linear Voltage Regulator, 100 mA, 5 to 24 V, Positive Vout: 5.0 V; TJ = -40°C to +125°C, SOIC-8 Narrow Body, 2500-REEL | ON Semiconductor | L78L05ACUTR vs MC78L05ABDR2G |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 100mA SOT-89-3
Standard Regulator Pos 5V 0.1A 4-Pin(3+Tab) SOT-89 T/R
Linear Voltage Regulators 5.0V 0.1A Positive
