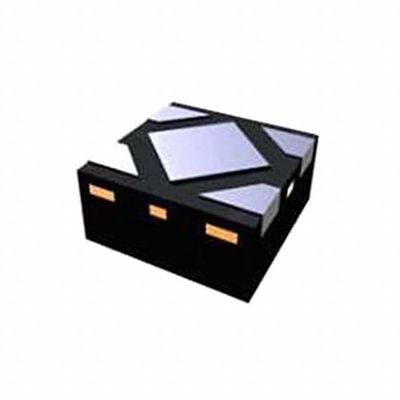

LD6805K/12H,115 IC REG LIN 1.2V 150MA DFN1010C-4 N✖P USA Inc.
| Brand Name | N✖P USA Inc. |
|---|---|
| Model Number | LD6805K/12H,115 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 150mA | Current - Output | 150mA |
| Current - Quiescent (Iq) | 35 µA | Current - Supply (Max) | 150 µA |
| PSRR | 75dB (1kHz) | Control Features | Enable |
| Protection Features | Over Current, Transient Voltage | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 4-UDFN Exposed Pad |
| Supplier Device Package | DFN1010C-4 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| LD6805K/12H,115 | IC REG LIN 1.2V 150MA DFN1010C-4 | |
| LD6805K/12P,115 | IC REG LIN 1.2V 150MA DFN1010C-4 | |
| LD6805K/18H,115 | IC REG LIN 1.8V 150MA DFN1010C-4 | |
| LD6805K/18P,115 | IC REG LIN 1.8V 150MA DFN1010C-4 | |
| LD6805K/28H,115 | IC REG LIN 2.8V 150MA DFN1010C-4 | |
| LD6805K/28P,115 | IC REG LIN 2.8V 150MA DFN1010C-4 | |
| LD6805K/30H,115 | IC REG LIN 3V 150MA DFN1010C-4 | |
| LD6805K/30P,115 | IC REG LIN 3V 150MA DFN1010C-4 | |
| LD6805K/33H,115 | IC REG LIN 3.3V 150MA DFN1010C-4 | |
| LD6805K/33P,115 | IC REG LIN 3.3V 150MA DFN1010C-4 | |
| LD6805K/13H,115 | IC REG LIN 1.3V 150MA DFN1010C-4 | |
| LD6805K/13P,115 | IC REG LIN 1.3V 150MA DFN1010C-4 | |
| LD6805K/14H,115 | IC REG LIN 1.4V 150MA DFN1010C-4 | |
| LD6805K/14P,115 | IC REG LIN 1.4V 150MA DFN1010C-4 | |
| LD6805K/15P,115 | IC REG LIN 1.5V 150MA DFN1010C-4 | |
| LD6805K/16H,115 | IC REG LIN 1.6V 150MA DFN1010C-4 | |
| LD6805K/16P,115 | IC REG LIN 1.6V 150MA DFN1010C-4 | |
| LD6805K/20H,115 | IC REG LIN 2V 150MA DFN1010C-4 | |
| LD6805K/20P,115 | IC REG LIN 2V 150MA DFN1010C-4 | |
| LD6805K/21P,115 | IC REG LIN 2.1V 150MA DFN1010C-4 | |
| LD6805K/22H,115 | IC REG LIN 2.2V 150MA DFN1010C-4 | |
| LD6805K/22P,115 | IC REG LIN 2.2V 150MA DFN1010C-4 | |
| LD6805K/23H,115 | IC REG LIN 2.3V 150MA DFN1010C-4 | |
| LD6805K/23P,115 | IC REG LIN 2.3V 150MA DFN1010C-4 | |
| LD6805K/25H,115 | IC REG LIN 2.5V 150MA DFN1010C-4 | |
| LD6805K/25P,115 | IC REG LIN 2.5V 150MA DFN1010C-4 | |
| LD6805K/29H,115 | IC REG LIN 2.9V 150MA DFN1010C-4 | |
| LD6805K/29P,115 | IC REG LIN 2.9V 150MA DFN1010C-4 | |
| LD6805K/36H,115 | IC REG LIN 3.6V 150MA DFN1010C-4 | |
| LD6805K/36P,115 | IC REG LIN 3.6V 150MA DFN1010C-4 | |
| LD6805K/15HX | IC REG LIN 1.5V 150MA DFN1010C-4 | |
| LD6805K/21HX | IC REG LIN 2.1V 150MA DFN1010C-4 | |
| LD6805K/31PX | IC REG LIN 3.1V 150MA DFN1010C-4 | |
| LD6805K/185H,115 | IC REG LINEAR 1.85V 150MA 4UDFN | |
| LD6805K/31H,115 | IC REG LINEAR 3.1V 150MA 4UDFN |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | N✖P Semiconductors |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | |
| Package-Case | 4-UDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | 4-HUSON (1x1) |
| Voltage-Input | 2.3 V ~ 5.5 V |
| Current-Output | 150mA |
| Voltage-Output | 1.2V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.25V @ 150mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 200mA |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 1.2V 150mA DFN1010C-4
LDO Regulator Pos 1.2V 0.15A 4-Pin DFN-C EP T/R
