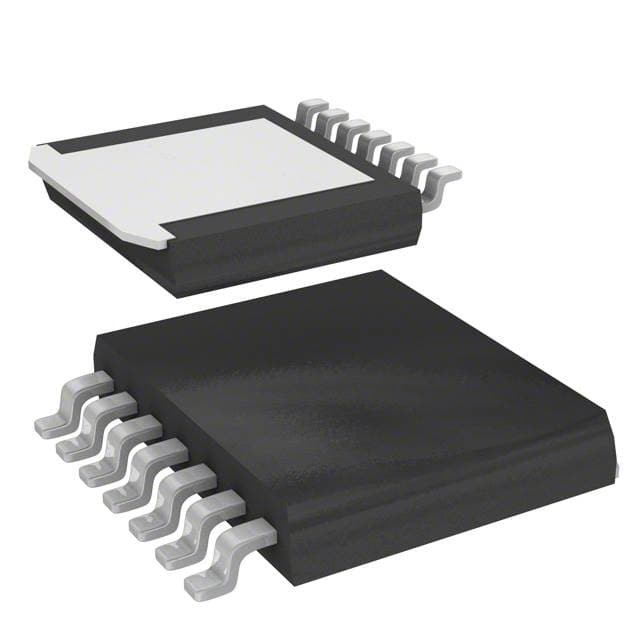

MIC69502WR-TR IC REG LINEAR POS ADJ 5A SPAK-7 Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | MIC69502WR-TR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Adjustable |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.5V | Voltage - Output (Max) | 5.5V |
| Voltage Dropout (Max) | 0.5V @ 5A | Current - Output | 5A |
| Current - Quiescent (Iq) | 5 MA | Current - Supply (Max) | 150 MA |
| PSRR | - | Control Features | Enable |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | SPak-7 (7 Leads + Tab) |
| Supplier Device Package | S-PAK-7 |
