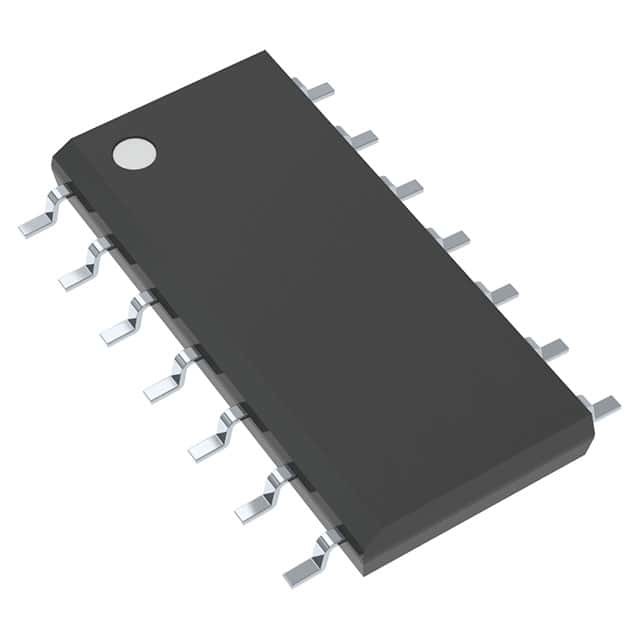

NCV4299CD250R2G IC REG LINEAR 5V 150MA 14SOIC onsemi
| Brand Name | onsemi |
|---|---|
| Model Number | NCV4299CD250R2G |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 45V |
| Voltage - Output (Min/Fixed) | 5V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 100mA | Current - Output | 150mA |
| Current - Quiescent (Iq) | 90 µA | Current - Supply (Max) | 2 MA |
| PSRR | 66dB (100Hz) | Control Features | Reset |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 150°C |
| Mounting Type | Surface Mount | Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 14-SOIC |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| NCV4299CD250R2G | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV8768CD50ABR2G | IC REG LINEAR LDO 5.0V DPAK-5 | |
| NCV4263-2CD250R2G | IC REG LINEAR 5V 200MA 14SOIC | |
| NCV4269CD250R2G | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV8768CD33ABR2G | IC REG LINEAR LDO 3.3V DPAK-5 | |
| NCV8768CPD50ABR2G | IC REG LINEAR LDO 5.0V SOIC | |
| NCV4269AD250R2G | IC REG LINEAR 5V 150MA 14SOIC | |
| CS8120YDR14 | IC REG LINEAR 5V 300MA 14SOIC | |
| NCV4279BD2R2 | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV4269D2 | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV4269D2G | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV4269D2R2 | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV4279D2 | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV4279D2G | IC REG LIN POS ADJ 150MA 14SOIC | |
| NCV4279D2R2 | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV4299D2 | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV4299D2G | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV4299D2R2 | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV4299D233G | IC REG LINEAR 3.3V 150MA 14SOIC | |
| CS8151D2G | IC REG LINEAR 5V 100MA 14SOIC | |
| CS8151D2R2G | IC REG LINEAR 5V 100MA 14SOIC | |
| NCV4269D2R2G | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV4279D2R2G | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV4299D2R2G | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV4269AD250G | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV4279A50D2G | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV4279A50D2R2G | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV8668ABD250R2G | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV866952D250R2G | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV866710D250R2G | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV866752D250R2G | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV8768ABD250R2G | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV876950D250R2G | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV4299AD233R2G | IC REG LINEAR 3.3V 150MA 14SOIC | |
| NCV4279CD250R2G | IC REG LINEAR 5V 150MA 14SOIC | |
| NCV4299CD233R2G | IC REG LINEAR 3.3V 150MA 14SOIC | |
| NCV4299D233R2G | IC REG LINEAR 3.3V 150MA 14SOIC |
Product Description
Product Details
The NCV4299 is a family of precision micropower voltage regulators with an output current capability of 150 mA. It is available in 5.0 V or 3.3 V output voltage, and is housed in an 8−lead SON and in a 14−lead SON (fused) package.
The output voltage is accurate within ±2% with a maximum dropout voltage of 0.5 V at 100 mA. Low Quiescent current is a feature drawing only 90 μA with a 1 mA load. This part is ideal for any and all battery operated microprocessor equipment.
Features
• 5.0 V, 3.3 V ±2%, 150 mA• Extremely Low Current Consumption
♦ 90 μA (Typ) in the ON Mode
♦ < 1.0 μA in the Off Mode
• Early Warning
• Reset Output Low Down to VQ = 1.0 V
• Adjustable Reset Threshold
• Wide Temperature Range
• Fault Protection
♦ 60 V Peak Transient Voltage
♦ −40 V Reverse Voltage
♦ Short Circuit
♦ Thermal Overload
• Internally Fused Leads in the SO−14 Package
• Inhibit Function with A Current Consumption in the Off Mode
• NCV Prefix for Automotive and Other Applications Requiring Site and Change Control
• Pb−Free Packages are Available
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | Linear Voltage Regulators |
| Series | Automotive, AEC-Q100 |
| Packaging | Tape & Reel (TR) |
| Package-Case | 14-SOIC (0.154", 3.90mm Width) |
| Operating-Temperature | -40°C ~ 150°C |
| Mounting-Type | Surface Mount |
| Supplier-Device-Package | 14-SOIC |
| Voltage-Input | 5.5 V ~ 45 V |
| Current-Output | 150mA |
| Voltage-Output | 5V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.26V @ 100mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 250mA |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 5V 150mA 14-SOIC
LDO Regulator Pos 5V 0.15A Automotive 14-Pin SOIC N T/R
LDO Voltage Regulators 5.0V 150MA LDO
