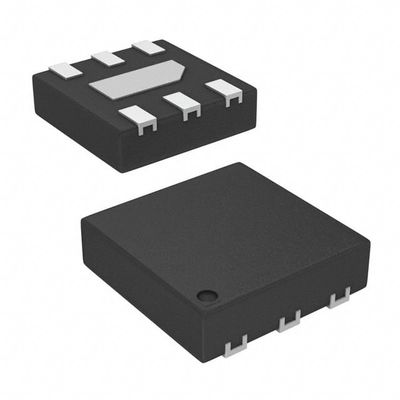

ISL9016IRUNCZ-T IC REG LINEAR 3.3V/1.8V 6UTDFN Renesas Electronics America Inc
| Brand Name | Renesas Electronics America Inc |
|---|---|
| Model Number | ISL9016IRUNCZ-T |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 2 | Voltage - Input (Max) | 6.5V |
| Voltage - Output (Min/Fixed) | 3.3V, 1.8V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.2V @ 150mA, - | Current - Output | 150mA, 150mA |
| Current - Quiescent (Iq) | 67 µA | Current - Supply (Max) | 100 µA |
| PSRR | - | Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-UTDFN (1.6x1.6) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| ISL9016IRUNCZ-T | IC REG LINEAR 3.3V/1.8V 6UTDFN | |
| ISL9016IRUNWZ-T | IC REG LINEAR 3.3V/1.2V 6UTDFN | |
| ISL9016IRUWCZ-T | IC REG LINEAR 1.2V/1.8V 6UTDFN | |
| ISL9003AIRUJZ-T | IC REG LINEAR 2.8V 150MA 6UTDFN | |
| ISL9016IRUJCZ-T | IC REG LINEAR 2.8V/1.8V 6UTDFN | |
| ISL9008AIRUMZ-T | IC REG LINEAR 3V 150MA 6UTDFN | |
| ISL9016IRUCBZ-T | IC REG LINEAR 1.8V/1.5V 6UTDFN | |
| ISL9016IRUBBZ-T | IC REG LINEAR 1.5V/1.5V 6UTDFN | |
| ISL9016IRUFBZ-T | IC REG LINEAR 2.5V/1.5V 6UTDFN | |
| ISL9016IRUFWZ-T | IC REG LINEAR 2.5V/1.2V 6UTDFN | |
| ISL9016IRUGCZ-T | IC REG LINEAR 2.7V/1.8V 6UTDFN | |
| ISL9016IRUGGZ-T | IC REG LINEAR 2.7V/2.7V 6UTDFN | |
| ISL9016IRUGWZ-T | IC REG LINEAR 2.7V/1.2V 6UTDFN | |
| ISL9016IRUJBZ-T | IC REG LINEAR 2.8V/1.5V 6UTDFN | |
| ISL9016IRUJWZ-T | IC REG LINEAR 2.8V/1.2V 6UTDFN | |
| ISL9016IRUKFZ-T | IC REG LINEAR 2.85V/2.5V 6UTDFN | |
| ISL9016IRUKWZ-T | IC REG LINEAR 2.85V/1.2V 6UTDFN | |
| ISL9016IRUMCZ-T | IC REG LINEAR 3V/1.8V 6UTDFN | |
| ISL9016IRUMKZ-T | IC REG LINEAR 3V/2.85V 6UTDFN | |
| ISL9016IRUMWZ-T | IC REG LINEAR 3V/1.2V 6UTDFN | |
| ISL9016IRUWGZ-T | IC REG LINEAR 1.2V/2.7V 6UTDFN | |
| ISL9016IRUBWZ-T | IC REG LINEAR 1.5V/1.2V 6UTDFN | |
| ISL9016IRUCWZ-T | IC REG LINEAR 1.8V/1.2V 6UTDFN | |
| ISL9016IRUFCZ-T | IC REG LINEAR 2.5V/1.8V 6UTDFN | |
| ISL9016IRUJJZ-T | IC REG LINEAR 2.8V/2.8V 6UTDFN | |
| ISL9016IRUKKZ-T | IC REG LINEAR 2.85V/2.85V 6UTDFN | |
| ISL9016IRUMBZ-T | IC REG LINEAR 3V/1.5V 6UTDFN | |
| ISL9016IRUWJZ-T | IC REG LINEAR 1.2V/2.8V 6UTDFN | |
| ISL9016IRUCCZ-T | IC REG LINEAR 1.8V/1.8V 6UTDFN | |
| ISL9016IRUFFZ-T | IC REG LINEAR 2.5V/2.5V 6UTDFN | |
| ISL9016IRUWKZ-T | IC REG LINEAR 1.2V/2.85V 6UTDFN | |
| ISL9008AIRUBZ-T | IC REG LINEAR 1.5V 150MA 6UTDFN | |
| ISL9008AIRUCZ-T | IC REG LINEAR 1.8V 150MA 6UTDFN | |
| ISL9008AIRUFZ-T | IC REG LINEAR 2.5V 150MA 6UTDFN | |
| ISL9008AIRUHZ-T | IC REG LINEAR 2.75V 150MA 6UTDFN | |
| ISL9008AIRUJZ-T | IC REG LINEAR 2.8V 150MA 6UTDFN | |
| ISL9008AIRUKZ-T | IC REG LINEAR 2.85V 150MA 6UTDFN | |
| ISL9008AIRUNZ-T | IC REG LINEAR 3.3V 150MA 6UTDFN | |
| ISL9003AIRUBZ-T | IC REG LINEAR 1.5V 150MA 6UTDFN | |
| ISL9003AIRUCZ-T | IC REG LINEAR 1.8V 150MA 6UTDFN | |
| ISL9003AIRUHZ-T | IC REG LINEAR 2.75V 150MA 6UTDFN | |
| ISL9003AIRUKZ-T | IC REG LINEAR 2.85V 150MA 6UTDFN | |
| ISL9003AIRUMZ-T | IC REG LINEAR 3V 150MA 6UTDFN | |
| ISL9003AIRUNZ-T | IC REG LINEAR 3.3V 150MA 6UTDFN | |
| ISL9003AIRURZ-T | IC REG LINEAR 2.6V 150MA 6UTDFN | |
| ISL9003AIRUFZ-T | IC REG LINEAR 2.5V 150MA 6UTDFN |
Product Description
Product Details
150mA Dual LDO with Low Noise, High PSRR, and Low IQ
ISL9016 is a high performance dual LDO capable of providing up to 150mA current on each channel. It features a low standby current and very high PSRR and is stable with output capacitance of 1µF to 4.7µF with an ESR of up to 200mΩ.
Features
• Dual Integrated 150mA High Performance LDOs• High PSRR: 80dB @ 1kHz and 45dB @ 1MHz
• Reverse Current Protection
• Low Quiescent Current
- 49µA (Single LDO Enabled)/80µA (Dual LDOs Enabled)
• Excellent Load Transient Response
• Typically ±0.8% Output Voltage Accuracy
• Low Output Noise: Typically 25µVRMS
• Wide Input Voltage Capability: 1.8V to 6.5V
• Low Dropout Voltage: Typically 120mV @ 150mA
• Separate Enable Control for each LDO
• Stable with 1µF to 4.7µF Ceramic Output Capacitors
• Soft-start to Limit Input Current Surge During Enable
• Current Limit and Overheat Protection
• Tiny 6 Ld 1.6mmx1.6mm µTDFN package
• Pb-free (RoHS Compliant)
Applications
• PDAs, Cell Phones and Smart Phones• Portable Instruments, MP3/4 Players, PMP, DSC
• Handheld Devices including Medical Handhelds
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Renesas |
| Product Category | Linear Voltage Regulators |
| Series | ISL9016 |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 6-UFDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | 6-UTDFN (1.6x1.6) |
| Voltage-Input | 1.8 V ~ 6.5 V |
| Number-of-Outputs | 2 Output |
| Current-Output | 150mA |
| Voltage-Output | 3.3V, 1.8V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.12V @ 150mA, - |
| Number-of-Regulators | 2 Regulators |
| Current-Limit-Min | 175mA |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 3.3 V 1.8 V |
| Input-Voltage-MAX | 6.5 V |
| Output-Current | 1 A |
| Input-Voltage-MIN | 1.8 V |
| Voltage-Regulation-Accuracy | +/- 0.8 % |
| Package-Case | UTDFN-EP-6 |
| Dropout-Voltage | 0.25 V at 150 mA |
| Dropout-Voltage-Max | 0.425 V at 150 mA |
Descriptions
Linear Voltage Regulator IC Positive Fixed 2 Output 3.3V, 1.8V 150mA, 150mA 6-UTDFN (1.6x1.6)
LDO Regulator Pos 1.8V3.3V 0.15A 6-Pin UTDFN EP T/R
LDO Voltage Regulators DLLDO W/LW NOISE HI PSRR LW IQ 1 6 X 1 6
