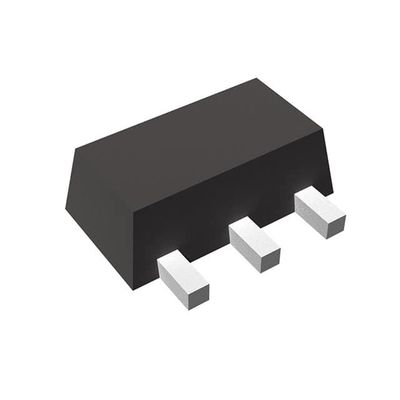

RH5RL33AA-T1-FE IC REG LINEAR 3.3V 50MA SOT89-3 Nisshinbo Micro Devices Inc.
| Brand Name | Nisshinbo Micro Devices Inc. |
|---|---|
| Model Number | RH5RL33AA-T1-FE |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.53V @ 1mA | Current - Output | 50mA |
| Current - Quiescent (Iq) | 3.3 µA | Current - Supply (Max) | - |
| PSRR | - | Control Features | - |
| Protection Features | Over Current, Short Circuit | Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Package / Case | TO-243AA |
| Supplier Device Package | SOT-89-3 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| RH5RL33AA-T1-FE | IC REG LINEAR 3.3V 50MA SOT89-3 | |
| RH5RL30AA-T1-FE | IC REG LINEAR 3V 50MA SOT89-3 | |
| RH5RL50AA-T1-FE | IC REG LINEAR 5V 80MA SOT89-3 | |
| RH5RE30AA-T1-FE | IC REG LINEAR 3V 80MA SOT89-3 | |
| RH5RZ33CA-T1-FE | IC REG LINEAR 3.3V 100MA SOT89-3 | |
| RH5RZ25CA-T1-FE | IC REG LINEAR 2.5V 100MA SOT89-3 | |
| RH5RZ27CA-T1-FE | IC REG LINEAR 2.7V 100MA SOT89-3 | |
| RH5RL60AA-T1-FE | IC REG LINEAR 6V 80MA SOT89-3 | |
| RH5RL39AA-T1-FE | IC REG LINEAR 3.9V 50MA SOT89-3 | |
| RH5RL27AA-T1-FE | IC REG LINEAR 2.7V 35MA SOT89-3 | |
| RH5RE50AA-T1-FE | IC REG LINEAR 5V 80MA SOT89-3 | |
| RH5RZ28CA-T1-FE | IC REG LINEAR 2.8V 100MA SOT89-3 | |
| RH5RZ30CA-T1-FE | IC REG LINEAR 3V 100MA SOT89-3 | |
| RH5RZ36CA-T1-FE | IC REG LINEAR 3.6V 100MA SOT89-3 | |
| RH5RZ38CA-T1-FE | IC REG LINEAR 3.8V 100MA SOT89-3 | |
| RH5RZ45CA-T1-FE | IC REG LINEAR 4.5V 100MA SOT89-3 | |
| RH5RZ50CA-T1-FE | IC REG LINEAR 5V 100MA SOT89-3 | |
| RH5RL20AA-T1-FE | IC REG LINEAR 2V 35MA SOT89-3 | |
| RH5RL21AA-T1-FE | IC REG LINEAR 2.1V 35MA SOT89-3 | |
| RH5RL22AA-T1-FE | IC REG LINEAR 2.2V 35MA SOT89-3 | |
| RH5RL25AA-T1-FE | IC REG LINEAR 2.5V 35MA SOT89-3 | |
| RH5RL28AA-T1-FE | IC REG LINEAR 2.8V 35MA SOT89-3 | |
| RH5RL29AA-T1-FE | IC REG LINEAR 2.9V 35MA SOT89-3 | |
| RH5RL31AA-T1-FE | IC REG LINEAR 3.1V 50MA SOT89-3 | |
| RH5RL32AA-T1-FE | IC REG LINEAR 3.2V 50MA SOT89-3 | |
| RH5RL35AA-T1-FE | IC REG LINEAR 3.5V 50MA SOT89-3 | |
| RH5RL36AA-T1-FE | IC REG LINEAR 3.6V 50MA SOT89-3 | |
| RH5RL37AA-T1-FE | IC REG LINEAR 3.7V 50MA SOT89-3 | |
| RH5RL38AA-T1-FE | IC REG LINEAR 3.8V 50MA SOT89-3 | |
| RH5RL40AA-T1-FE | IC REG LINEAR 4V 65MA SOT89-3 | |
| RH5RL42AA-T1-FE | IC REG LINEAR 4.2V 65MA SOT89-3 | |
| RH5RL44AA-T1-FE | IC REG LINEAR 4.4V 65MA SOT89-3 | |
| RH5RL45AA-T1-FE | IC REG LINEAR 4.5V 65MA SOT89-3 | |
| RH5RL47AA-T1-FE | IC REG LINEAR 4.7V 65MA SOT89-3 | |
| RH5RL53AA-T1-FE | IC REG LINEAR 5.3V 80MA SOT89-3 | |
| RH5RL55AA-T1-FE | IC REG LINEAR 5.5V 80MA SOT89-3 | |
| RH5RL56AA-T1-FE | IC REG LINEAR 5.6V 80MA SOT89-3 | |
| RH5RE20AA-T1-FE | IC REG LINEAR 2V 80MA SOT89-3 | |
| RH5RE22AA-T1-FE | IC REG LINEAR 2.2V 80MA SOT89-3 | |
| RH5RE23AA-T1-FE | IC REG LINEAR 2.3V 80MA SOT89-3 | |
| RH5RE24AA-T1-FE | IC REG LINEAR 2.4V 80MA SOT89-3 | |
| RH5RE25AA-T1-FE | IC REG LINEAR 2.5V 80MA SOT89-3 | |
| RH5RE33AA-T1-FE | IC REG LINEAR 3.3V 80MA SOT89-3 | |
| RH5RE39AA-T1-FE | IC REG LINEAR 3.9V 80MA SOT89-3 | |
| RH5RE40AA-T1-FE | IC REG LINEAR 4V 80MA SOT89-3 | |
| RH5RE45AA-T1-FE | IC REG LINEAR 4.5V 80MA SOT89-3 | |
| RH5RE47AA-T1-FE | IC REG LINEAR 4.7V 80MA SOT89-3 | |
| RH5RE58AA-T1-FE | IC REG LINEAR 5.8V 80MA SOT89-3 |
Product Description
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Product Category | Linear Voltage Regulators |
| Mfr | Nisshinbo Micro Devices Inc． |
| Series | Rx5RL |
| Package | Tape & Reel (TR)Cut Tape (CT)Digi-Reel® |
| Product-Status | Active |
| Output-Configuration | Positive |
| Output-Type | Fixed |
| Number-of-Regulators | 1 |
| Voltage-Input-Max | 10V |
| Voltage-Output-Min-Fixed | 3．3V |
| Voltage-Output-Max | - |
| Voltage-Dropout-Max | 0．53V @ 1mA |
| Current-Output | 50mA |
| Current-Quiescent-Iq | 3．3 µA |
| PSRR | - |
| Control-Features | - |
| Protection-Features | Over Current Short Circuit |
| Operating-Temperature | -40°C ~ 85°C |
| Mounting-Type | Surface Mount |
| Package-Case | TO-243AA |
| Supplier-Device-Package | SOT-89-3 |
| Base-Product-Number | RH5RL33 |
