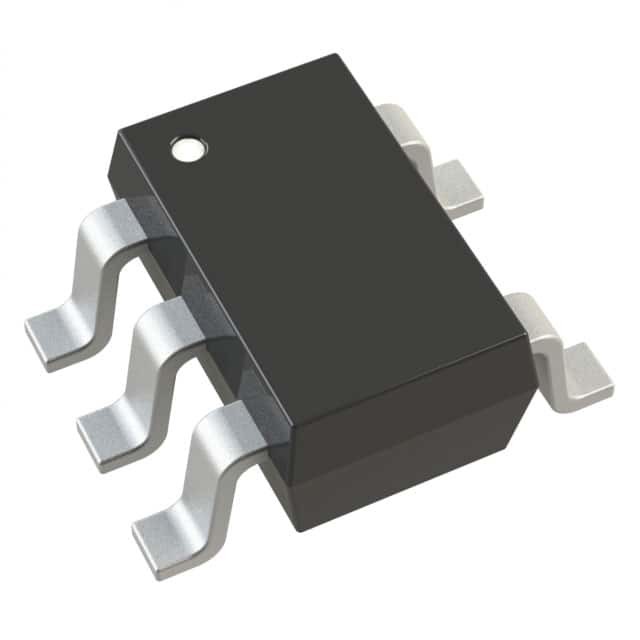

TC1017-3.3VLTTR IC REG LINEAR 3.3V 150MA SC70-5 Microchip Technology
| Brand Name | Microchip Technology |
|---|---|
| Model Number | TC1017-3.3VLTTR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 150mA | Current - Output | 150mA |
| Current - Quiescent (Iq) | 90 µA | Current - Supply (Max) | - |
| PSRR | 58dB (1kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| TC1017-3.3VLTTR | IC REG LINEAR 3.3V 150MA SC70-5 | |
| MCP1811AT-012/LT | IC REG LINEAR 1.2V 150MA SC70-5 | |
| TC1016-3.3VLTTR | IC REG LINEAR 3.3V 80MA SC70-5 | |
| TC1016-3.0VLTTR | IC REG LINEAR 3V 80MA SC70-5 | |
| TC1016-4.0VLTTR | IC REG LINEAR 4V 80MA SC70-5 | |
| TC1017-1.8VLTTR | IC REG LINEAR 1.8V 150MA SC70-5 | |
| TC1016-2.7VLTTR | IC REG LINEAR 2.7V 80MA SC70-5 | |
| TC1017R-2.5VLTTR | IC REG LINEAR 2.5V 150MA SC70-5 | |
| TC1017-3.0VLTTR | IC REG LINEAR 3V 150MA SC70-5 | |
| TC1016-2.8VLTTR | IC REG LINEAR 2.8V 80MA SC70-5 | |
| TC1016-1.8VLTTR | IC REG LINEAR 1.8V 80MA SC70-5 | |
| TC1017-2.9VLTTR | IC REG LINEAR 2.9V 150MA SC70-5 | |
| TC1017-2.7VLTTR | IC REG LINEAR 2.7V 150MA SC70-5 | |
| TC1017-2.6VLTTR | IC REG LINEAR 2.6V 150MA SC70-5 | |
| TC1017-2.85VLTTR | IC REG LINEAR 2.85V 150MA SC70-5 | |
| TC1017-4.0VLTTR | IC REG LINEAR 4V 150MA SC70-5 | |
| TC1017-2.8VLTTR | IC REG LINEAR 2.8V 150MA SC70-5 | |
| TC1017R-1.8VLTTR | IC REG LINEAR 1.8V 150MA SC70-5 | |
| TC1016-3.0VLTTR-VAO | IC REG LINEAR 3V 80MA SC70-5 | |
| MCP1811AT-010/LT | IC REG LINEAR 1V 150MA SC70-5 | |
| MCP1811AT-018/LT | IC REG LINEAR 1.8V 150MA SC70-5 | |
| MCP1811AT-020/LT | IC REG LINEAR 2V 150MA SC70-5 | |
| MCP1811AT-025/LT | IC REG LINEAR 2.5V 150MA SC70-5 | |
| MCP1811AT-028/LT | IC REG LINEAR 2.8V 150MA SC70-5 | |
| MCP1811AT-030/LT | IC REG LINEAR 3V 150MA SC70-5 | |
| MCP1811AT-033/LT | IC REG LINEAR 3.3V 150MA SC70-5 | |
| MCP1811AT-040/LT | IC REG LINEAR 4V 150MA SC70-5 | |
| MCP1811BT-010/LT | IC REG LINEAR 1V 150MA SC70-5 | |
| MCP1811BT-012/LT | IC REG LINEAR 1.2V 150MA SC70-5 | |
| MCP1811BT-018/LT | IC REG LINEAR 1.8V 150MA SC70-5 | |
| MCP1811BT-020/LT | IC REG LINEAR 2V 150MA SC70-5 | |
| MCP1811BT-025/LT | IC REG LINEAR 2.5V 150MA SC70-5 | |
| MCP1811BT-028/LT | IC REG LINEAR 2.8V 150MA SC70-5 | |
| MCP1811BT-030/LT | IC REG LINEAR 3V 150MA SC70-5 | |
| MCP1811BT-033/LT | IC REG LINEAR 3.3V 150MA SC70-5 | |
| MCP1811BT-040/LT | IC REG LINEAR 4V 150MA SC70-5 | |
| MCP1812AT-010/LT | IC REG LINEAR 1V 300MA SC70-5 | |
| MCP1812AT-012/LT | IC REG LINEAR 1.2V 300MA SC70-5 | |
| MCP1812AT-018/LT | IC REG LINEAR 1.8V 300MA SC70-5 | |
| MCP1812AT-020/LT | IC REG LINEAR 2V 300MA SC70-5 | |
| MCP1812AT-025/LT | IC REG LINEAR 2.5V 300MA SC70-5 | |
| MCP1812AT-028/LT | IC REG LINEAR 2.8V 300MA SC70-5 | |
| MCP1812AT-030/LT | IC REG LINEAR 3V 300MA SC70-5 | |
| MCP1812AT-033/LT | IC REG LINEAR 3.3V 300MA SC70-5 | |
| MCP1812AT-040/LT | IC REG LINEAR 4V 300MA SC70-5 | |
| MCP1812BT-010/LT | IC REG LINEAR 1V 300MA SC70-5 | |
| MCP1812BT-012/LT | IC REG LINEAR 1.2V 300MA SC70-5 | |
| MCP1812BT-018/LT | IC REG LINEAR 1.8V 300MA SC70-5 | |
| MCP1812BT-020/LT | IC REG LINEAR 2V 300MA SC70-5 | |
| MCP1812BT-025/LT | IC REG LINEAR 2.5V 300MA SC70-5 | |
| MCP1812BT-028/LT | IC REG LINEAR 2.8V 300MA SC70-5 | |
| MCP1812BT-030/LT | IC REG LINEAR 3V 300MA SC70-5 | |
| MCP1812BT-033/LT | IC REG LINEAR 3.3V 300MA SC70-5 | |
| MCP1812BT-040/LT | IC REG LINEAR 4V 300MA SC70-5 |
Product Description
Product Details
General Description
The TC1017 is a high-accuracy (typically ±0.5%) CMOS upgrade for bipolar low dropout regulators. It is offered in a SC-70 or SOT-23 package. The SC-70 package represents a 50% reduced footprint versus the popular SOT-23 package.Developed specifically for battery-powered systems, the TC1017’s CMOS construction consumes only 53 µA typical supply current over the entire 150 mA operating load range. This can be as much as 60 times less than the quiescent operating current consumed by bipolar LDOs.
Features
• Space-saving 5-Pin SC-70 and SOT-23 Packages• Extremely Low Operating Current for Longer Battery Life: 53 µA (typ.)
• Very Low Dropout Voltage
• Rated 150 mA Output Current
• Requires Only 1 µF Ceramic Output Capacitance
• High Output Voltage Accuracy: ±0.5% (typ.)
• 10 µsec (typ.) Wake-Up Time from SHDN
• Power-Saving Shutdown Mode: 0.05 µA (typ.)
• Overcurrent and Overtemperature Protection
• Pin Compatible Upgrade for Bipolar Regulators
Applications
• Cellular/GSM/PHS Phones• Battery Operated Systems
• Portable Computers
• Medical Instruments
• Electronic Games
• Pagers
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Microchip Technology |
| Product Category | Linear Voltage Regulators |
| Series | - |
| Packaging | Tape & Reel (TR) |
| Unit-Weight | 0.000705 oz |
| Mounting-Style | SMD/SMT |
| Package-Case | 5-TSSOP, SC-70-5, SOT-353 |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | SC-70-5 |
| Voltage-Input | Up to 6V |
| Number-of-Outputs | 1 Output |
| Current-Output | 150mA |
| Voltage-Output | 3.3V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 0.285V @ 150mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | - |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 3.3 V |
| Input-Voltage-MAX | 6 V |
| Output-Current | 150 mA |
| Input-Voltage-MIN | 2.7 V |
| Load-Regulation | 0.38 % |
| Voltage-Regulation-Accuracy | 0.5 % |
| Package-Case | SC-70-5 |
| Ib-Input-Bias-Current | 53 uA |
| Dropout-Voltage | 0.002 V at 100 uA |
| Dropout-Voltage-Max | 500 mV |
| Line-Regulation | 0.04 %/V |
| Power Supply Ripple Rejection (PSRR) | 58 dB |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 150mA SC-70-5
LDO Regulator Pos 3.3V 0.15A Automotive 5-Pin SC-70 T/R
LDO Voltage Regulators 150mA Adj LDO
