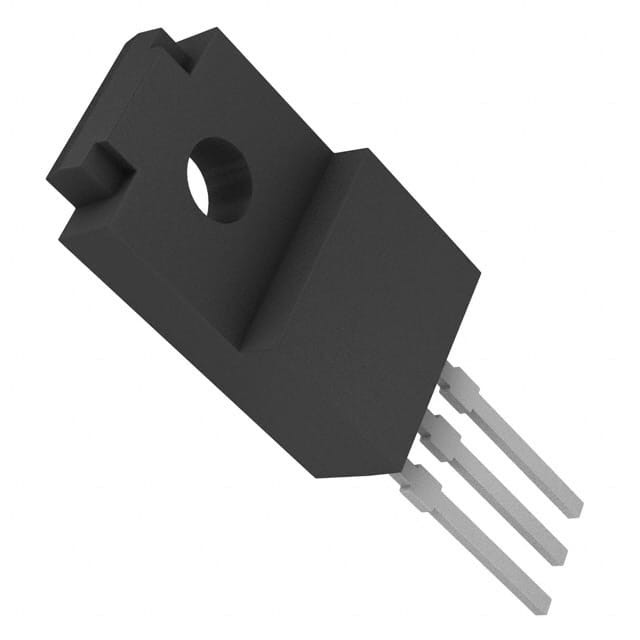

BA33BC0T IC REG LINEAR 3.3V 1A TO220FP Rohm Semiconductor

  • BA33BC0T IC REG LINEAR 3.3V 1A TO220FP Rohm Semiconductor
Brand Name Rohm Semiconductor
Model Number BA33BC0T
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Configuration Positive Output Type Fixed
Number Of Regulators 1 Voltage - Input (Max) 16V
Voltage - Output (Min/Fixed) 3.3V Voltage - Output (Max) -
Voltage Dropout (Max) - Current - Output 1A
Current - Quiescent (Iq) 0.5 MA Current - Supply (Max) 900 µA
PSRR - Control Features -
Protection Features Over Current, Over Temperature Operating Temperature -40°C ~ 105°C
Mounting Type Through Hole Package / Case TO-220-3 Full Pack
Supplier Device Package TO-220FP
You can tick the products you need and communicate with us in the message board.
Part Number Description
BA33BC0T IC REG LINEAR 3.3V 1A TO220FP
BA05CC0T IC REG LINEAR 5V 1A TO220FP
BA033CC0T IC REG LINEAR 3.3V 1A TO220FP
BA33DD0T IC REG LINEAR 3.3V 2A TO220FP
BA50DD0T IC REG LINEAR 5V 2A TO220FP
BA18BC0T IC REG LINEAR 1.8V 1A TO220FP
BA15DD0T IC REG LINEAR 1.5V 2A TO220FP-3
BA033T IC REG LINEAR 3.3V 1A TO220FP
BAJ2CC0T IC REG LINEAR 12V 1A TO220FP
BAJ2DD0T IC REG LINEAR 12V 2A TO220FP-3
BA30BC0T IC REG LINEAR 3V 1A TO220FP
BA15BC0T IC REG LINEAR 1.5V 1A TO220FP
BA90BC0T IC REG LINEAR 9V 1A TO220FP
BA60BC0T IC REG LINEAR 6V 1A TO220FP
BAJ5CC0T IC REG LINEAR 15V 1A TO220FP
BA33JC5T IC REG LINEAR 3.3V 1.5A TO220FP
BA07CC0T IC REG LINEAR 7V 1A TO220FP
BA08CC0T IC REG LINEAR 8V 1A TO220FP
BA90DD0T IC REG LINEAR 9V 2A TO220FP-3
BA30DD0T IC REG LINEAR 3V 2A TO220FP-3
BAJ6DD0T IC REG LINEAR 16V 2A TO220FP-3
BA17810T IC REG LINEAR 10V 1A TO220FP
BA25BC0T IC REG LINEAR 2.5V 1A TO220FP
BA70BC0T IC REG LINEAR 7V 1A TO220FP
BA50JC5T IC REG LINEAR 5V 1.5A TO220FP
BA17808T IC REG LINEAR 8V 1A TO220FP
BA05T IC REG LINEAR 5V 1A TO220FP
BA10T IC REG LINEAR 10V 1A TO220FP
BA80BC0T IC REG LINEAR 8V 1A TO220FP
BA90JC5T IC REG LINEAR 9V 1.5A TO220FP-3
BA15JC5T IC REG LIN 1.5V 1.5A TO220FP-3
BA18JC5T IC REG LIN 1.8V 1.5A TO220FP-3
BA25DD0T IC REG LINEAR 2.5V 2A TO220FP-3
BA18DD0T IC REG LINEAR 1.8V 2A TO220FP-3
BA178M15T IC REG LINEAR 15V 500MA TO220FP
BA17805T IC REG LINEAR 5V 1A TO220FP
BA50BC0T IC REG LINEAR 5V 1A TO220FP
BAJ0BC0T IC REG LINEAR 10V 1A TO220FP
BA03CC0T IC REG LINEAR 3V 1A TO220FP
BA09CC0T IC REG LINEAR 9V 1A TO220FP
BAJ0CC0T IC REG LINEAR 10V 1A TO220FP
BA17815T IC REG LINEAR 15V 1A TO220FP
BA17807T IC REG LINEAR 7V 1A TO220FP
BA17806T IC REG LINEAR 6V 1A TO220FP
BA17812T IC REG LINEAR 12V 1A TO220FP
BA178M05T IC REG LINEAR 5V 500MA TO220FP
BA178M10T IC REG LINEAR 10V 500MA TO220FP
BA178M12T IC REG LINEAR 12V 500MA TO220FP
BA178M07T IC REG LINEAR 7V 500MA TO220FP
BA17809T IC REG LINEAR 9V 1A TO220FP
BA17818T IC REG LINEAR 18V 1A TO220FP
BA17820T IC REG LINEAR 20V 1A TO220FP
BA178M20T IC REG LINEAR 20V 500MA TO220FP
BA178M06T IC REG LINEAR 6V 500MA TO220FP
BA178M09T IC REG LINEAR 9V 500MA TO220FP
BA178M18T IC REG LINEAR 18V 500MA TO220FP
BA15T IC REG LINEAR 15V 1A TO220FP
BA12T IC REG LINEAR 12V 1A TO220FP
BA08ST IC REG LINEAR 8V 1A TO220FP-3
BA60JC5T IC REG LINEAR 6V 1.5A TO220FP
BA80JC5T IC REG LINEAR 8V 1.5A TO220FP-3
BA30JC5T IC REG LINEAR 3V 1.5A TO220FP-3
BA17824T IC REG LINEAR 24V 1A TO220FP
BA08CC0WT-V5 IC REG LINEAR 8V 1A TO220FP-3
BA03T IC REG LINEAR 3V 1A TO220FP
BA07T IC REG LINEAR 7V 1A TO220FP
BA06CC0T IC REG LINEAR 6V 1A TO220FP
BA178M08T IC REG LINEAR 8V 500MA TO220FP
BA06T IC REG LINEAR 6V 1A TO220FP
BA63JC5T IC REG LIN 6.3V 1.5A TO220FP-3
Leave a Message
Part Number Description
Product Description

Product Details



General Description

The BAxxBC0 are low-saturation regulators with an output current of 1.0 A and an output voltage accuracy of ±2%. A broad output voltage range is offered, from 1.5V to 10V, and built-in overcurrent protection and thermal shutdown (TSD) circuits prevent damage due to short-circuiting and overloading, respectively.





Features

■ Output voltage accuracy: ±2% Broad output range available: 1.5 V -10 V (BAxxBC0 series)
■ Low saturation-voltage type with PNP output
■ Built-in overcurrent protection circuit
■ Built-in thermal shutdown circuit
■ Integrated shutdown switch (BAxxBC0WT, BAxxBC0WT-5, or BAxxBC0WFP Series, BA00BC0WCP-V5)





Applications

All electronic devices that use microcontrollers and logic circuits



Specifications

Attribute Attribute Value
Manufacturer Rohm Semiconductor
Product Category Linear Voltage Regulators
Series BA33BC0T
Packaging Tube
Unit-Weight 0.211644 oz
Mounting-Style Through Hole
Package-Case TO-220-3 Full Pack
Operating-Temperature -40°C ~ 105°C
Mounting-Type Through Hole
Output-Type Fixed
Supplier-Device-Package TO-220FP
Voltage-Input Up to 16V
Number-of-Outputs 1 Output
Current-Output 1A
Voltage-Output 3.3V
Regulator-Topology Positive Fixed
Voltage-Dropout-Typical 0.3V @ 200mA
Number-of-Regulators 1 Regulator
Current-Limit-Min -
Pd-Power-Dissipation 2 W
Maximum Operating Temperature + 105 C
Operating temperature range - 40 C
Output-Voltage 3.3 V
Input-Voltage-MAX 16 V
Output-Current 1 A
Input-Voltage-MIN + 4.3 V
Load-Regulation 75 mV
Voltage-Regulation-Accuracy 2 %
Package-Case TO-220-3
Reference-Voltage 1.28 V
Dropout-Voltage-Max 500 mV
Line-Regulation 35 mV

Descriptions

Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 1A TO-220FP
LDO Voltage Regulators IC LDO 1A 3.3V
