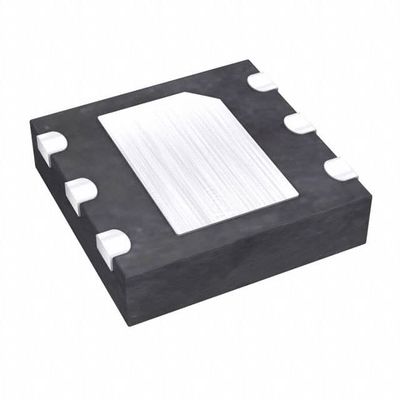

MAX15007AATT+T IC REG LINEAR 3.3V 50MA 6TDFN Analog Devices Inc./Maxim Integrated
| Brand Name | Analog Devices Inc./Maxim Integrated |
|---|---|
| Model Number | MAX15007AATT+T |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 40V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1V @ 50mA | Current - Output | 50mA |
| Current - Quiescent (Iq) | 18 µA | Current - Supply (Max) | 150 µA |
| PSRR | 66dB (100Hz) | Control Features | Enable |
| Protection Features | Over Temperature, Short Circuit | Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-TDFN (3x3) |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| MAX15007AATT+T | IC REG LINEAR 3.3V 50MA 6TDFN | |
| MAX15007BATT+ | IC REG LINEAR 5V 50MA 6TDFN | |
| MAX8880ETT+T | IC REG LIN POS ADJ 200MA 6TDFN | |
| MAX15007BATT+T | IC REG LINEAR 5V 50MA 6TDFN | |
| MAX15006AATT/V+T | IC REG LINEAR 3.3V 50MA 6TDFN | |
| MAX8530ETTG2+T | IC REG LINEAR 3V/1.8V 6TDFN | |
| MAX8530ETTP2+T | IC REG LINEAR 2.5V/1.8V 6TDFN | |
| MAX15007AATT+TW | IC REG LINEAR 3.3V 50MA 6TDFN | |
| MAX15006CATT+T | IC REG LINEAR POS ADJ 50MA 6TDFN | |
| MAX5085ATT+T | IC REG LIN POS ADJ 200MA 6TDFN | |
| MAX15006BATT+T | IC REG LINEAR 5V 50MA 6TDFN | |
| MAX15006AATT+T | IC REG LINEAR 3.3V 50MA 6TDFN | |
| MAX5084ATT+T | IC REG LIN POS ADJ 200MA 6TDFN | |
| MAX15007CATT+T | IC REG LINEAR POS ADJ 50MA 6TDFN | |
| MAX15006BATT/V+T | IC REG LINEAR 5V 50MA 6TDFN | |
| MAX15006BATT+ | IC REG LINEAR 5V 50MA 6TDFN | |
| MAX15006AATT+ | IC REG LINEAR 3.3V 50MA 6TDFN | |
| MAX15007BATT/V+T | IC REG LINEAR 5V 50MA 6TDFN | |
| MAX15006DATT/V+T | IC REG LINEAR 3.3V 60MA 6TDFN | |
| MAX1589AETT180+T | IC REG LINEAR 1.8V 500MA 6TDFN | |
| MAX1589AETT150+T | IC REG LINEAR 1.5V 500MA 6TDFN | |
| MAX1589AETT250+T | IC REG LINEAR 2.5V 500MA 6TDFN | |
| MAX15006CATT/V+T | IC REG LINEAR POS ADJ 50MA 6TDFN | |
| MAX15007CATT/V+T | IC REG LINEAR POS ADJ 50MA 6TDFN | |
| MAX15007BATT/V+ | IC REG LINEAR 5V 50MA 6TDFN | |
| MAX4835ETT18BD2V+T | IC REG LINEAR 1.8V 250MA 6TDFN | |
| MAX4835ETT18BD2+T | IC REG LINEAR 1.8V 250MA 6TDFN | |
| MAX4836ETT33C+T | IC REG LINEAR 3.3V 500MA 6TDFN | |
| MAX4836ETT30C+T | IC REG LINEAR 3V 500MA 6TDFN | |
| MAX15006BATT/V+ | IC REG LINEAR 5V 50MA 6TDFN | |
| MAX15006DATT/V+ | IC REG LINEAR 3.3V 60MA 6TDFN | |
| MAX15007CATT/V+ | IC REG LINEAR POS ADJ 50MA 6TDFN | |
| MAX1976AETT120+T | IC REG LINEAR 1.2V 300MA 6TDFN | |
| MAX1976AETT180+T | IC REG LINEAR 1.8V 300MA 6TDFN | |
| MAX15006CATT+ | IC REG LINEAR POS ADJ 50MA 6TDFN | |
| MAX15007AATT+ | IC REG LINEAR 3.3V 50MA 6TDFN | |
| MAX15007CATT+ | IC REG LINEAR POS ADJ 50MA 6TDFN | |
| MAX15006CATT/V+ | IC REG LINEAR POS ADJ 50MA 6TDFN | |
| MAX15006AATT/V+ | IC REG LINEAR 3.3V 50MA 6TDFN | |
| MAX1589ETT130+T | IC REG LINEAR 1.3V 500MA 6TDFN | |
| MAX1589ETT075+T | IC REG LINEAR 0.75V 500MA 6TDFN | |
| MAX1589ETT100+T | IC REG LINEAR 1V 500MA 6TDFN | |
| MAX1589ETT180+T | IC REG LINEAR 1.8V 500MA 6TDFN | |
| MAX1589ETT150+T | IC REG LINEAR 1.5V 500MA 6TDFN | |
| MAX1589ETT250+T | IC REG LINEAR 2.5V 500MA 6TDFN | |
| MAX1589ETT300+T | IC REG LINEAR 3V 500MA 6TDFN | |
| MAX8530ETTK2+T | IC REG LINEAR 2.8V/1.8V 6TDFN | |
| MAX4832ETT33C+T | IC REG LINEAR 3.3V 100MA 6TDFN | |
| MAX1589AETT075+T | IC REG LINEAR 0.75V 500MA 6TDFN | |
| MAX1589AETT130+T | IC REG LINEAR 1.3V 500MA 6TDFN | |
| MAX15007AATT/V+T | IC REG LINEAR 3.3V 50MA 6TDFN | |
| MAX1963AETT250+T | IC REG LINEAR 2.5V 300MA 6TDFN | |
| MAX1976AETT100+T | IC REG LINEAR 1V 300MA 6TDFN | |
| MAX1976AETT160+T | IC REG LINEAR 1.6V 300MA 6TDFN | |
| MAX1976AETT100+ | IC REG LINEAR 1V 300MA 6TDFN | |
| MAX1976AETT160+ | IC REG LINEAR 1.6V 300MA 6TDFN | |
| MAX8530ETTP2+TG05 | IC REG LINEAR 2.5V/1.8V 6TDFN | |
| MAX8530ETTP2+G05 | IC REG LINEAR 2.5V/1.8V 6TDFN | |
| MAX1963AETT150+T | IC REG LINEAR 1.5V 300MA 6TDFN | |
| MAX1976AETT130+T | IC REG LINEAR 1.3V 300MA 6TDFN | |
| MAX1976AETT180+ | IC REG LINEAR 1.8V 300MA 6TDFN | |
| MAX1976AETT250+T | IC REG LINEAR 2.5V 300MA 6TDFN | |
| MAX15007AATT/V+ | IC REG LINEAR 3.3V 50MA 6TDFN | |
| MAX1963AETT150+ | IC REG LINEAR 1.5V 300MA 6TDFN | |
| MAX1976AETT120+ | IC REG LINEAR 1.2V 300MA 6TDFN | |
| MAX1976AETT250+ | IC REG LINEAR 2.5V 300MA 6TDFN | |
| MAX1976AETT130+ | IC REG LINEAR 1.3V 300MA 6TDFN | |
| MAX1976AETT150+ | IC REG LINEAR 1.5V 300MA 6TDFN | |
| MAX1589AETT100+T | IC REG LINEAR 1V 500MA 6TDFN | |
| MAX4837ETT33BD3+T | IC REG LINEAR 3.3V 500MA 6TDFN | |
| MAX15007AATT+W | IC REG LINEAR 3.3V 50MA 6TDFN | |
| MAX1976AETT150+T | IC REG LINEAR 1.5V 300MA 6TDFN | |
| MAX1976AETT120/V+T | IC REG LINEAR 1.2V 300MA 6TDFN | |
| MAX1976AETT180/V+T | IC REG LINEAR 1.8V 300MA 6TDFN | |
| MAX8530ETTP2+ | IC REGULATOR LINEAR 6TDFN | |
| MAX1976AETT150/V+T | IC | |
| MAX1976AETT150/V+ | IC |
Product Description
Product Details
General Description
The MAX15006/MAX15007 ultra-low quiescent-current linear regulators are ideal for use in automotive and battery-operated systems. These devices operate from an input voltage of 4V to 40V, deliver up to 50mA of output current, and consume only 10μA of quiescent current at no load. The internal p-channel pass device keeps the quiescent current low even at full load. The MAX15007 consumes only 3μA current when in shutdown.The MAX15006A/MAX15007A have a fixed 3.3V output while the MAX15006B/MAX15007B have a fixed 5V output voltage. The MAX15006C/MAX15007C feature an adjustable output from 1.8V to 10V. The MAX15007 includes an enable input to turn the device on or off. All devices are short-circuit protected and include thermal shutdown.
Features
♦ Wide Operating Input Voltage Range (4V to 40V)♦ Guaranteed 50mA Output Current
♦ Low Quiescent Current
10µA (No Load) and 90µA (Full Load)
♦ Operates Through Cold-Crank Condition
♦ Withstands 45V Load Dump
♦ Low Dropout Voltage of 300mV (MAX15006B/MAX15007B)
♦ Stable Operation with Tiny 2.2µF Output Capacitor
♦ Enable Input (MAX15007)
♦ Preset 3.3V and 5.0V Output Voltages
♦ 1.8V to 10V Adjustable Output (MAX15006C/MAX15007C)
♦ Thermal and Short-Circuit Protection
♦ -40°C to +125°C Operating Temperature Range
♦ Thermally Enhanced 3mm x 3mm 6-Pin TDFN/
8-Pin SO Packages
Applications
AutomotiveTire-Pressure Monitoring
Industrial
Telecom
Networking
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Maxim Integrated |
| Product Category | Linear Voltage Regulators |
| Series | MAX15007A |
| Packaging | Alternate Packaging |
| Mounting-Style | SMD/SMT |
| Package-Case | 6-WDFN Exposed Pad |
| Operating-Temperature | -40°C ~ 125°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | 6-TDFN-EP (3x3) |
| Voltage-Input | 4 V ~ 40 V |
| Number-of-Outputs | 1 Output |
| Current-Output | 50mA |
| Voltage-Output | 3.3V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | - |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 80mA |
| Pd-Power-Dissipation | 1904 mW |
| Maximum Operating Temperature | + 125 C |
| Operating temperature range | - 40 C |
| Polarity | Positive |
| Output-Voltage | 3.3 V |
| Input-Voltage-MAX | 40 V |
| Output-Current | 50 mA |
| Input-Voltage-MIN | 4 V |
| Load-Regulation | 1.5 % |
| Part-#-Aliases | MAX15007A |
| Package-Case | TDFN-EP-6 |
| Line-Regulation | 0.25 % |
| Power Supply Ripple Rejection (PSRR) | 66 dB |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 50mA 6-TDFN-EP (3x3)
Linear Voltage Regulators 40V Ultra-Low Quiescent-Current
