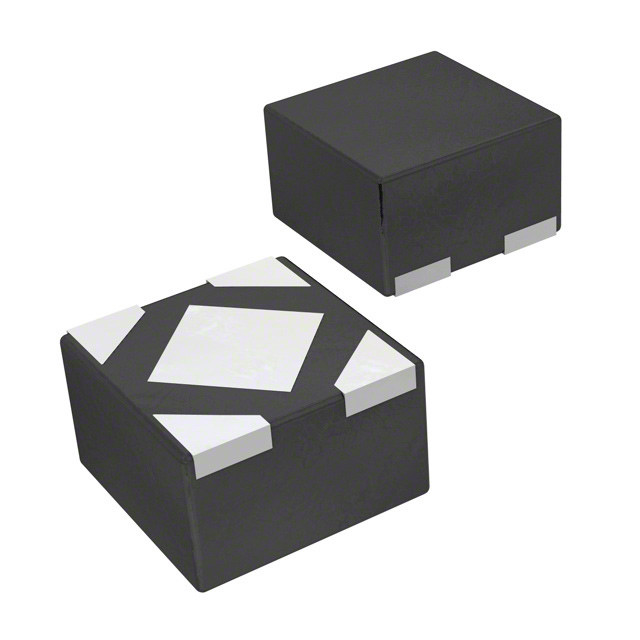

NCP114AMX330TCG IC REG LINEAR 3.3V 300MA 4UDFN onsemi
| Brand Name | onsemi |
|---|---|
| Model Number | NCP114AMX330TCG |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.2V @ 300mA | Current - Output | 300mA |
| Current - Quiescent (Iq) | 95 µA | Current - Supply (Max) | - |
| PSRR | 75dB (1kHz) | Control Features | Enable |
| Protection Features | Over Current, Over Temperature | Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Package / Case | 4-UDFN Exposed Pad |
| Supplier Device Package | 4-UDFN (1.0x1.0) |
