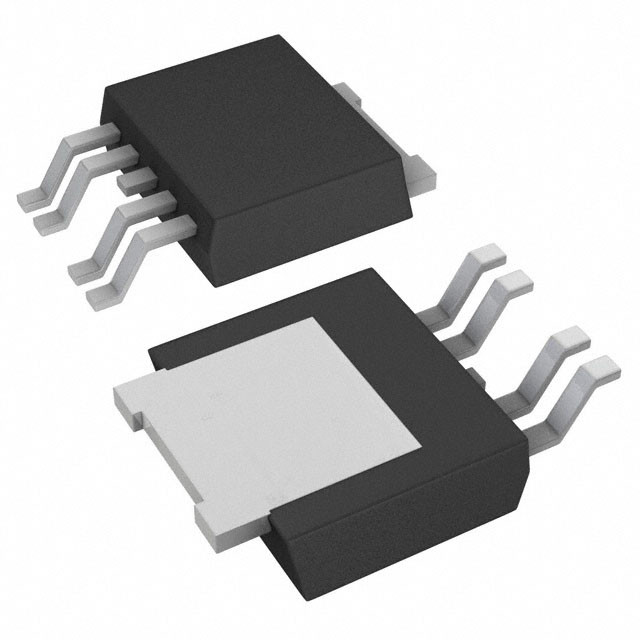

NCV4275ADT33RKG IC REG LINEAR 3.3V 450MA DPAK-5 onsemi
| Brand Name | onsemi |
|---|---|
| Model Number | NCV4275ADT33RKG |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Output Configuration | Positive | Output Type | Fixed |
|---|---|---|---|
| Number Of Regulators | 1 | Voltage - Input (Max) | 42V |
| Voltage - Output (Min/Fixed) | 3.3V | Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.17V @ 300mA | Current - Output | 450mA |
| Current - Quiescent (Iq) | 200 µA | Current - Supply (Max) | 35 MA |
| PSRR | 60dB (100Hz) | Control Features | Reset |
| Protection Features | Over Temperature, Reverse Polarity, Short Circuit | Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Package / Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| Supplier Device Package | DPAK-5 |
You can tick the products you need and communicate with us in the message board.
| Part Number | Description | |
|---|---|---|
| NCV4275ADT33RKG | IC REG LINEAR 3.3V 450MA DPAK-5 | |
| NCV8775CDT33RKG | IC REG LINEAR 3.3V 350MA DPAK-5 | |
| NCP5661DT18RKG | IC REG LINEAR 1.8V 1A DPAK-5 | |
| NCV4276BDTADJRKG | IC REG LIN POS ADJ 400MA DPAK-5 | |
| NCV4276CDT50RKG | IC REG LINEAR 5V 400MA DPAK-5 | |
| NCV4275ADT50RKG | IC REG LINEAR 5V 450MA DPAK-5 | |
| NCV5500DTADJRKG | IC REG LIN POS ADJ 500MA DPAK-5 | |
| NCV5500DT33RKG | IC REG LINEAR 3.3V 500MA DPAK-5 | |
| NCP5500DTADJRKG | IC REG LIN POS ADJ 500MA DPAK-5 | |
| NCV4276BDT50RKG | IC REG LINEAR 5V 400MA DPAK-5 | |
| NCV4276CDTADJRKG | IC REG LIN POS ADJ 400MA DPAK-5 | |
| NCV4276CDTADJT5G | IC REG LIN POS ADJ 400MA DPAK-5 | |
| NCV5500DT50RKG | IC REG LINEAR 5V 500MA DPAK-5 | |
| NCV4275CDT50RKG | IC REG LINEAR 5V 450MA DPAK-5 | |
| NCV8775CDT50RKG | IC REG LINEAR 5V 350MA DPAK-5 | |
| NCV5661DT12RKG | IC REG LINEAR 1.2V 1A DPAK-5 | |
| NCV5661DTADJRKG | IC REG LINEAR POS ADJ 1A DPAK-5 | |
| NCV5661DT33RKG | IC REG LINEAR 3.3V 1A DPAK-5 | |
| NCP5661DTADJRKG | IC REG LINEAR POS ADJ 1A DPAK-5 | |
| NCV8184DTRKG | IC REG LIN POS ADJ 70MA DPAK-5 | |
| NCV8182CDTRKG | IC REG LIN POS ADJ 200MA DPAK-5 | |
| NCV4276BDT33RKG | IC REG LINEAR 3.3V 400MA DPAK-5 | |
| NCV8772CDT504RKG | IC REG LINEAR LDO 5.0V D2PAK | |
| NCV4276CDT33RKG | IC REG LINEAR 3.3V 400MA DPAK-5 | |
| NCV4275ADT50RKG-IR01 | IC REG LINEAR 5V 450MA DPAK-5 | |
| NCV8760CDT333RKG | IC REG LINEAR LDO 3.3V DPAK-5 | |
| NCV8760CDT501RKG | IC REG LINEAR LDO 5V DPAK-5 | |
| NCV8760CDT332RKG | IC REG LINEAR LDO 3.3V DPAK-5 | |
| NCV4275CDT33RKG | IC REG LINEAR 3.3V 450MA DPAK-5 | |
| NCV5504DTRKG | IC REG LINEAR POS ADJ DPAK-5 | |
| NCV8675DT50RKG | IC REG LINEAR 5V 350MA DPAK-5 | |
| NCP5500DT33RKG | IC REG LINEAR 3.3V 500MA DPAK-5 | |
| NCP5500DT15RKG | IC REG LINEAR 1.5V 500MA DPAK-5 | |
| NCV8772CDT334RKG | IC REG LINEAR LDO 3.3V D2PAK | |
| NCV8772CDS334R4G | IC REG LINEAR LDO 3.3V D2PAK | |
| NCV4275DTRK | IC REG LINEAR 5V 450MA DPAK-5 | |
| NCV4276ADTADJRKG | IC REG LIN POS ADJ 400MA DPAK-5 | |
| NCV4276DT33RK | IC REG LINEAR 3.3V 400MA DPAK-5 | |
| NCV4276DT50RK | IC REG LINEAR 5V 400MA DPAK-5 | |
| NCV4276DTADJRKG | IC REG LIN POS ADJ 400MA DPAK-5 | |
| NCV8184DTRK | IC REG LIN POS ADJ 70MA DPAK-5 | |
| CS8182DTG | IC REG LIN POS ADJ 200MA DPAK-5 | |
| NCV86601DT50RKG | IC REG LINEAR 5V 150MA DPAK-5 | |
| NCV86603DT33RKG | IC REG LINEAR 3.3V 150MA DPAK-5 | |
| NCV86601DT33RKG | IC REG LINEAR 3.3V 150MA DPAK-5 | |
| NCV86602DT33RKG | IC REG LINEAR 3.3V 150MA DPAK-5 | |
| NCV86602DT50RKG | IC REG LINEAR 5V 150MA DPAK-5 | |
| NCV86603DT50RKG | IC REG LINEAR 5V 150MA DPAK-5 | |
| NCV86604DT33RKG | IC REG LINEAR 3.3V 150MA DPAK-5 | |
| NCV86604DT50RKG | IC REG LINEAR 5V 150MA DPAK-5 | |
| CS8182DTRKG | IC REG LIN POS ADJ 200MA DPAK-5 | |
| NCP5504DTRKG | IC REG LINEAR POS ADJ DPAK-5 | |
| NCP5661DT12RKG | IC REG LINEAR 1.2V 1A DPAK-5 | |
| NCP5661DT33RKG | IC REG LINEAR 3.3V 1A DPAK-5 | |
| NCV4275DTRKG | IC REG LINEAR 5V 450MA DPAK-5 | |
| NCV4276ADT33RKG | IC REG LINEAR 3.3V 400MA DPAK-5 | |
| NCV4276ADT50RKG | IC REG LINEAR 5V 400MA DPAK-5 | |
| NCV4276DT33RKG | IC REG LINEAR 3.3V 400MA DPAK-5 | |
| NCV4276DT50RKG | IC REG LINEAR 5V 400MA DPAK-5 | |
| NCV5500DT15RKG | IC REG LINEAR 1.5V 500MA DPAK-5 | |
| NCV86602BDT33RKG | IC REG LINEAR 3.3V 150MA DPAK-5 | |
| NCP5661DT25RKG | IC REG LINEAR 2.5V 1A DPAK-5 | |
| NCV86601BDT33RKG | IC REG LINEAR 3.3V 150MA DPAK-5 | |
| NCV86602BDT50RKG | IC REG LINEAR 5V 150MA DPAK-5 | |
| NCV86603BDT33RKG | IC REG LINEAR 3.3V 150MA DPAK-5 | |
| NCV86603BDT50RKG | IC REG LINEAR 5V 150MA DPAK-5 | |
| NCV86604BDT33RKG | IC REG LINEAR 3.3V 150MA DPAK-5 | |
| NCV86604BDT50RKG | IC REG LINEAR 5V 150MA DPAK-5 | |
| NCV8675DT33RKG | IC REG LINEAR 3.3V 350MA DPAK-5 | |
| NCV5661DT18RKG | IC REG LINEAR 1.8V 1A DPAK-5 | |
| NCV87722DT33RKG | IC REG LINEAR 3.3V 350MA DPAK-5 | |
| NCV87722DT50RKG | IC REG LINEAR 5V 350MA DPAK-5 | |
| NCV87706DT50RKG | IC REG LINEAR 5V 350MA DPAK-5 | |
| NCV4290DT50RKG | IC REG LINEAR 5V 450MA DPAK-5 | |
| NCP5500DT50RKG | IC REG LINEAR 5V 500MA DPAK-5 | |
| L78LR05D-FA-E | IC REG LINEAR 5V 150MA TP5HFA | |
| L78LR05DL-MA-E | IC REG LINEAR 5V 150MA TP5HFA | |
| L78LR05D-MA-E | IC REG LINEAR 5V 150MA TP5HFA | |
| L78LR05E-MA-E | IC REG LINEAR 5V 150MA TP5HFA | |
| NCV86601BDT50RKG | IC REG LINEAR 5V 150MA DPAK-5 |
Product Description
Product Details
The NCV4275A is an integrated low dropout regulator designed for use in harsh automotive environments. It includes wide operating temperature and input voltage ranges. The output is regulated at 5.0 V or 3.3 V and is rated to 450 mA of output current. It also provides a number of features, including overcurrent protection, overtemperature protection and a programmable microprocessor reset. The NCV4275A is available in the DPAK and D2PAK surface mount packages. The output is stable over a wide output capacitance and ESR range. The NCV4275A is pin for pin compatible with NCV4275.
Features
• 5.0 V and 3.3 V, ±2% Output Voltage Options• 450 mA Output Current
• Very Low Current Consumption
• Active Reset Output
• Reset Low Down to VQ = 1.0 V
• 500 mV (max) Dropout Voltage
• Fault Protection
♦ +45 V Peak Transient Voltage
♦ −42 V Reverse Voltage
♦ Short Circuit Protection
♦ Thermal Overload Protection
• AEC−Q100 Qualified
• Pin Compatible with NCV4275
• These are Pb−Free Devices
Applications
• Auto Body Electronics
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | onsemi |
| Product Category | Linear Voltage Regulators |
| Series | Automotive, AEC-Q100 |
| Product | LDO Regulators |
| Type | Low Dropout Voltage Regulator |
| Packaging | Tape & Reel (TR) |
| Mounting-Style | SMD/SMT |
| Package-Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| Operating-Temperature | -40°C ~ 150°C |
| Mounting-Type | Surface Mount |
| Output-Type | Fixed |
| Supplier-Device-Package | DPAK-5 |
| Voltage-Input | 4.4 V ~ 42 V |
| Number-of-Outputs | 1 Output |
| Current-Output | 450mA |
| Voltage-Output | 3.3V |
| Regulator-Topology | Positive Fixed |
| Voltage-Dropout-Typical | 1.1V @ 300mA |
| Number-of-Regulators | 1 Regulator |
| Current-Limit-Min | 450mA |
| Maximum Operating Temperature | + 150 C |
| Operating temperature range | - 40 C |
| Output-Voltage | 3.3 V |
| Operating-Supply-Current | 135 uA |
| Input-Voltage-MAX | 42 V |
| Output-Current | 450 mA |
| Input-Voltage-MIN | 4.4 V |
| Load-Regulation | 15 mV |
| Voltage-Regulation-Accuracy | 2 % |
| Package-Case | DPAK-5 |
| Ib-Input-Bias-Current | 135 uA |
| Quiescent-Current | 150 uA |
| Dropout-Voltage | 1.1 V at 300 mA |
| Dropout-Voltage-Max | 1.17 V at 300 mA |
| Line-Regulation | 5 mV |
| Power Supply Ripple Rejection (PSRR) | 60 dB |
Descriptions
Linear Voltage Regulator IC Positive Fixed 1 Output 3.3V 450mA DPAK-5
LDO Regulator Pos 3.3V 0.45A Automotive 5-Pin(4+Tab) DPAK T/R
LDO Voltage Regulators 450mA LDO 3.3V
