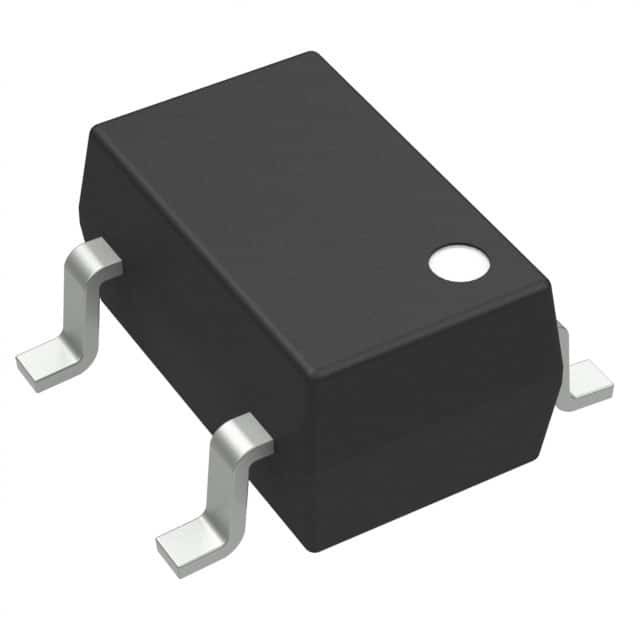

NCP603SN330T1G IC REG LINEAR 3.3V 300MA 5TSOP onsemi

  • NCP603SN330T1G IC REG LINEAR 3.3V 300MA 5TSOP onsemi
Brand Name onsemi
Model Number NCP603SN330T1G
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output Configuration Positive Output Type Fixed
Number Of Regulators 1 Voltage - Input (Max) 6V
Voltage - Output (Min/Fixed) 3.3V Voltage - Output (Max) -
Voltage Dropout (Max) 0.23V @ 300mA Current - Output 300mA
Current - Quiescent (Iq) 180 µA Current - Supply (Max) -
PSRR 62dB ~ 38dB (120Hz ~ 10kHz) Control Features Enable
Protection Features Over Current, Over Temperature, Transient Voltage Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount Package / Case SOT-23-5 Thin, TSOT-23-5
Supplier Device Package 5-TSOP
You can tick the products you need and communicate with us in the message board.
Part Number Description
NCP603SN330T1G IC REG LINEAR 3.3V 300MA 5TSOP
