Practical Mono Class D Amplifier Chip , IRS2092STRPBF Amplifier Integrated Circuit

Brand Name Infineon Technologies
Model Number IRS2092STRPBF
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Depop, Short-Circuit Protection Type Class D
Output Type 1-Channel (Mono) Max Output Power X Channels @ Load -
Voltage - Supply 10V ~ 18V Mounting Type Surface Mount
Operating Temperature -40°C ~ 125°C (TA) Supplier Device Package 16-SOIC
Package / Case 16-SOIC (0.154", 3.90mm Width)
High Light

Practical Class D Amplifier Chip

,

Mono Class D Amplifier Chip

,

IRS2092STRPBF Amplifier Integrated Circuit

Leave a Message
Product Description

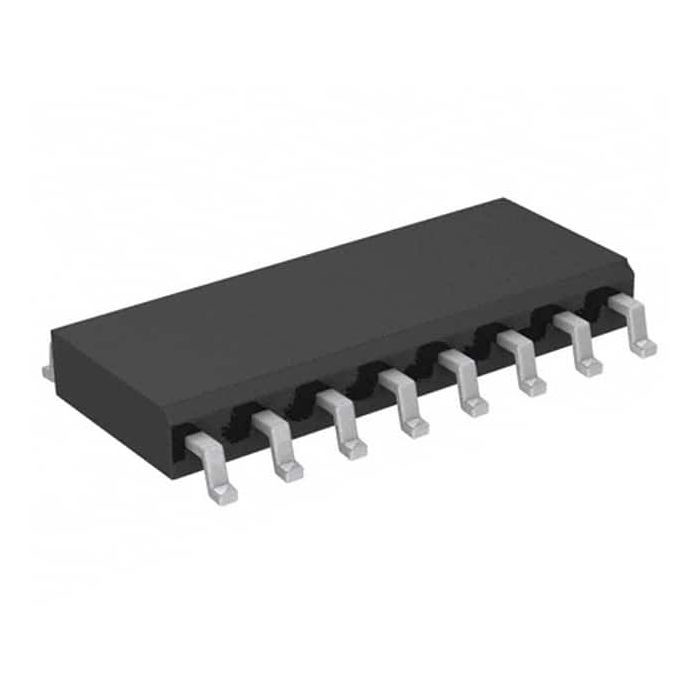

IRS2092STRPBF IC AMP CLASS D MONO 16SOIC Infineon Technologies

Product Details

Description

The IRS2092 is a high voltage, high performance Class D audio amplifier driver with PWM modulator and protection. In conjunction with two external MOSFET and a few external components, a complete Class D audio amplifier with protection can be realized. International Rectifier’s proprietary noise isolation technology allows high current gate drive stage and high speed low noise error amplifier reside on a single small silicon die. Open elements of PWM modulator section allow flexible PWM topology implementation.



Features

• Integrated analog input Class D audio amplifier driver in a small 16 pin package
• Floating inputs enable easy half bridge implementation
• Programmable bidirectional over-current protection with self-reset function
• Programmable preset deadtime for improved THD performances
• Start and stop click noise reduction
• High noise immunity
• ±100 V ratings deliver up to 500 W in output power
• Operates up to 800 kHz
• RoHS compliant



Typical Applications

• Home theater systems
• Mini component stereo systems
• Powered speaker systems
• General purpose audio power amplifiers

Specifications

Attribute Attribute Value
Manufacturer IR
Product Category Audio Amplifiers
Series -
Product Audio Amplifiers
Type Class D
Packaging Alternate Packaging
Unit-Weight 0.023492 oz
Mounting-Style SMD/SMT
Package-Case 16-SOIC (0.154", 3.90mm Width)
Operating-Temperature -40°C ~ 125°C (TA)
Mounting-Type Surface Mount
Output-Type 1-Channel (Mono)
Features Depop, Short-Circuit Protection
Number-of-Channels 1 Channel
Voltage-Supply 10 V ~ 18 V
Supplier-Device-Package 16-SOIC
Max-Output-Power-x-Channels-Load -
Class Class-D
Output-Power 500 W
Maximum Operating Temperature + 125 C
Operating temperature range - 40 C
Operating-Supply-Current 3 mA
Supply-Voltage-Max 18 V
Supply-Voltage-Min 10 V
Package-Case SOIC-16
Ib-Input-Bias-Current 40 nA
Vos-Input-Offset-Voltage 15 mV
THD-plus-Noise 0.01 %

Descriptions

Amplifier IC 1-Channel (Mono) Class D 16-SOIC
Driver 5.1V 1.2A 1-OUT High and Low Side Half Brdg Inv/Non-Inv 16-Pin SOIC N T/R
Audio Amplifiers 200V Dig Aud Drvr
