Practical 2 Chan Amplifier IC Chip TPA3110D2PWPR 15W 28HTSSOP Texas Instruments

Brand Name Texas Instruments
Model Number TPA3110D2PWPR
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Differential Inputs, Short-Circuit And Thermal Protection, Shutdown Type Class D
Output Type 2-Channel (Stereo) Max Output Power X Channels @ Load 15W X 2 @ 8Ohm
Voltage - Supply 8V ~ 26V Mounting Type Surface Mount
Operating Temperature -40°C ~ 85°C (TA) Supplier Device Package 28-HTSSOP
Package / Case 28-PowerTSSOP (0.173", 4.40mm Width)
High Light

Practical Amplifier IC Chip

,

2 Chan Amplifier IC Chip

,

TPA3110D2PWPR

Leave a Message
Product Description

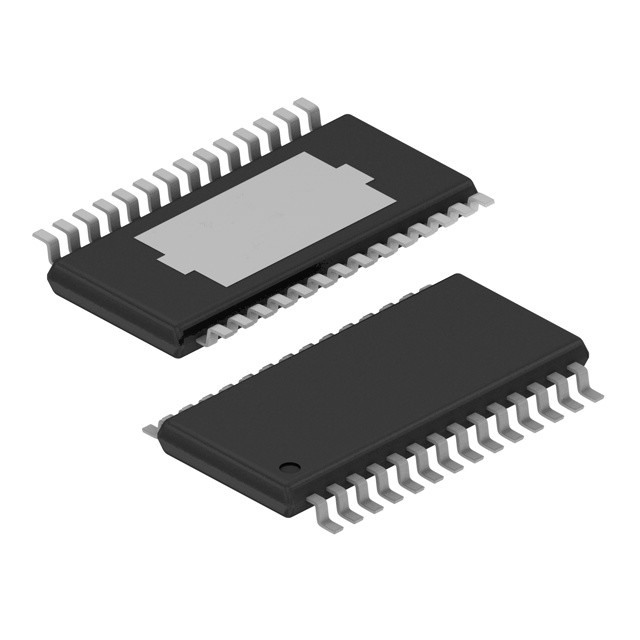

TPA3110D2PWPR IC AMP CLASS D STER 15W 28HTSSOP Texas Instruments

Product Details

Description

The TPA3110D2 is a 15-W (per channel) efficient, Class-D audio power amplifier for driving bridged-tied stereo speakers. Advanced
EMI Suppression Technology enables the use of inexpensive ferrite bead filters at the outputs while meeting EMC requirements. SpeakerGuardTM speaker protection circuitry includes an adjustable power limiter and a DC detection circuit. The adjustable power limiter allows the user to set a "virtual" voltage rail lower than the chip supply to limit the amount of current through the speaker. The DC detect circuit measures the frequency and amplitude of the PWM signal and shuts off the output stage if the input capacitors are damaged or shorts exist on the inputs.


Features

● 15-W/ch into an 8-Q Loads at 10% THD+N From a 16-V Supply
● 10-W/ch into 8-Q Loads at 10% THD+N From a 13-V Supply
● 30-W into a 4-Q Mono Load at 10% THD+N From a 16-V Supply
● 90% Efficient Class-D Operation Eliminates Need for Heat Sinks
● Wide Supply Voltage Range Allows Operation From8Vto26V
● Filter-Free Operation
● SpeakerGuard TM Speaker Protection Includes Adjustable Power Limiter Plus DC Protection
● Flow Through Pin Out Facilitates Easy Board Layout
● Robust Pin-to-Pin Short Circuit Protection and Thermal Protection With Auto Recovery Option
● Excellent THD+N / Pop-Free P erformance
● Four Selectable, Fixed Gain Settings
● Differential Inputs


Application

● Televisions
● Consumer Audio Equipment

Specifications

Attribute Attribute Value
Manufacturer Texas Instruments
Product Category Audio Amplifiers
Series SpeakerGuard™
Product Audio Amplifiers
Type Class D
Packaging Alternate Packaging
Unit-Weight 0.004233 oz
Mounting-Style SMD/SMT
Package-Case 28-TSSOP (0.173", 4.40mm Width) Exposed Pad
Input-Type Differential
Operating-Temperature -40°C ~ 85°C (TA)
Mounting-Type Surface Mount
Output-Type 2-Channel (Stereo)
Features Differential Inputs, Short-Circuit and Thermal Protection, Shutdown
Number-of-Channels 2 Channel
Voltage-Supply 8 V ~ 26 V
Supplier-Device-Package 28-HTSSOP
Max-Output-Power-x-Channels-Load 15W x 2 @ 8 Ohm
Gain 36 dB
Class Class-D
Output-Power 15 W
Maximum Operating Temperature + 85 C
Operating temperature range - 40 C
Software Development Kit TPA3110D2EVM
Part-#-Aliases HPA01070PWPR
Supply-Voltage-Max 26 V
Supply-Voltage-Min 8 V
Package-Case HTSSOP-28
THD-plus-Noise 0.1 %
Audio-Load-Impedance 8 Ohm
Supply-Type Single

Functional compatible component

Form,Package,Functional compatible component



Manufacturer Part# Description Manufacturer Compare
TPA3100D2RGZR
Consumer Circuits
20-W Stereo Class-D Audio Power Amplifier (TPA3100) 48-VQFN -40 to 85 Texas Instruments TPA3110D2PWPR vs TPA3100D2RGZR
TPA3110D2PWP
Consumer Circuits
15W Filter-Free Class D Stereo Amplifier with SpeakerGuard? (TPA3110) 28-HTSSOP -40 to 85 Texas Instruments TPA3110D2PWPR vs TPA3110D2PWP
TPA3110D2QPWPRQ1
Consumer Circuits
Automotive 15W Filter-Free Class D Stereo Amplifier with SpeakerGuardT 28-HTSSOP -40 to 125 Texas Instruments TPA3110D2PWPR vs TPA3110D2QPWPRQ1
TPA3107D2PAPR
Consumer Circuits
15-W Stereo Class-D Audio Power Amplifier (TPA3107) 64-HTQFP -40 to 85 Texas Instruments TPA3110D2PWPR vs TPA3107D2PAPR
TAS5602DCAR
Consumer Circuits
20-W Stereo Digital Amplifier Power Stage with Feedback 56-HTSSOP -40 to 85 Texas Instruments TPA3110D2PWPR vs TAS5602DCAR
TPA3100D2PHPR
Consumer Circuits
20-W Stereo Class-D Audio Power Amplifier (TPA3100) 48-HTQFP -40 to 85 Texas Instruments TPA3110D2PWPR vs TPA3100D2PHPR
TPA3100D2RGZT
Consumer Circuits
20-W Stereo Class-D Audio Power Amplifier (TPA3100) 48-VQFN -40 to 85 Texas Instruments TPA3110D2PWPR vs TPA3100D2RGZT
TPA3100D2PHPRG4
Consumer Circuits
20-W Stereo Class-D Audio Power Amplifier (TPA3100) 48-HTQFP -40 to 85 Texas Instruments TPA3110D2PWPR vs TPA3100D2PHPRG4
TPA3100D2PHP
Consumer Circuits
20-W Stereo Class-D Audio Power Amplifier (TPA3100) 48-HTQFP -40 to 85 Texas Instruments TPA3110D2PWPR vs TPA3100D2PHP
TPA3100D2IRGZRQ1
Consumer Circuits
Automotive Catalog 20-W Stereo Class-D Audio Power Amplifier 48-VQFN -40 to 85 Texas Instruments TPA3110D2PWPR vs TPA3100D2IRGZRQ1

Descriptions

Amplifier IC 2-Channel (Stereo) Class D 28-HTSSOP
Audio Amp Speaker 2-CH Stereo 15W Class-D 28-Pin HTSSOP EP T/R
Audio Amplifiers 15W Class D Stereo Amplifier
