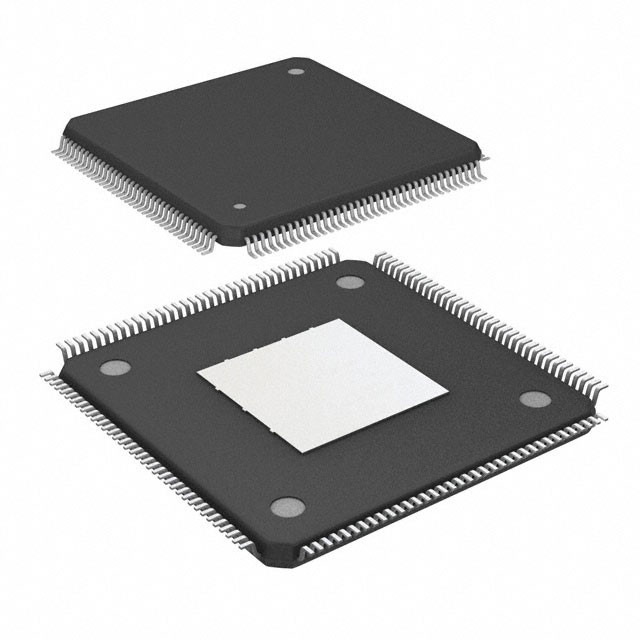

Industrial Medical Gate Array IC , EP4CE6E22C8N Integrated Circuit Component

Brand Name Intel
Model Number EP4CE6E22C8N
Minimum Order Quantity 1
Price Based on current price
Packaging Details anti-static bag & cardboard box
Delivery Time 3-5 work days
Payment Terms T/T
Supply Ability In stock

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Number Of LABs/CLBs 392 Number Of Logic Elements/Cells 6272
Total RAM Bits 276480 Number Of I/O 91
Number Of Gates - Voltage - Supply 1.15V ~ 1.25V
Mounting Type Surface Mount Operating Temperature 0°C ~ 85°C (TJ)
Package / Case 144-LQFP Exposed Pad Supplier Device Package 144-EQFP (20x20)
High Light

Industrial Gate Array IC

,

Medical Gate Array IC

,

EP4CE6E22C8N Integrated Circuit Component

Leave a Message
Product Description

EP4CE6E22C8N IC FPGA 91 I/O 144EQFP Intel

Product Details

Description

The EP4CE6E22C8N FPGA is a semiconductor device composed of a matrix of Configurable Logic Blocks (CLBs) interconnected by programmable interconnects. The user programs SRAM to determine these links. A CLB can be simple (AND, OR gates, for example) or complex (many gates, for example) (a block of RAM ). Even after the device has been soldered to a PCB, the FPGA allows for design changes.



Features

Supply Current

The device supply current requirement is the minimum current drawn from the power supply pins that can be used as a reference for power size planning. Use the

Excel-based early power estimator (EPE) to get the supply current estimates for your design because these currents vary greatly with the resources used.

DC Characteristics

This section lists the I/O leakage current, pin capacitance, on-chip termination (OCT) tolerance, and bus hold specifications for Cyclone IV devices.



Applications

  • Wireless Technology

  • Industrial Control

  • Internet of Things

  • Medical Equipment

  • Artificial Intelligence

  • 5G Technology

  • Cloud Computing

  • Consumer Electronics

Specifications

Attribute Attribute Value
Manufacturer Intel / Altera
Product Category FPGAs (Field Programmable Gate Array)
Series Cyclone® IV E
Product Cyclone IV E
Packaging Tray
Unit-Weight 0.193407 oz
Mounting-Style SMD/SMT
Tradename Cyclone IV
Package-Case 144-LQFP Exposed Pad
Operating-Temperature 0°C ~ 85°C (TJ)
Mounting-Type Surface Mount
Voltage-Supply 1.15 V ~ 1.25 V
Supplier-Device-Package 144-EQFP (20x20)
IC Number of Gates -
Number-of-I-O 91 I/O
Number-of-LABs-CLBs 392
Number-of-Logic-Elements-Cells 6272
Total-RAM-Bits 276480 Bits
Maximum Operating Temperature + 70 C
Operating temperature range 0 C
Operating-Supply-Voltage 1 V to 1.2 V
Maximum-Operating-Frequency 200 MHz
Package-Case QFP-144
Input/output 91 I/O
Number-of-Logic-Array-Blocks-LABs 392
Number-of-Logic-Elements 6272 Logic Elements
Total-Memory 270 kbit

Descriptions

IC FPGA 91 I/O 144EQFP
FPGA Cyclone IV E Family 6272 Cells 60nm Technology 1.2V 144-Pin EQFP EP
FPGA - Field Programmable Gate Array FPGA - Cyclone IV E 392 LABs 91 IOs
