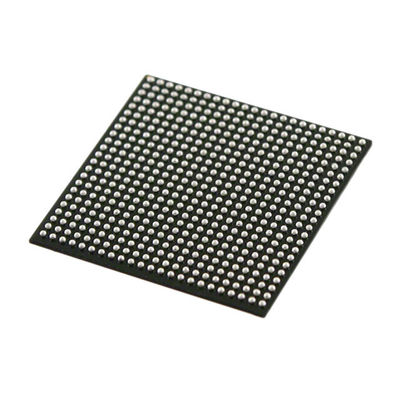

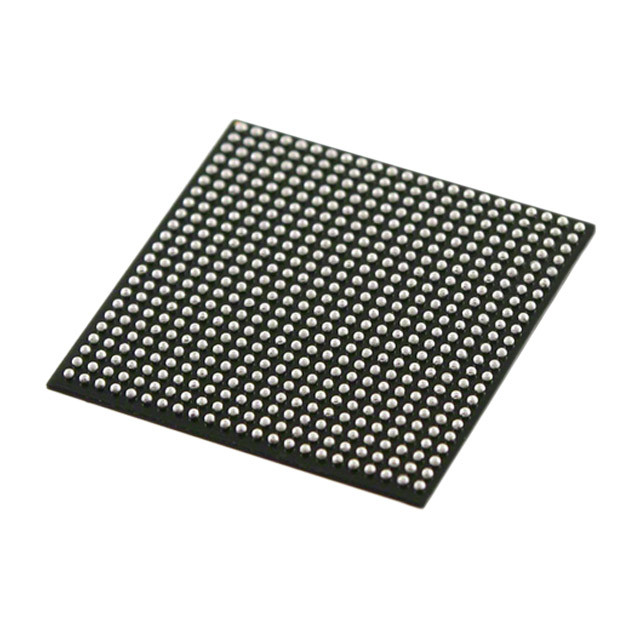

Durable 800MHz FPGA Integrated Circuit 5CEFA9F23I7N 224 I/O 484FBGA Intel
| Brand Name | Intel |
|---|---|
| Model Number | 5CEFA9F23I7N |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of LABs/CLBs | 113560 | Number Of Logic Elements/Cells | 301000 |
|---|---|---|---|
| Total RAM Bits | 14251008 | Number Of I/O | 224 |
| Number Of Gates | - | Voltage - Supply | 1.07V ~ 1.13V |
| Mounting Type | Surface Mount | Operating Temperature | -40°C ~ 100°C (TJ) |
| Package / Case | 484-BGA | Supplier Device Package | 484-FBGA (23x23) |
| Highlight | Durable FPGA Integrated Circuit,800MHz FPGA Integrated Circuit,5CEFA9F23I7N |
||
Product Description
5CEFA9F23I7N IC FPGA 224 I/O 484FBGA Intel
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Intel / Altera |
| Product Category | IC Chips |
| Series | Cyclone® V E |
| Product | Cyclone V E |
| Packaging | Tray |
| Mounting-Style | SMD/SMT |
| Tradename | Cyclone V FPGA |
| Package-Case | 484-BGA |
| Operating-Temperature | -40°C ~ 100°C (TJ) |
| Mounting-Type | Surface Mount |
| Voltage-Supply | 1.07 V ~ 1.13 V |
| Supplier-Device-Package | 484-FBGA (23x23) |
| IC Number of Gates | - |
| Number-of-I-O | 224 I/O |
| Number-of-LABs-CLBs | 113560 |
| Number-of-Logic-Elements-Cells | 301000 |
| Total-RAM-Bits | 14251008 Bits |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Voltage | 1.1 V |
| Maximum-Operating-Frequency | 800 MHz |
| Package-Case | FBGA-484 |
| Input/output | 224 I/O |
| Number-of-Logic-Array-Blocks-LABs | 113560 |
| Number-of-Logic-Elements | 301000 Logic Elements |
| Total-Memory | 13917 kbit |
| Embedded-Block-RAM-EBR | 1717 kbit |
Descriptions
IC FPGA 224 I/O 484FBGA
FPGA Cyclone V E Family 301000 Cells 28nm Technology 1.1V 484-Pin FBGA
FPGA - Field Programmable Gate Array FPGA - Cyclone V E 11356 LABs 224 IOs
