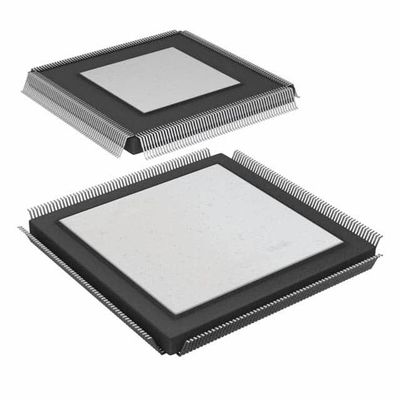

ADSP-21060LCW-160 Integrated Circuit IC DSP Controller 32BIT 240CQFP
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | ADSP-21060LCW-160 |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Floating Point | Interface | Host Interface, Link Port, Serial Port |
|---|---|---|---|
| Clock Rate | 40MHz | Non-Volatile Memory | External |
| On-Chip RAM | 512kB | Voltage - I/O | 3.30V |
| Voltage - Core | 3.30V | Operating Temperature | -40°C ~ 100°C (TC) |
| Mounting Type | Surface Mount | Package / Case | 240-BFCQFP Exposed Pad |
| Supplier Device Package | 240-CQFP (32x32) | ||
| High Light | Integrated Circuit IC 32BIT,Integrated Circuit IC 240CQFP,ADSP-21060LCW-160 |
||
Product Description
ADSP-21060LCW-160 IC DSP CONTROLLER 32BIT 240CQFP Analog Devices Inc.
Product Details
Description
The ADSP-2106x SHARC®—Super Harvard Architecture Computer—is a 32-bit signal processing microcomputer that offers high levels of DSP performance. The ADSP-2106x builds on the ADSP-21000 DSP core to form a complete system-on-a-chip, adding a dual-ported on-chip SRAM and integrated I/O peripherals supported by a dedicated I/O bus.
Features
40MHz (25ns instruction rate) SISD SHARC Core
120MFLOPs peak performance
Code compatible with all SHARC processors
Supports IEEE-compatible 32-bit floating-point, 40-bit floating point, and 32-bit fixed point math
Glueless connection for scalable DSP multiprocessing
4Mbits of on-chip dual-ported SRAM
Six Link Ports for point to point connectivity and array multiprocessing
Two synchronous serial ports with independent transmit and receive functions
10 Channel DMA controller
Host Processor Interface
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | DSP (Digital Signal Processors) |
| Series | SHARC® |
| Type | Floating Point |
| Packaging | Tray |
| Package-Case | 240-BFCQFP Exposed Pad |
| Operating-Temperature | -40°C ~ 100°C (TC) |
| Mounting-Type | Surface Mount |
| Interface | Host Interface, Link Port, Serial Port |
| Supplier-Device-Package | 240-CQFP (32x32) |
| Clock-Rate | 40MHz |
| Non-Volatile-Memory | External |
| On-Chip-RAM | 512kB |
| I/O Voltage | 3.30V |
| Voltage-Core | 3.30V |
| Mfr | Analog Devices Inc． |
| Package | Tray |
| Product-Status | Active |
| Interface | Host Interface Link Port Serial Port |
| Voltage-I-O | 3．30V |
| Package-Case | 240-BFCQFP Exposed Pad |
| Base-Product-Number | ADSP-21060 |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| ADSP-21060LCWZ-133 Microcontrollers and Processors |
IC 48-BIT, 33.3 MHz, OTHER DSP, CQFP240, LEAD FREE, THERMALLY ENHANCED, METRIC, HEAT SINK, CERAMIC, QFP-240, Digital Signal Processor | Analog Devices Inc | ADSP-21060LCW-160 vs ADSP-21060LCWZ-133 |
| ADSP-21060LCWZ-160 Microcontrollers and Processors |
IC 48-BIT, 40 MHz, OTHER DSP, CQFP240, THERMALLY ENHANCED, METRIC, HEAT SINK, CERAMIC, QFP-240, Digital Signal Processor | Analog Devices Inc | ADSP-21060LCW-160 vs ADSP-21060LCWZ-160 |
| ADSP-21060LCW-133 Microcontrollers and Processors |
48-BIT, 33.3 MHz, OTHER DSP, CQFP240, THERMALLY ENHANCED, METRIC, HEAT SINK, CERAMIC, QFP-240 | Rochester Electronics LLC | ADSP-21060LCW-160 vs ADSP-21060LCW-133 |
Descriptions
IC DSP CONTROLLER 32BIT 240CQFP
DSP Floating-Point 32bit 40MHz 40MIPS 240-Pin CQFP Tray
