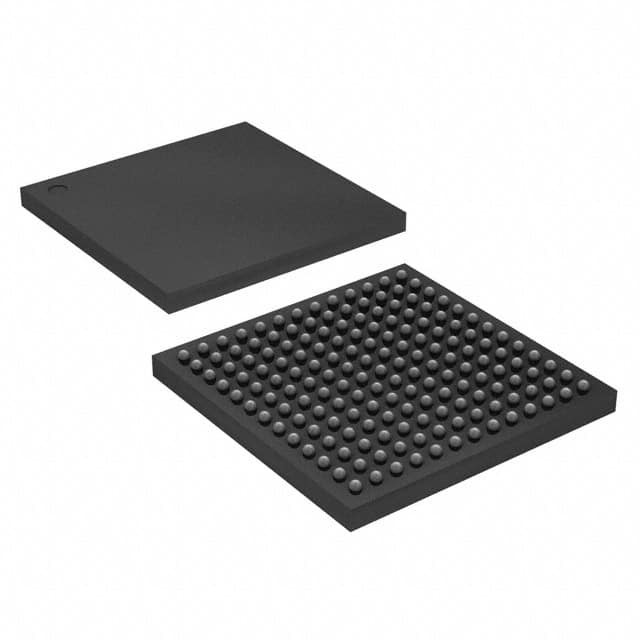

454MHZ Integrated Circuit Microprocessor , I.MX23 169MAPBGA MCIMX233DJM4C
| Brand Name | N✖P USA Inc. |
|---|---|
| Model Number | MCIMX233DJM4C |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Core Processor | ARM926EJ-S | Number Of Cores/Bus Width | 1 Core, 32-Bit |
|---|---|---|---|
| Speed | 454MHz | Co-Processors/DSP | Data; DCP |
| RAM Controllers | DRAM | Graphics Acceleration | No |
| Display & Interface Controllers | LCD, Touchscreen | Ethernet | - |
| SATA | - | USB | USB 2.0 + PHY (1) |
| Voltage - I/O | 2.0V, 2.5V, 2.7V, 3.0V, 3.3V | Operating Temperature | -10°C ~ 70°C (TA) |
| Security Features | Cryptography, Hardware ID | Mounting Type | Surface Mount |
| Package / Case | 169-LFBGA | Supplier Device Package | 169-MAPBGA (11x11) |
| High Light | 454MHZ Integrated Circuit Microprocessor,169MAPBGA Integrated Circuit Microprocessor,MCIMX233DJM4C |
||
Product Description
MCIMX233DJM4C IC MPU I.MX23 454MHZ 169MAPBGA N✖P USA Inc.
Product Details
Introduction
The i.MX25 multimedia applications processor has the right mix of high performance, low power, and integration to support the growing needs of the industrial and general embedded markets.At the core of the i.MX25 is Freescales fast, proven, power-efficient implementation of the ARM926EJ-S core, with speeds of up to 400 MHz. The i.MX25 includes support for up to 133 MHz DDR2 memory, integrated 10/100 Ethernet MAC, and two on-chip USB PHYs. The device is suitable for a wide range of applications, including the following:
• Graphical remote controls
• Human Machine Interface (HMI)• Residential and commercial control panels
• Residential gateway (smart metering)
• Handheld scanners and printers
• Electronic point-of-sale terminals
• Patient-monitoring devices
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Freescale / N✖P |
| Product Category | Microprocessors |
| Series | i.MX23 |
| Packaging | Tray Alternate Packaging |
| Unit-Weight | 0.009891 oz |
| Mounting-Style | SMD/SMT |
| Tradename | i.MX |
| Package-Case | 169-LFBGA |
| Operating-Temperature | -10°C ~ 70°C (TA) |
| Supplier-Device-Package | 169-MAPBGA (11x11) |
| Memory-Type | Flash RAM ROM |
| I/O Voltage | 2.0V, 2.5V, 2.7V, 3.0V, 3.3V |
| Speed | 454MHz |
| Core-Processor | ARM926EJ-S |
| Bus width | 1 Core, 32-Bit |
| Co-Processors-DSP | Data; DCP |
| RAM-Controllers | DRAM |
| Graphics-Acceleration | No |
| Display-&-Interface-Controllers | LCD, Touchscreen |
| Ethernet | - |
| SATA | - |
| USB | USB 2.0 + PHY (1) |
| Security-Features | Cryptography, Hardware ID |
| Bus width | 1 Core |
| Maximum Operating Temperature | + 70 C |
| Operating temperature range | - 10 C |
| Operating-Supply-Voltage | 1 V to 1.55 V |
| Application | Multimedia Applications |
| Interface-Type | I2C UART USB |
| Core | ARM926EJ-S |
| Processor-Series | i.MX233 |
| Data-Bus-Width | 32 bit |
| Package-Case | BGA-169 |
| Maximum-Clock-Frequency | 454 MHz |
| L1-Cache-Instruction-Memory | 16 kB |
| L1-Cache-Data-Memory | 16 kB |
| Data-RAM-Size | 32 kB |
| Data-ROM-Size | 64 kB |
| I-O-Voltage | 2.9 V to 3.575 V |
| Number-of-Timers-Counters | 4 x 32 bit |
| Watchdog-Timers | Watchdog Timer |
Descriptions
ARM926EJ-S Microprocessor IC i.MX23 1 Core, 32-Bit 454MHz 169-MAPBGA (11x11)
SOC i.MX233 ARM926EJ-S 0.09um 169-Pin LFBGA Tray
Processors - Application Specialized i.MX233 Commercial
