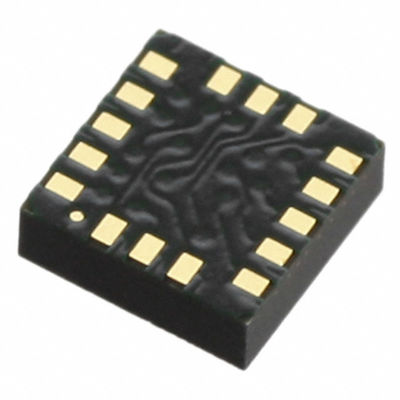

0.5Hz-625Hz Integrated Circuit Sensor LIS3DHTR ACCEL 2-16G I2C/SPI 16LGA
| Brand Name | STMicroelectronics |
|---|---|
| Model Number | LIS3DHTR |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Adjustable Bandwidth, Selectable Scale, Temperature Sensor | Type | Digital |
|---|---|---|---|
| Axis | X, Y, Z | Acceleration Range | ±2g, 4g, 8g, 16g |
| Sensitivity (LSB/g) | 1000 (±2g) ~ 83 (±16g) | Sensitivity (mV/g) | - |
| Bandwidth | 0.5Hz ~ 625Hz | Output Type | I²C, SPI |
| Voltage - Supply | 1.71V ~ 3.6V | Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Package / Case | 16-VFLGA |
| Supplier Device Package | 16-LGA (3x3) | ||
| Highlight | 0.5HzIntegrated Circuit Sensor,625Hz Integrated Circuit Sensor,LIS3DHTR |
||
Product Description
LIS3DHTR ACCEL 2-16G I2C/SPI 16LGA STMicroelectronics
Product Details
Description
The LIS3DH is an ultra low-power high performance three axes linear accelerometer belonging to the “nano” family, with digital I2C/SPI serial interface standard output. The device features ultra low-power operational modes that allow advanced power saving and smart embedded functions.
Features
■ Wide supply voltage, 1.71 V to 3.6 V
■ Independent IOs supply (1.8 V) and supply voltage compatible
■ Ultra low-power mode consumption down to 2 µA
■ ±2g/±4g/±8g/±16gdynamically selectable full scale
■ I2C/SPI digital output interface
■ 16 bit data output
■ 2 independent programmable interrupt generators for free-fall and motion detection
■ 6D/4D orientation detection
■ Free-fall detection
■ Motion detection
■ Embedded temperature sensor
■ Embedded self-test
■ Embedded 96 levels of 16 bit data output FIFO
■ 10000 ghigh shock survivability
■ ECOPACK® RoHS and “Green” compliant
Applications
-
Motion activated functions
-
Free-fall detection
-
Click/double-click recognition
-
Intelligent power saving for handheld devices
-
Pedometers
-
Display orientation
-
Gaming and virtual reality input devices
-
Impact recognition and logging
-
Vibration monitoring and compensation
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | STMicroelectronics |
| Product Category | Accelerometers |
| Series | LIS3DH |
| Type | Digital |
| Packaging | Reel |
| Mounting-Style | SMD/SMT |
| Package-Case | 16-VFLGA |
| Operating-Temperature | -40°C ~ 85°C (TA) |
| Mounting-Type | Surface Mount |
| Output-Type | I2C, SPI |
| Sensitivity | 1 mg/digit to 12 mg/digit |
| Features | Adjustable Bandwidth, Selectable Scale, Temperature Sensor |
| Voltage-Supply | 1.71 V ~ 3.6 V |
| Supplier-Device-Package | 16-LGA (3x3) |
| Resolution | 16 bit |
| Sensor-Type | 3-axis |
| Axis | X, Y, Z |
| Acceleration-Range | ±2g, 4g, 8g, 16g |
| Sensitivity-LSB-g | 1000 (±2g) ~ 83 (±16g) |
| Sensitivity-mV-g | - |
| Bandwidth | 0.5Hz ~ 625Hz |
| Maximum Operating Temperature | + 85 C |
| Operating temperature range | - 40 C |
| Operating-Supply-Current | 6 uA to 11 uA |
| Interface-Type | I2C SPI |
| Sensing-Axis | X Y Z |
| Acceleration | 16 g |
| Supply-Voltage-Max | 3.6 VDC |
| Supply-Voltage-Min | 1.71 VDC |
Functional compatible component
Form,Package,Functional compatible component
| Manufacturer Part# | Description | Manufacturer | Compare |
| LIS3DH Signal Circuits |
3-axis MEMS accelerometer, ultra-low-power, ±2g/±4g/±8g/±16g full scale, high-speed I2C/SPI digital output, embedded FIFO, high-performance acceleration sensor, LLGA 16 3x3x1.0 package | STMicroelectronics | LIS3DHTR vs LIS3DH |
| MAX21000+T Signal Circuits |
Analog Circuit, 1 Func, BICMOS, PQCC16 | Maxim Integrated Products | LIS3DHTR vs MAX21000+T |
| MAX21000+ Signal Circuits |
Analog Circuit, 1 Func, BICMOS, PQCC16 | Maxim Integrated Products | LIS3DHTR vs MAX21000+ |
Descriptions
Accelerometer X, Y, Z Axis ±2g, 4g, 8g, 16g 0.5Hz ~ 625Hz 16-LGA (3x3)
Accelerometers MEMS Ultra Low-Power 3-Axes "Nano"
