Industrial Integrated Temperature Sensor , ADXRS649BBGZ GYROSCOPE YAW RATE 32CBGA
| Brand Name | Analog Devices Inc. |
|---|---|
| Model Number | ADXRS649BBGZ |
| Minimum Order Quantity | 1 |
| Price | Based on current price |
| Packaging Details | anti-static bag & cardboard box |
| Delivery Time | 3-5 work days |
| Payment Terms | T/T |
| Supply Ability | In stock |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Temperature Sensor | Type | Analog |
|---|---|---|---|
| Axis | Z (Yaw) | Range °/s | ±20000 |
| Sensitivity (LSB/(°/s)) | - | Sensitivity (mV/°/s) | 0.1 |
| Bandwidth | 2kHz | Output Type | Analog Voltage |
| Voltage - Supply | 4.75V ~ 5.25V | Current - Supply | 3.5 MA |
| Operating Temperature | -40°C ~ 105°C (TA) | Package / Case | 32-BFCBGA |
| High Light | Industrial Integrated Temperature Sensor,3.5mA Integrated Temperature Sensor,ADXRS649BBGZ |
||
Product Description

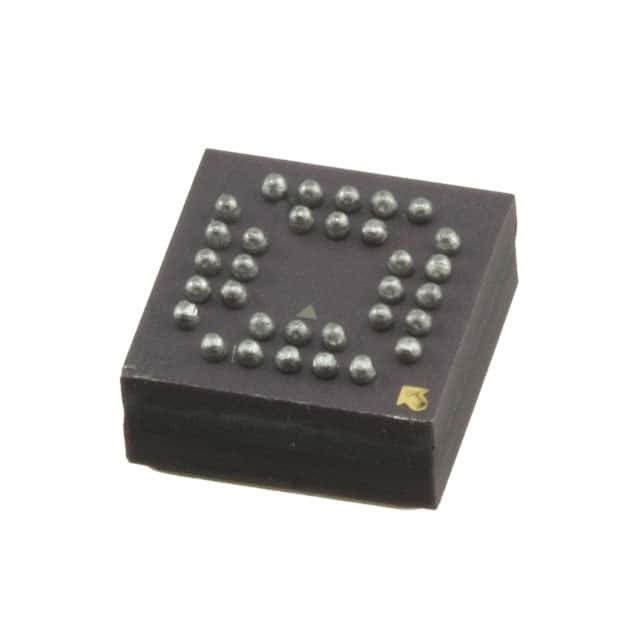

ADXRS649BBGZ IC GYROSCOPE YAW RATE 32CBGA Analog Devices Inc.
Specifications
| Attribute | Attribute Value |
|---|---|
| Manufacturer | Analog Devices |
| Product Category | Gyroscopes |
| Series | - |
| Package-Case | 32-BFCBGA |
| Operating-Temperature | -40°C ~ 105°C |
| Output-Type | Analog |
| Sensitivity | 0.1mV/°/s |
| Voltage-Supply | 4.75 V ~ 5.25 V |
| Supplier-Device-Package | 32-CBGA (7x7) |
| Current-Supply | 3.5mA |
| Range-°-s | ±20000°/s |
| Typical-Bandwidth | 2kHz |
Descriptions
The ADXRS64x family of low noise, vibration rejecting yaw rate gyroscopes are drop-in performance upgrades to existing designs using the ADXRS62x family. The ADXRS649 is pin- and package-compatible to the ADXRS62x family and offers the highest rate of rotation sensing available with ±20,000°/sec and fast 3 millisecond (ms) startup for quick power cycling. This measurement range is extendable to ±50,000°/sec with the addition of an external resistor. It is ideally suited for applications where exceptionally wide measurement ranges are needed.
Applications
- Sports equipment
- Industrial applications
- Form stabilization
- High speed tachometry
GYROSCOPE, 20K DEG/SEC, 32CBGA
element14 APAC
element14 APAC
MEMS Gyroscopes Single Axis ±20,000°/sec 32-Pin CBGA Tray
Chip One Stop Japan
Chip One Stop Japan
IC GYROSCOPE YAW RATE 32CBGA
LTL Group
LTL Group
MEMS Gyroscopes Single Axis ±20,000°/sec 32-Pin CBGA Tray
Chip One Stop Global
Chip One Stop Global
MEMS Gyroscopes Single Axis ±20,000°/sec 32-Pin CBGA Tray
Verical
Verical
Complete Angular Rate Sensor 32-Pin CBGA Tray
Avnet Europe
Avnet Europe
MISCELLANEOUS SENSOR
Richardson RFPD
Richardson RFPD
Complete Angular Rate Sensor 32-Pin CBGA
RS Components
RS Components
GYROSCOPE, 20K DEG/SEC, 32CBGA; No. of Axes:1; No. of Pins:32; Supply Voltage Range:4.75V to 5.25V; Operating Temperature Range:-40°C to +105°C; SVHC:No SVHC (18-Jun-2012)
Farnell
Farnell
IC, GYROSCOPE SENSOR, BGA-32; No. of Axes:1; Sensor Case Style:BGA; No. of Pins:32; Supply Voltage Range:4.75V to 5.25V; Operating Temperature Range:-40°C to +105°C; Package / Case:32-BGA
